Anti-Lock Brake System: Description

The Anti-Lock Brake System (ABS) control module senses reductions in front and rear wheel speed and modulates hydraulic pressure to the brakes to prevent wheel lock-up. The ABS consists of a hydraulic unit, 4 wheel speed sensors and sensor rotors, valve relay, motor relay, pump motor, "G" sensor (4WD only) and ABS control module. See Fig 1 . An ABS warning light is located on the instrument cluster.

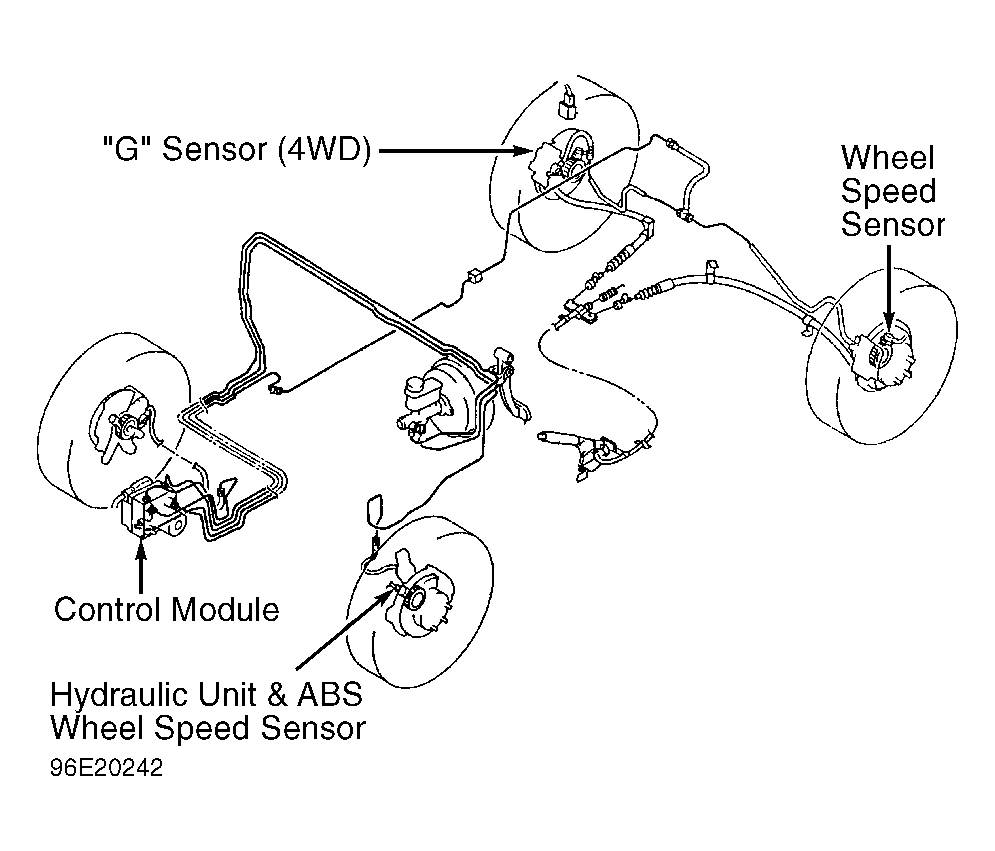

Fig 1: Locating ABS Components

Courtesy of MAZDA MOTORS CORP.
