Pin Voltage Charts

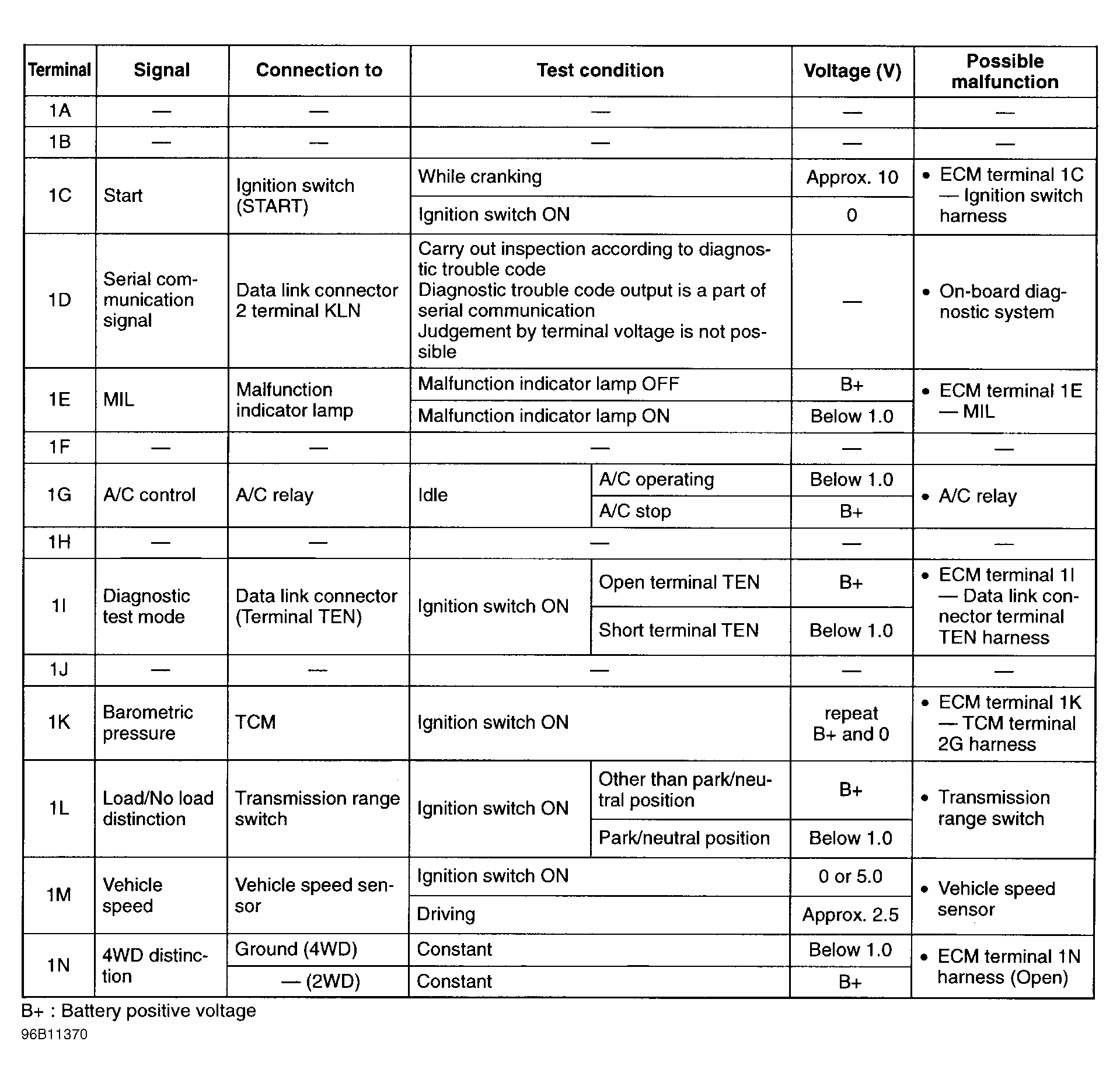

Fig 1: ECM Pin Voltage Chart (1 Of 5)

G96B11370

Courtesy of MAZDA MOTORS CORP.

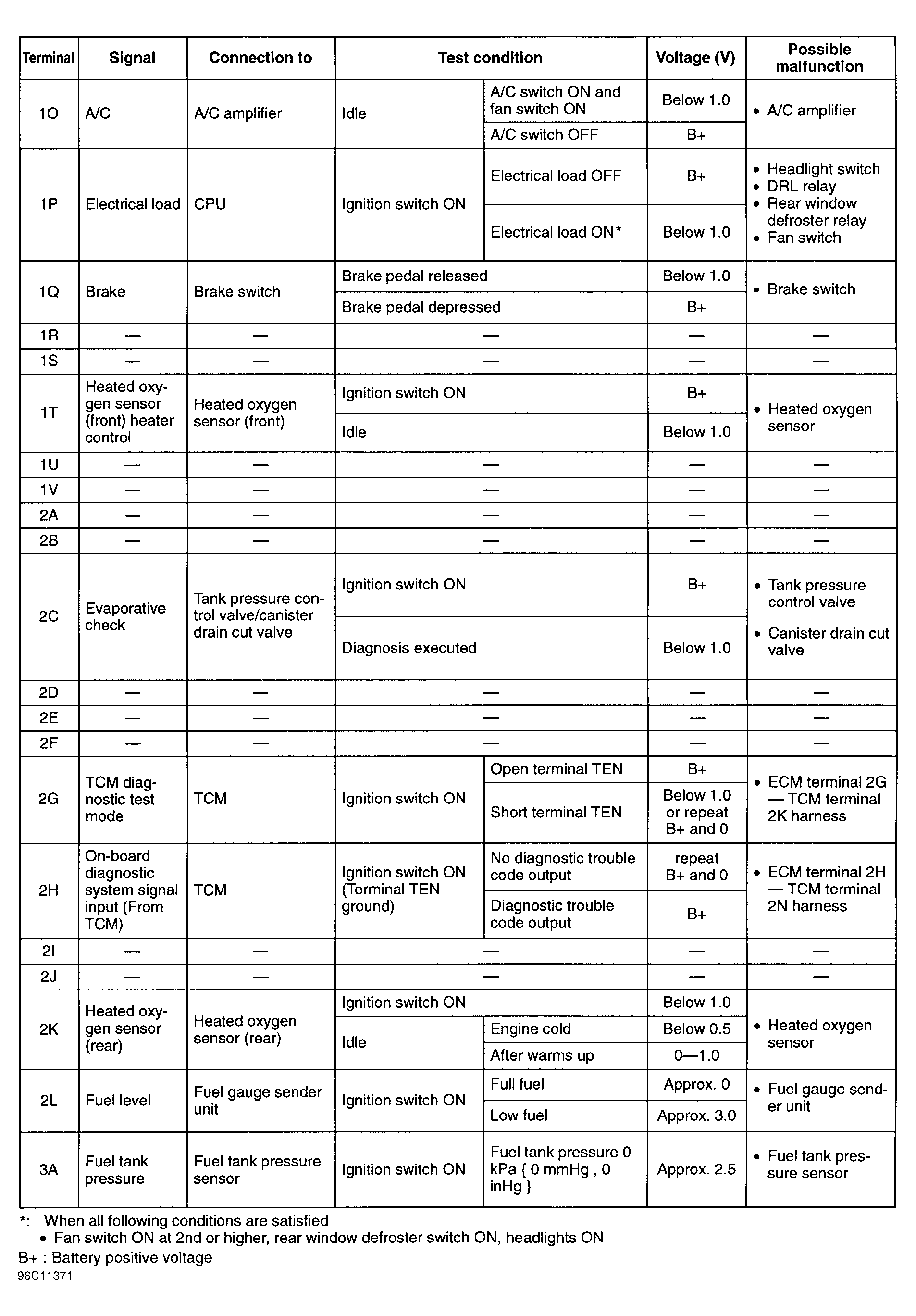

Fig 2: ECM Pin Voltage Chart (2 Of 5)

G96C11371

Courtesy of MAZDA MOTORS CORP.

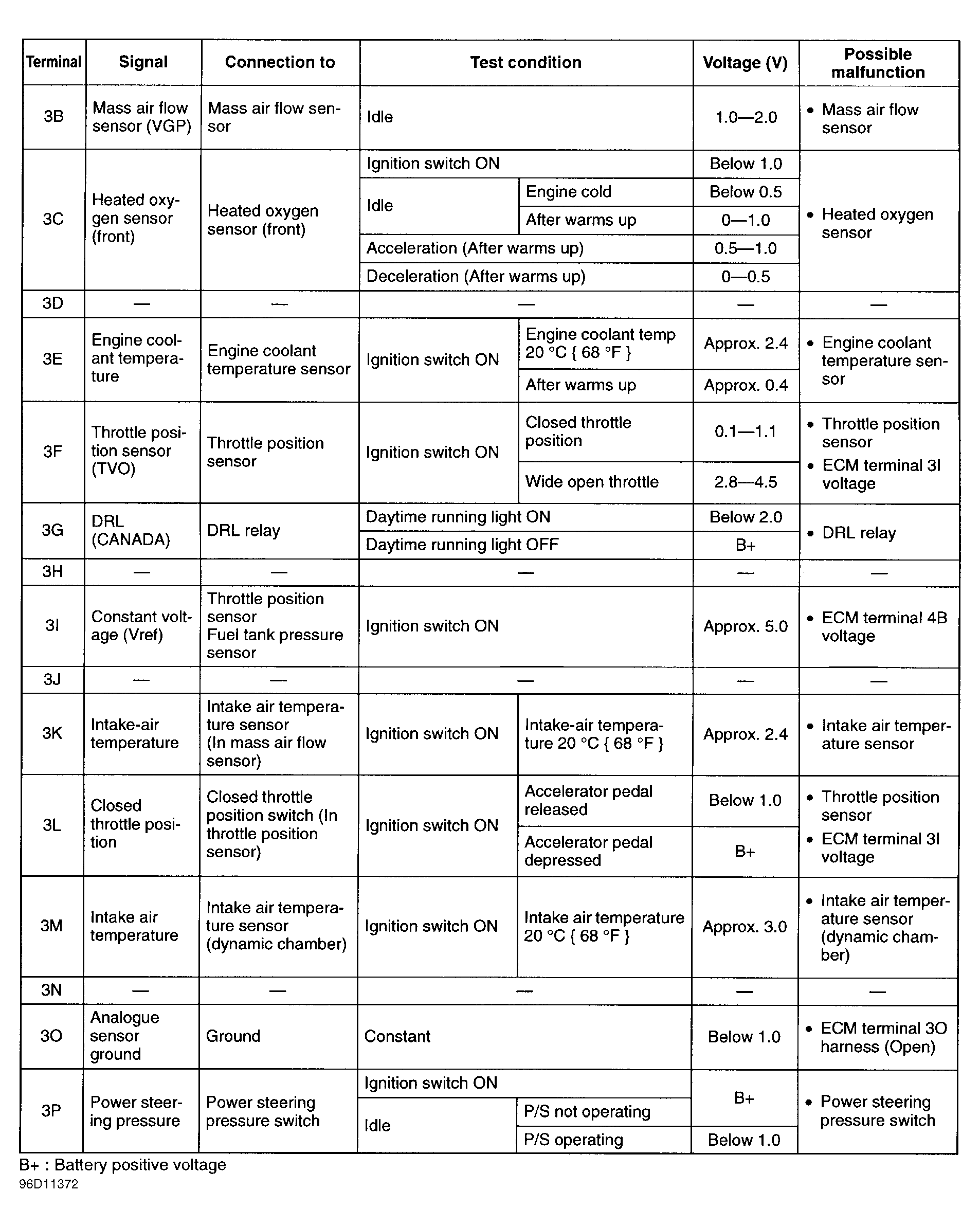

Fig 3: ECM Pin Voltage Chart (3 Of 5)

G96D11372

Courtesy of MAZDA MOTORS CORP.

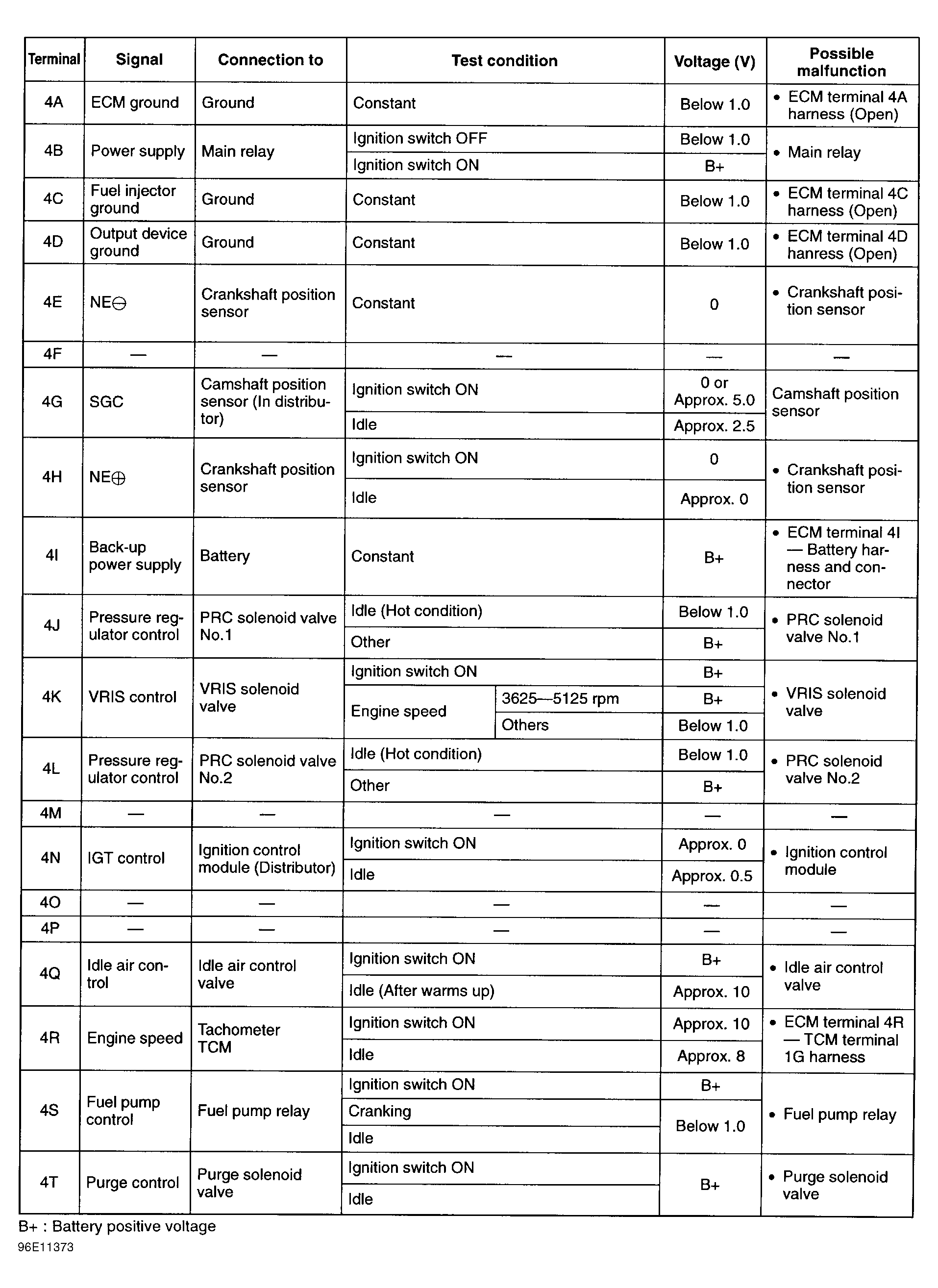

Fig 4: ECM Pin Voltage Chart (4 Of 5)

G96E11373

Courtesy of MAZDA MOTORS CORP.

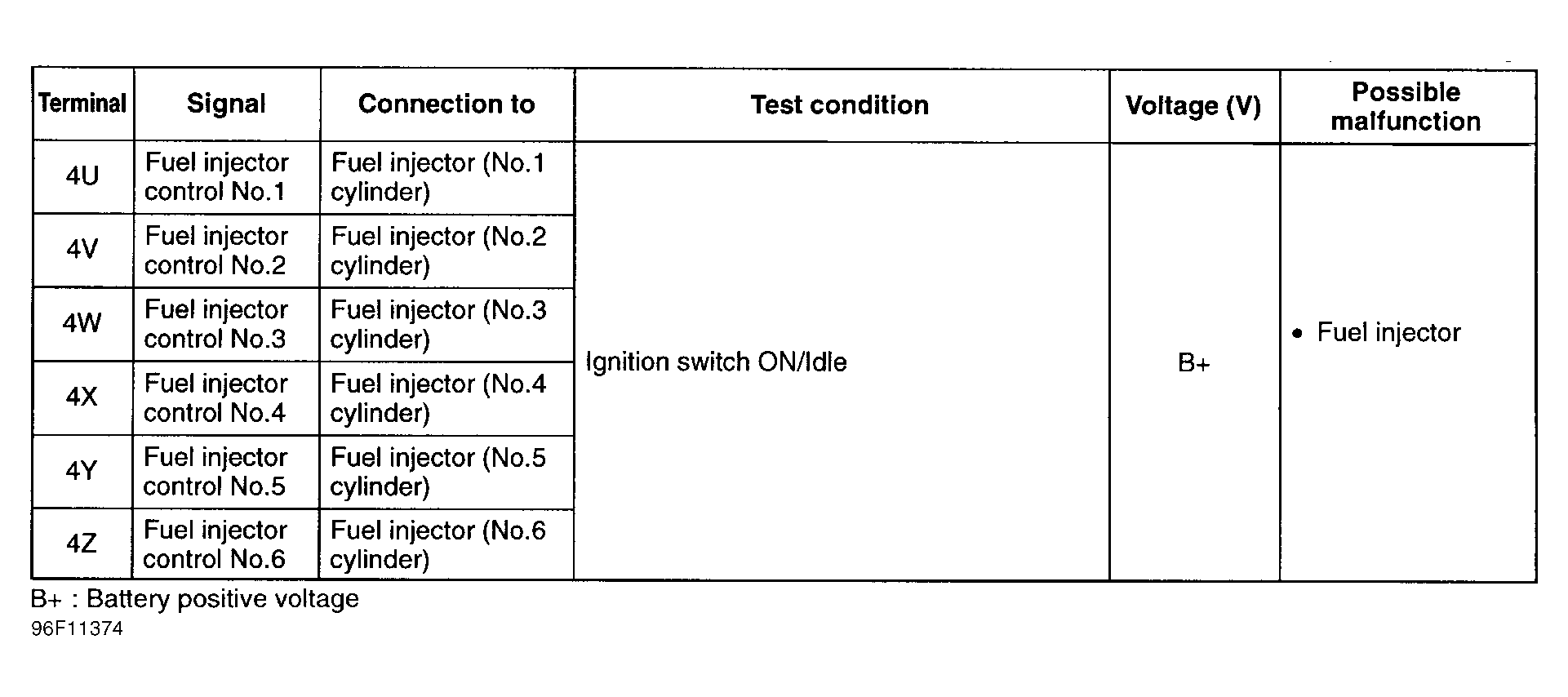

Fig 5: ECM Pin Voltage Chart (5 Of 5)

G96F11374

Courtesy of MAZDA MOTORS CORP.

Fig 6: ECM Connector Terminal Identification

G95I33181

Courtesy of MAZDA MOTORS CORP.
