Fuel Pump Circuit & Relay

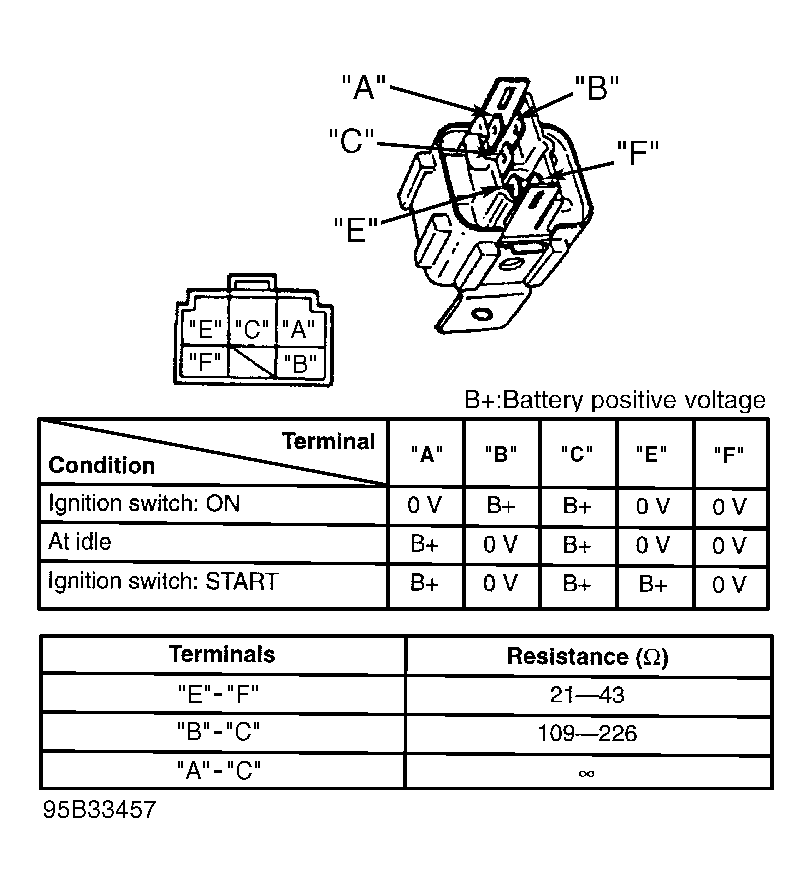

With relay connected, ensure specified voltage is present at relay terminals. See Fig 1 . For location of fuel pump relay, see the FUEL PUMP RELAY LOCATIONS table. If voltages are okay, remove relay from vehicle. Check relay operation using a 12-volt battery source and perform resistance tests. See Fig 1 .
