Fuel Pump Relay

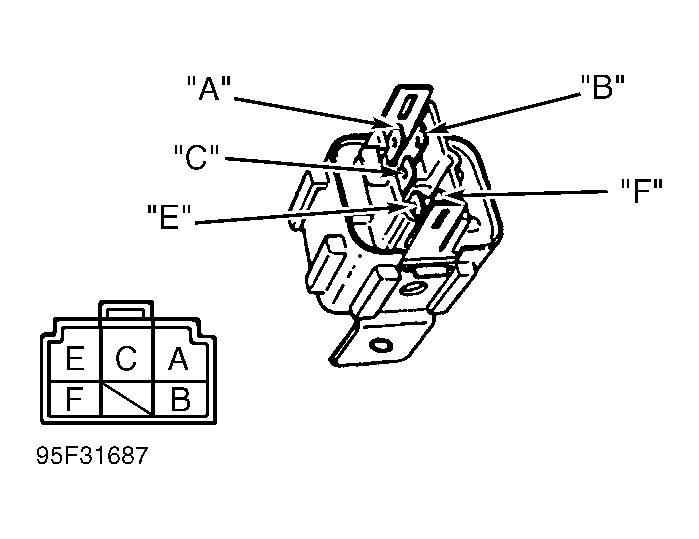

Remove fuel pump relay (located under front/passenger floor mat). Measure resistance between specified terminals. See FUEL PUMP RELAY RESISTANCES table. See Fig 1 . Replace relay if resistance is not as specified.
FUEL PUMP RELAY RESISTANCES
| Between Terminals | Ohms |
|---|---|
| "E" and "F" | 21-43 |
| "B" and "C" | 109-226 |
| "A" and "C" | Infinite |
