DTC P0500: Vehicle Speed Sensor Malfunction

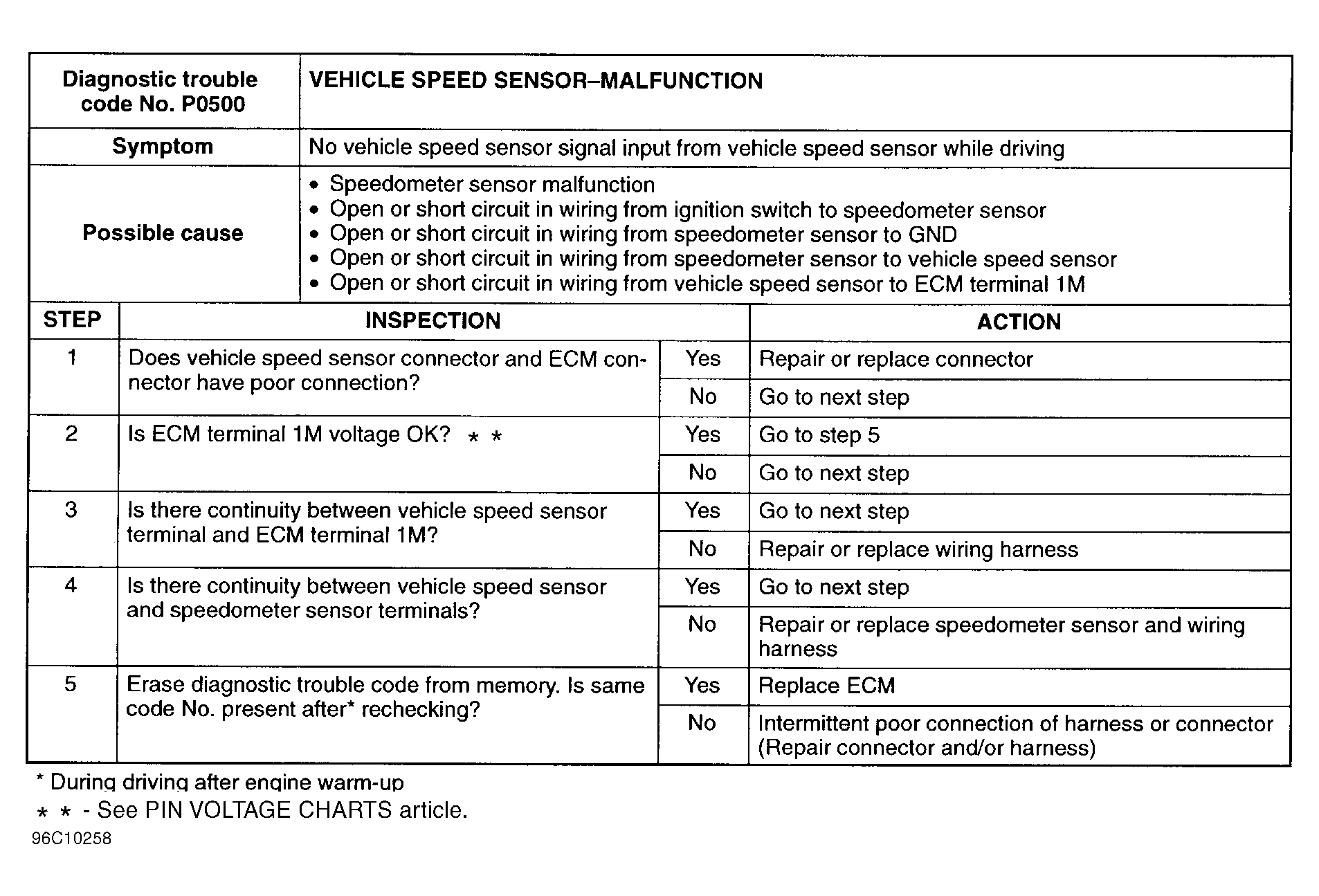

Fig 1: DTC P0500 Vehicle Speed Sensor Malfunction
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
