DTC P0505: Idle Control System Malfunction

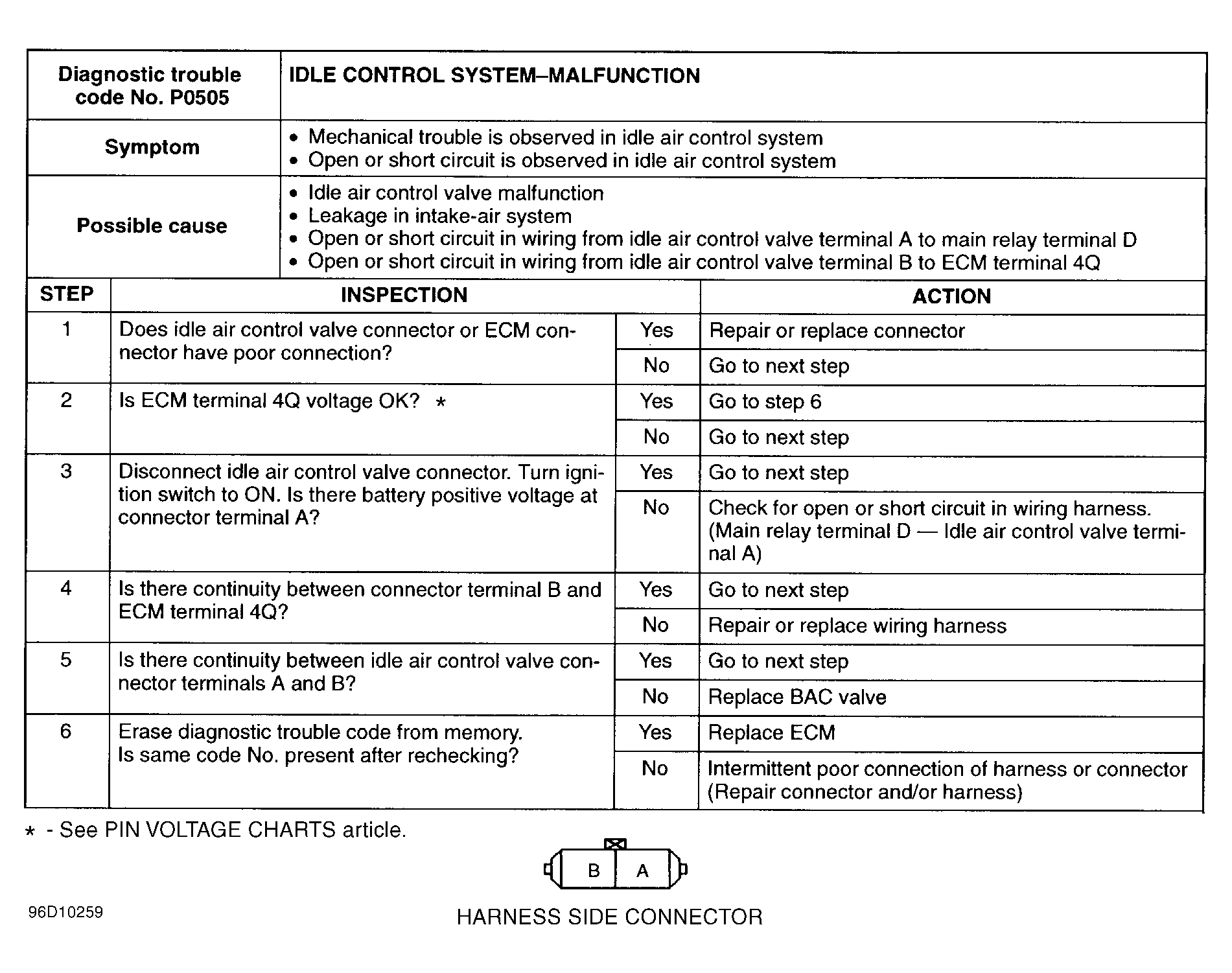

Fig 1: DTC P0505 Idle Control System Malfunction
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
