DTC P1601: ECM - TCM Communication Error

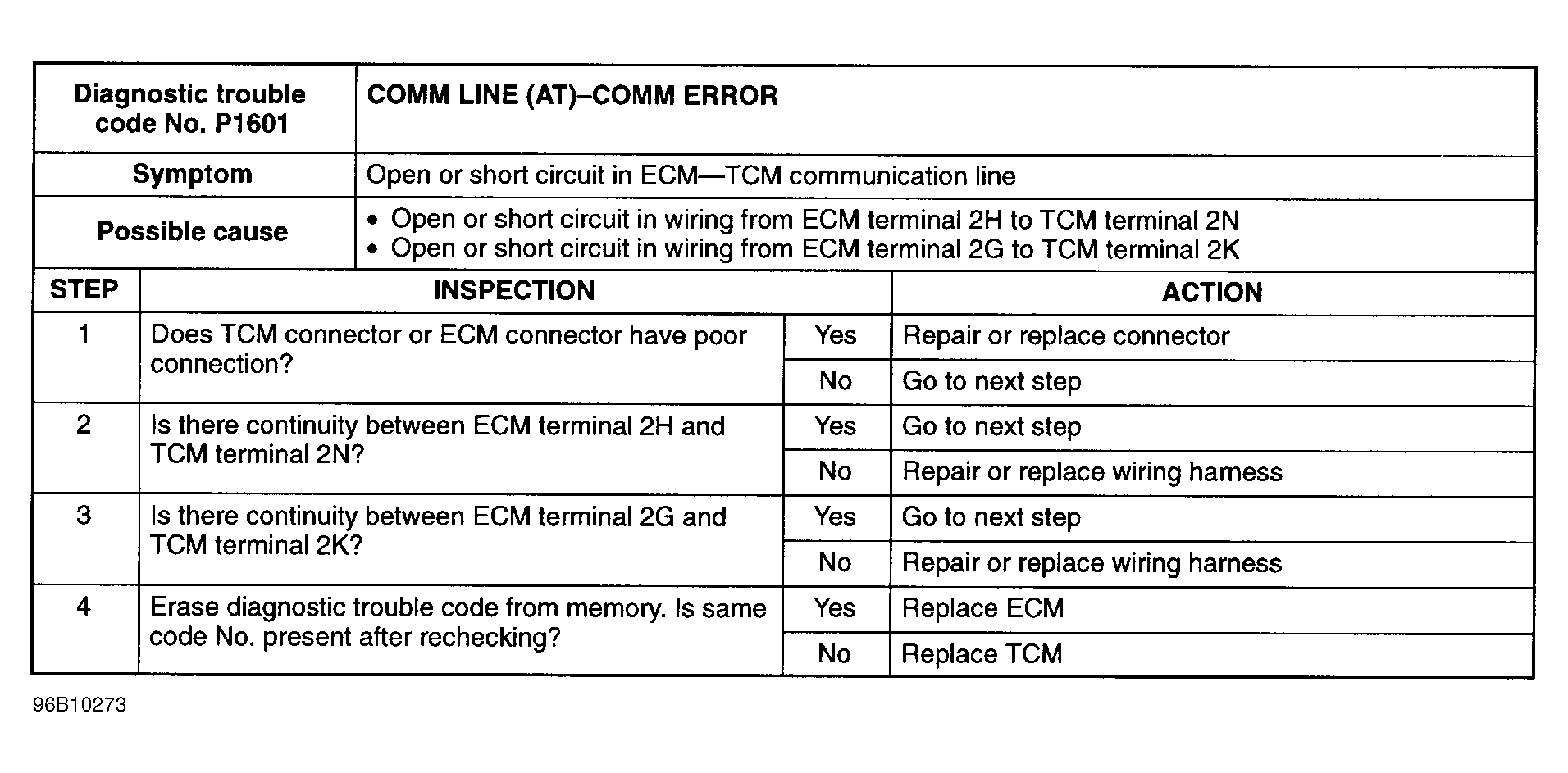

Fig 1: DTC P1601 ECM - TCM Communication Error
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
