Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

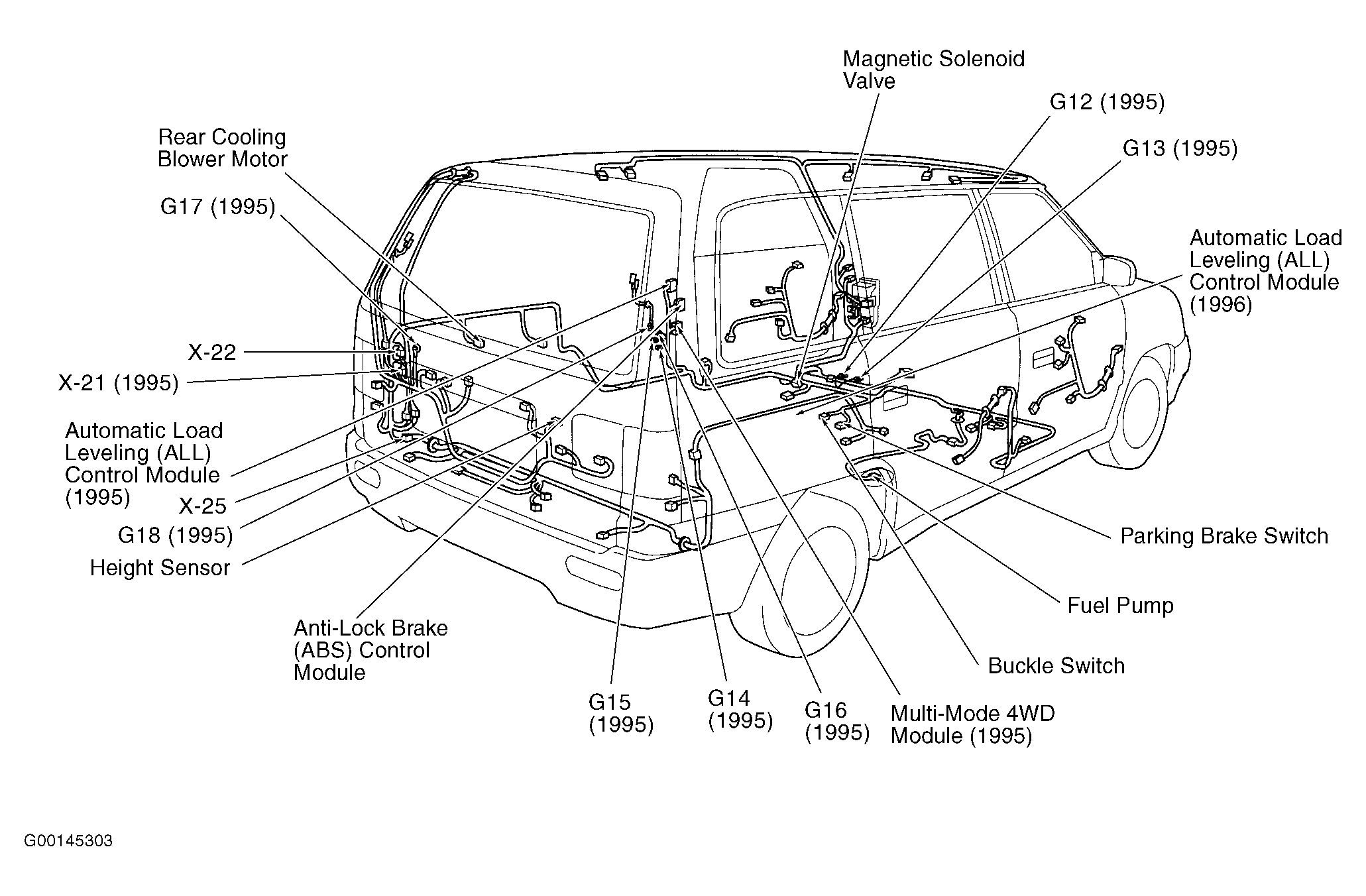

| Anti-Lock Brake (ABS) Control Module (1995) | Behind left rear interior trim panel. See Figure . |

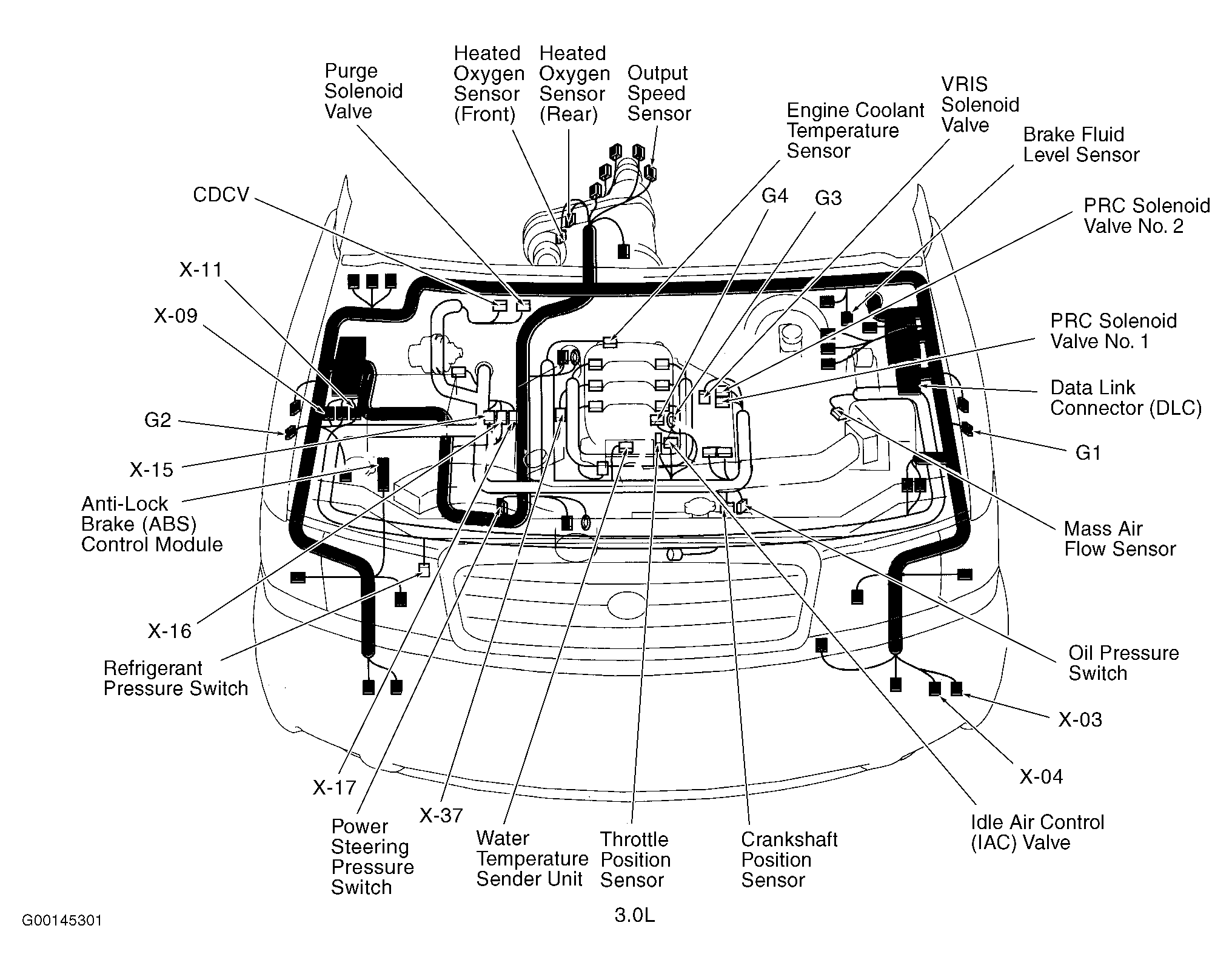

| Anti-Lock Brake (ABS) Control Module (1996) | On right front corner of engine compartment. See Figure . |
| Automatic Load Leveling (ALL) Control Module (1995) | At left center of vehicle, behind trim panel. See Figure . |
| Automatic Load Leveling (ALL) Control Module (1996) | At right rear of vehicle, behind trim panel, near wheel well. See Figure . |
| Central Processing Unit (CPU) | Behind left side of dash, above joint box. See Figure . |
| Cruise Control Module | Behind right kick panel. See Figure . |
| Diagnostic Module (1995) | Behind left side of dash, right of steering column. See Figure . |
| Engine Control Module | Under passenger-side footwell. See Figure . |
| Ignition Control Module | On left side of engine compartment. |
| Keyless Entry Unit (1996) | Under right side of dash. See Figure . |
| Multi-Mode 4WD Module (1995) | At left center of vehicle, behind trim panel. See Figure . |
| Multi-Mode 4WD Module (1996) | At left rear of vehicle, near wheelwell. |
| Rear Speaker Amplifier | Under passenger front seat. |
| SAS-Unit (1996) | Under right side of dash. See Figure . |
| Transmission Control Module | Under left side of dash. See Figure . |
