Steering Column: Reassembly

To reassemble, reverse disassembly procedure. Grease steering shaft, bushings and bearings. Use NEW shear screws.

STEERING SHAFT DIMENSIONS ⁽¹⁾

Application

Length - In. (mm)

MPV

24.09-24.21 (612.0-615.0)

⁽¹⁾	For measuring points, see Fig 1 .

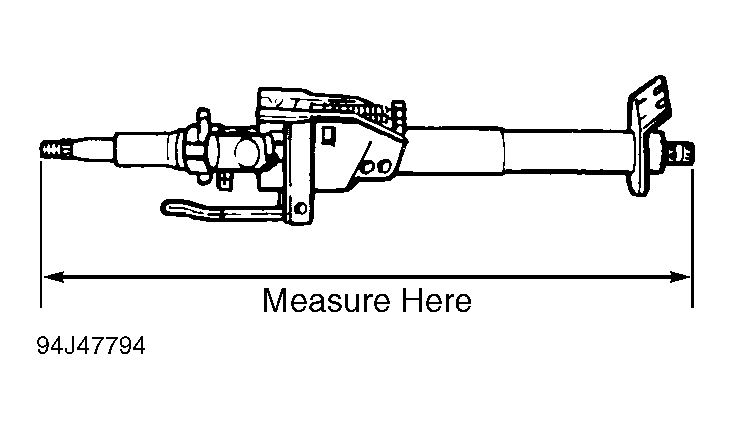

Fig 1: Measuring Steering Shaft Dimensions

Courtesy of MAZDA MOTORS CORP.
