Park Position Switch: 929

Disconnect negative battery cable. Remove front and rear console. Remove indicator screws and lift up panel. Disconnect park position switch. Check continuity between connector terminals. See Fig 4. Continuity should exist with switch released. Continuity should not exist with switch depressed. Replace as needed.

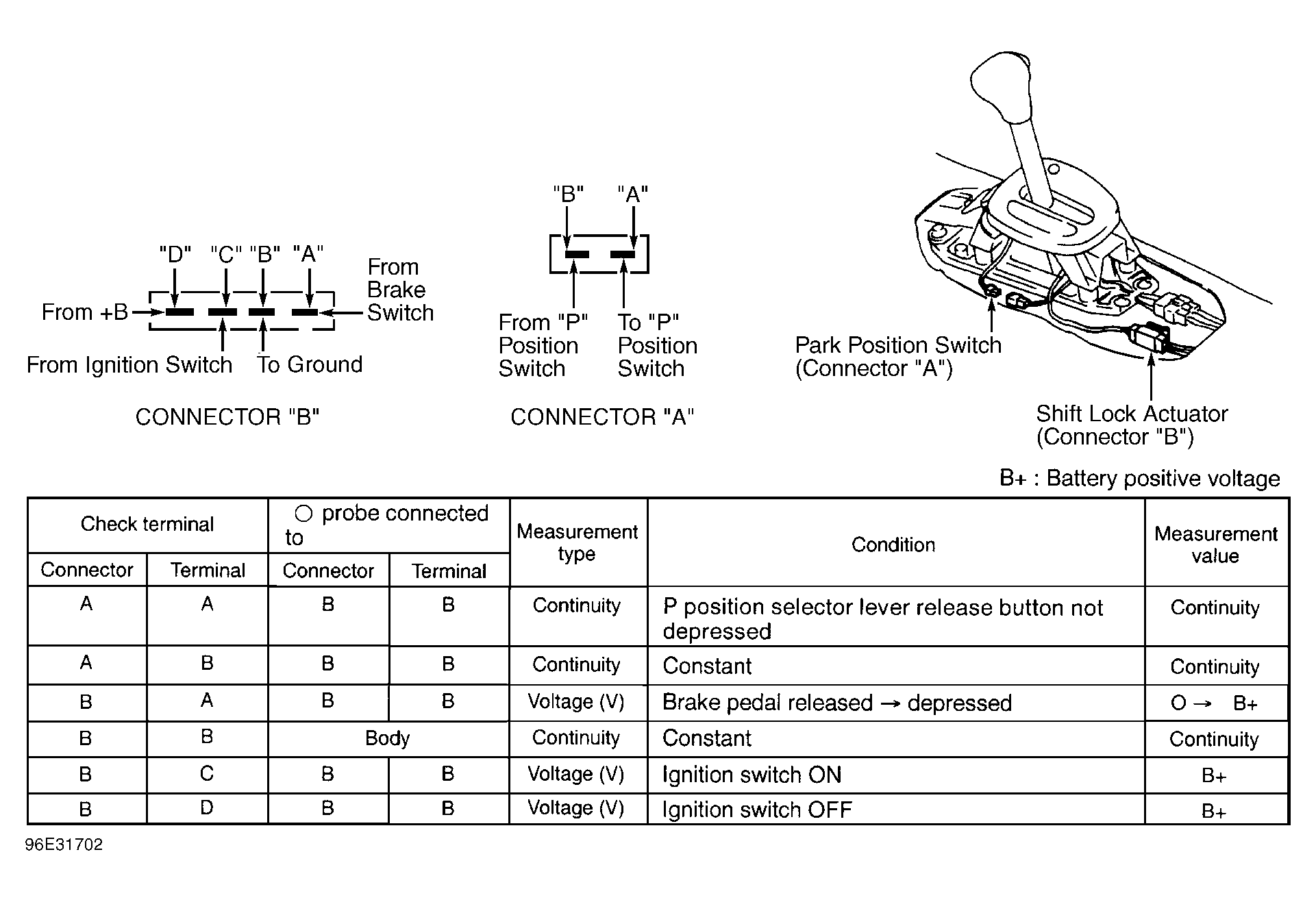

Fig 1: Testing Shift Lock Actuator & Park Switch (Miata)

Courtesy of MAZDA MOTORS CORP.

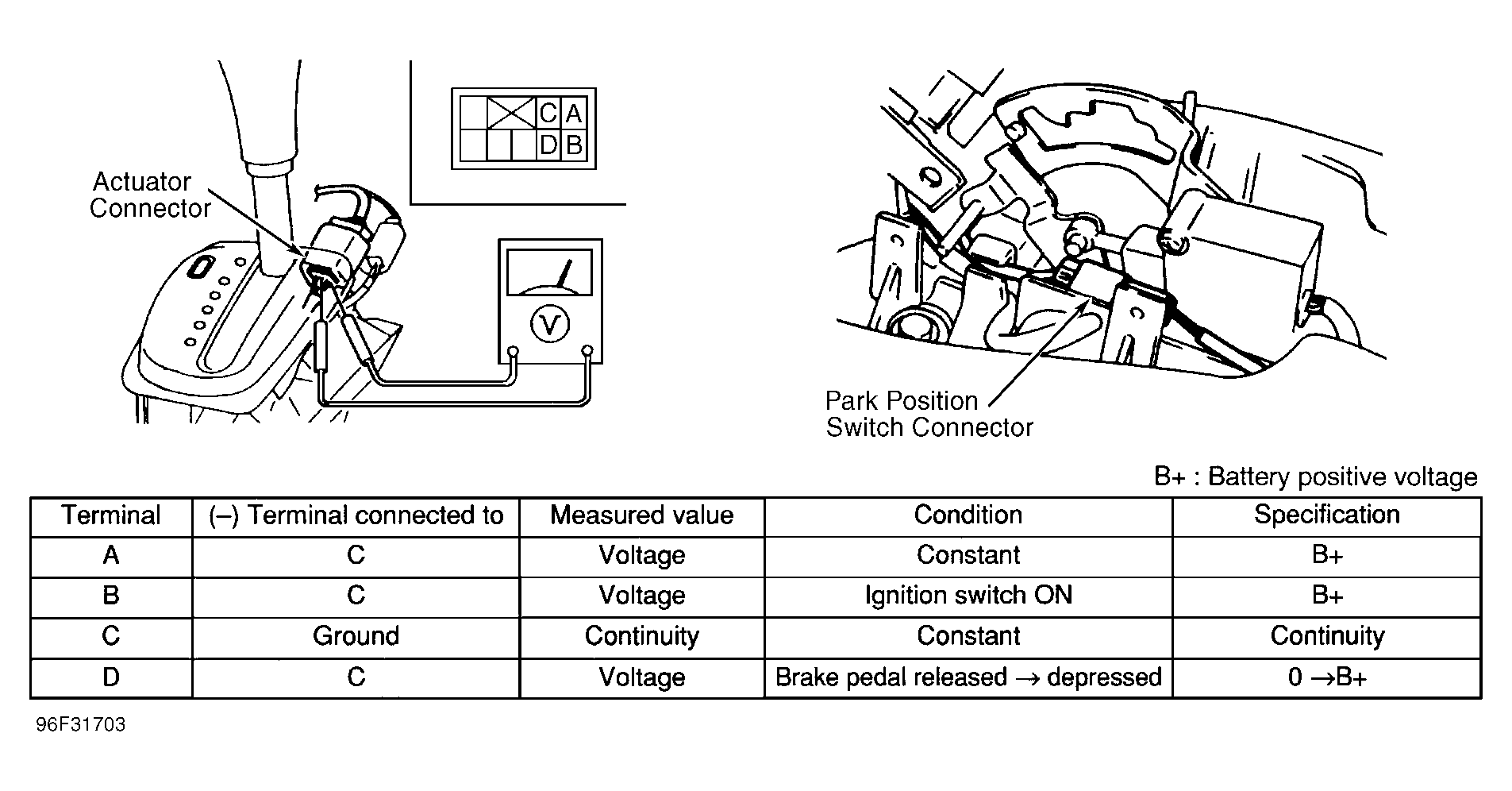

Fig 2: Testing Shift Lock Actuator & Park Switch (Millenia)

Courtesy of MAZDA MOTORS CORP.

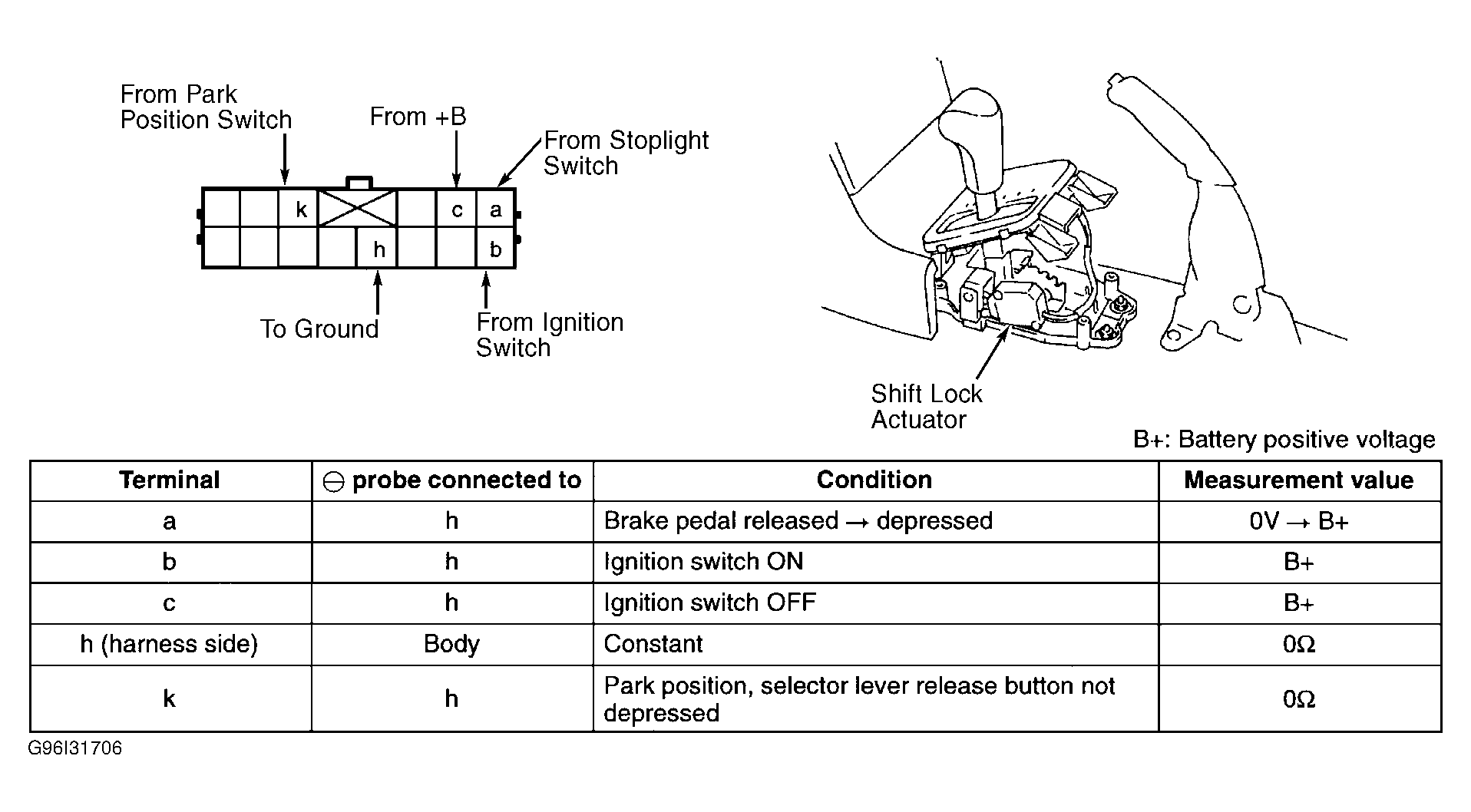

Fig 3: Testing Shift Lock Actuator & Park Switch (MX-3, MX-6, Protege & 626)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Testing Shift Lock Actuator & Park Switch (929)

Courtesy of MAZDA MOTORS CORP.
