Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Description See Fig.
Heated Oxygen Sensor (HO2S) 4
Mass Airflow (MAF) Sensor 5
Purge Flow Sensor 6
Temperature Sensor 7
Throttle Position (TP) Sensor 8
WOT A/C Cut-Off Test Circuits 9

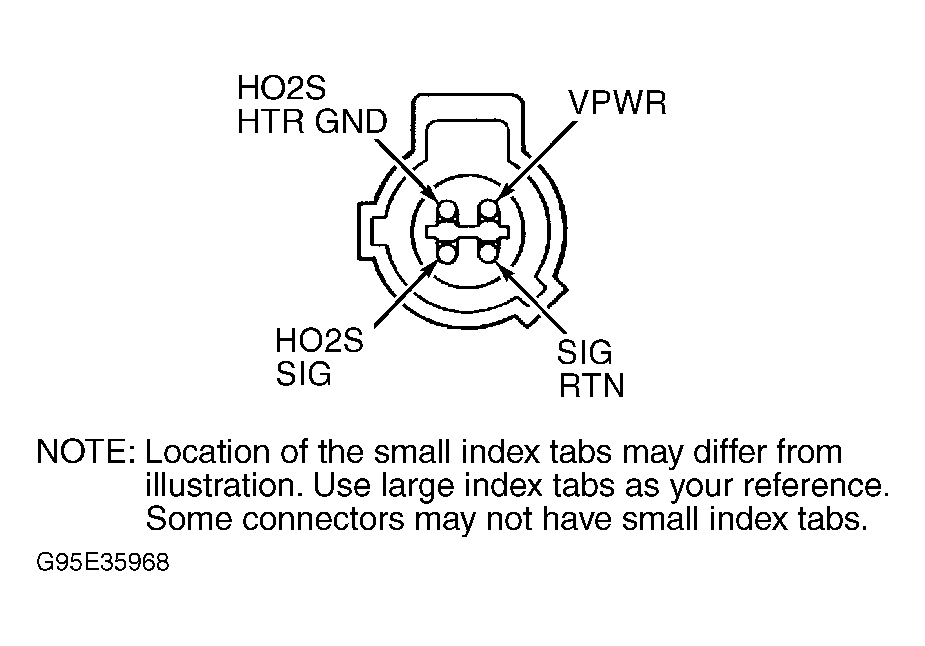

Fig 1: Identifying HO2S Connector Terminal
G95E35968Courtesy of FORD MOTOR CO.

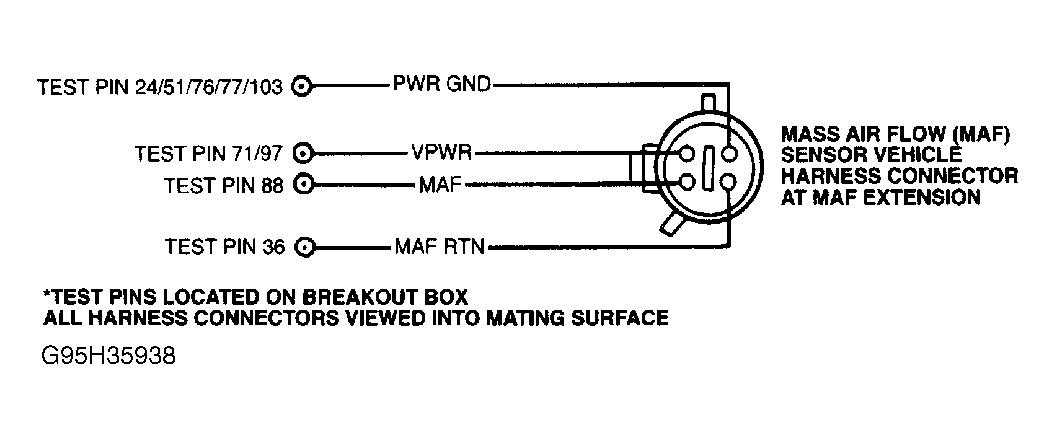

Fig 2: Identifying MAF Sensor Extension Circuits & Connector Terminals
G95H35938Courtesy of FORD MOTOR CO.

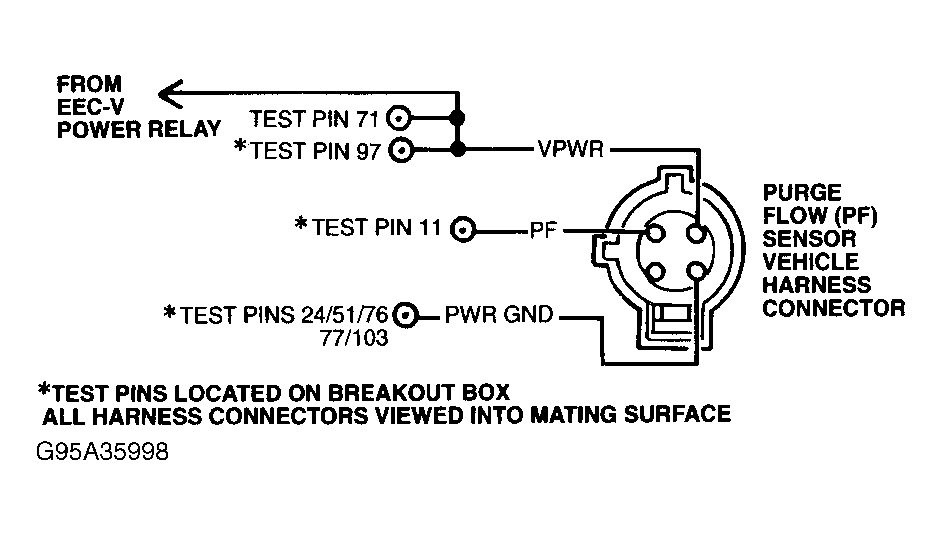

Fig 3: Identifying Purge Flow Sensor Test Circuit & Connector Terminals
G95A35998Courtesy of FORD MOTOR CO.

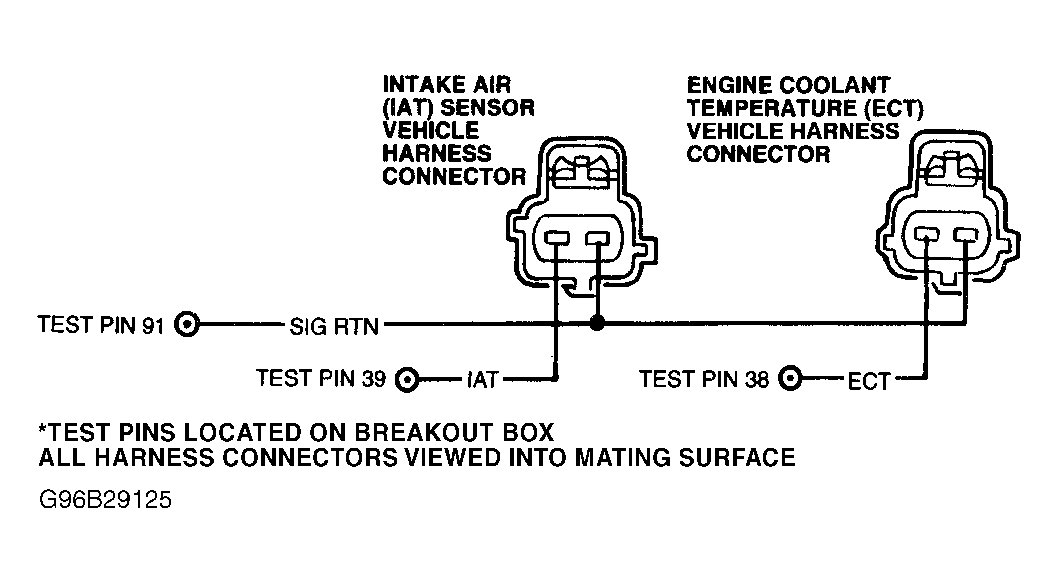

Fig 4: Identifying Temperature Sensor Circuits & Connector Terminals
G96B29125Courtesy of FORD MOTOR CO.

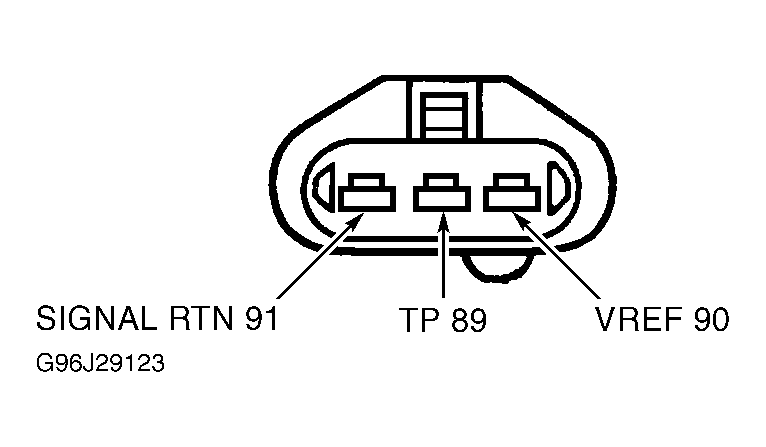

Fig 5: Identifying Throttle Position (TP) Sensor Connector Terminals
G96J29123Courtesy of FORD MOTOR CO.

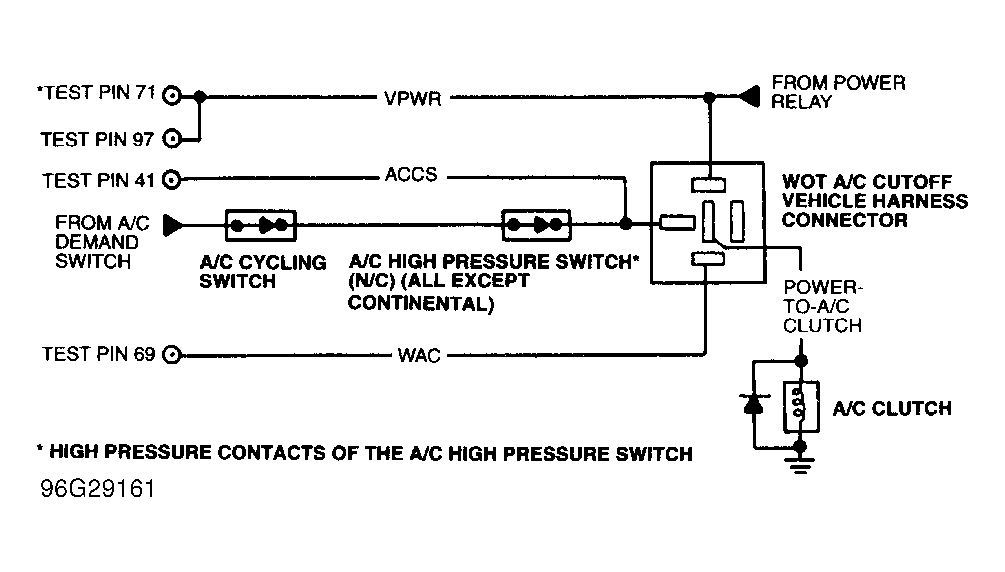

Fig 6: Identifying WAC Test Circuits & Connector Terminals
G96G29161Courtesy of FORD MOTOR CO.
