Retrieving Codes

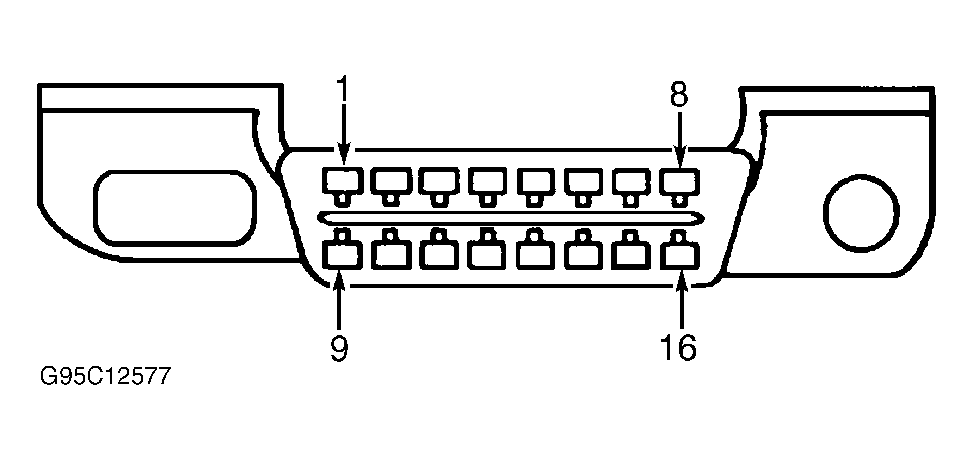

Fault codes are retrieved from EEC-V system through Data Link Connector (DLC). See Fig 1. Self-diagnostic test procedures are for use with New Generation Star (NGS) scan tool. If a generic scan tool is used, ensure tool is certified ODB-II standard.
DATA LINK CONNECTOR (DLC) LOCATIONS
| Application | Location |
|---|---|
| All Models | Below Instrument Panel To Right Of Steering Wheel |
DATA LINK CONNECTOR (DLC) TERMINAL IDENTIFICATION
| Terminal No. | Circuit |
|---|---|
| 1 | Ignition Control |
| 2 | BUS+ SCP |
| 3 | Not Used |
| 4 | Chassis Ground |
| 5 | Signal Return (SIG RTN) |
| 6 | Not Used |
| 7 | K Line ISO 9141 |
| 8 | Not Used |
| 9 | Not Used |
| 10 | BUS- SCP |
| 11 | Not Used |
| 12 | Not Used |
| 13 | FEPS (Flash EEPROM) |
| 14 | Not Used |
| 15 | L Line ISO 9141 |
| 16 | Battery Power |
