Fuel Line Connectors: Connect

1. Check for damaged garter spring. If garter spring is damaged, remove using small hooked wire, and replace spring. Wipe end of lines using clean cloth. Place NEW "O" rings onto tube. Lubricate ends of lines with clean refrigerant oil.
2. Push fitting together using a slight twisting motion. Ensure garter spring is over flared end of female fitting. Attempt to pull lines apart to ensure coupler is fully engaged. Install locking clip (if equipped).

Fig 1: Disconnecting Spring Lock Coupler

Courtesy of FORD MOTOR CO.

To reconnect fuel line coupling, push coupler tube assembly firmly into coupler body recess until fully engaged. Pull gently on both ends of coupler to ensure engagement.

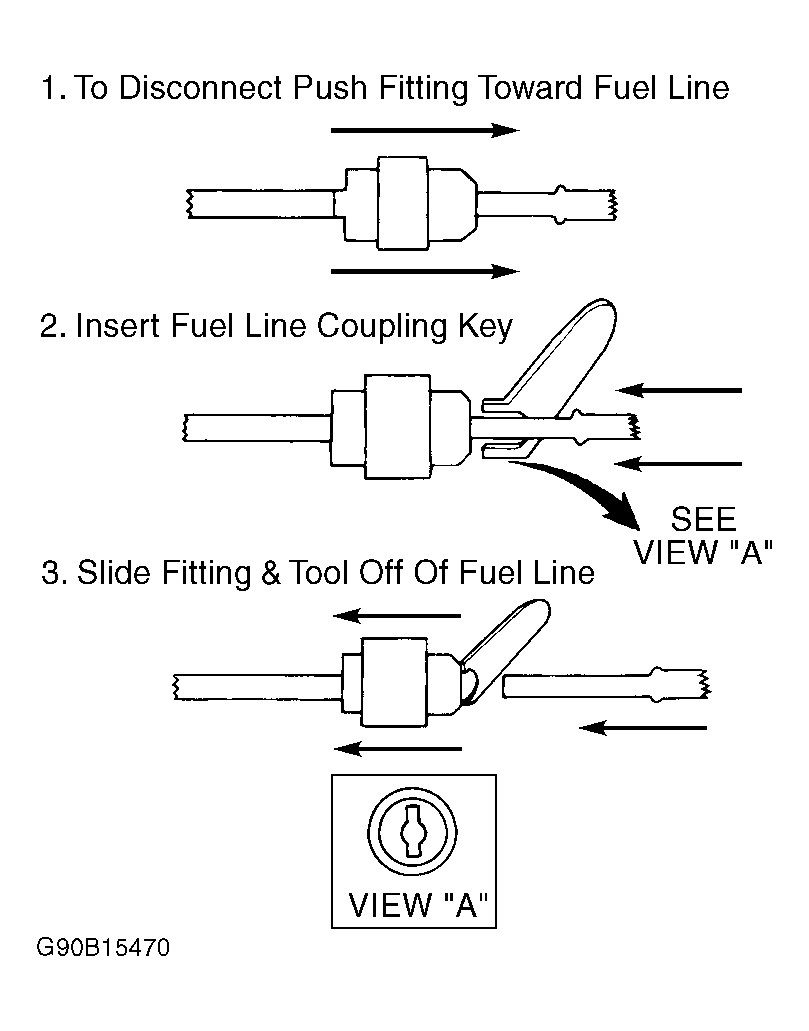

Fig 1: Disconnecting Fuel Line Coupler With Key

Courtesy of FORD MOTOR CO.
