Steering Column: Overhaul

NOTE: Use illustration for exploded view of steering columns. See Fig 1 or Fig 2 .

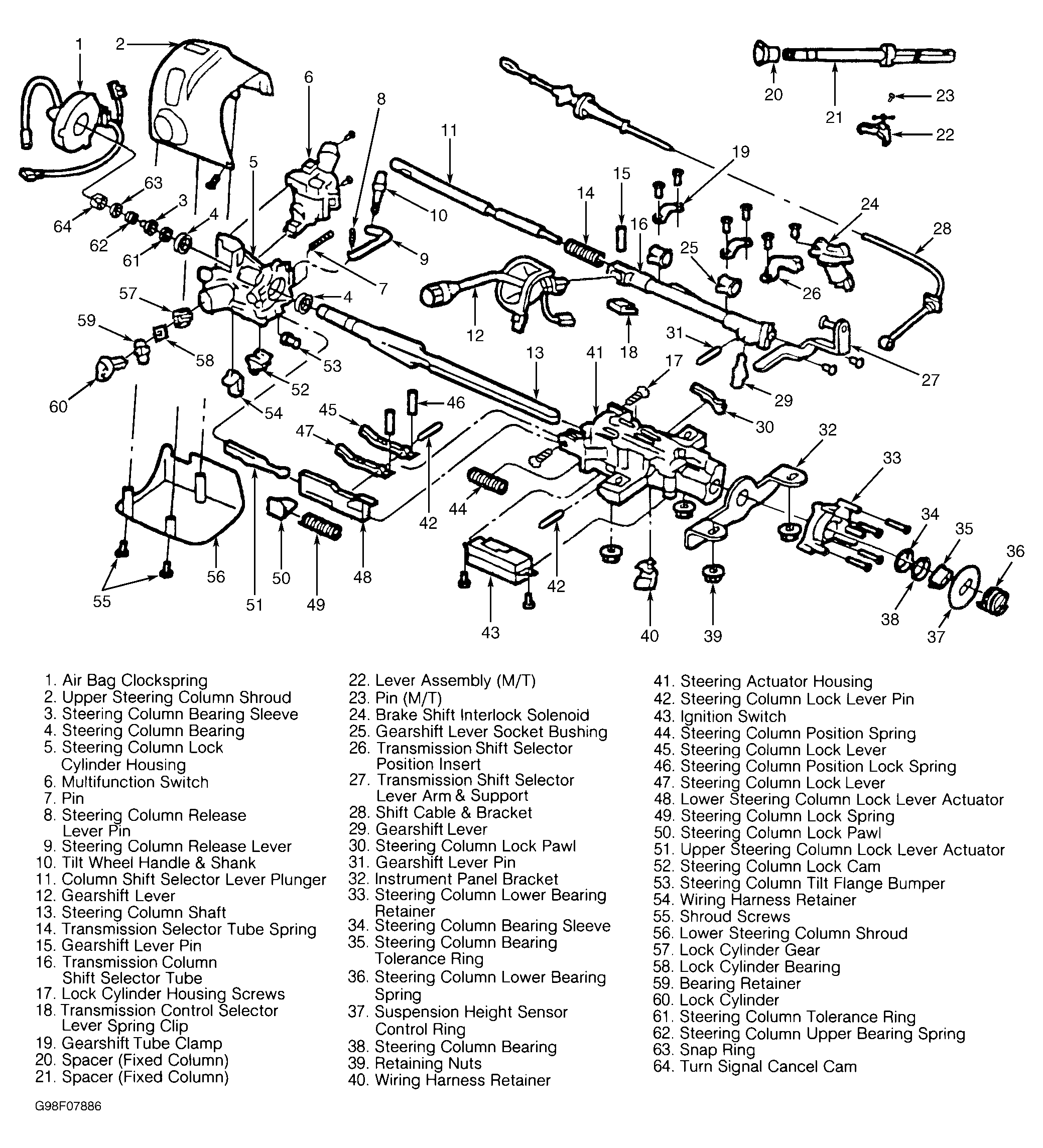

Fig 1: Exploded View Of Steering Column (1997)

Courtesy of MAZDA MOTORS CORP.

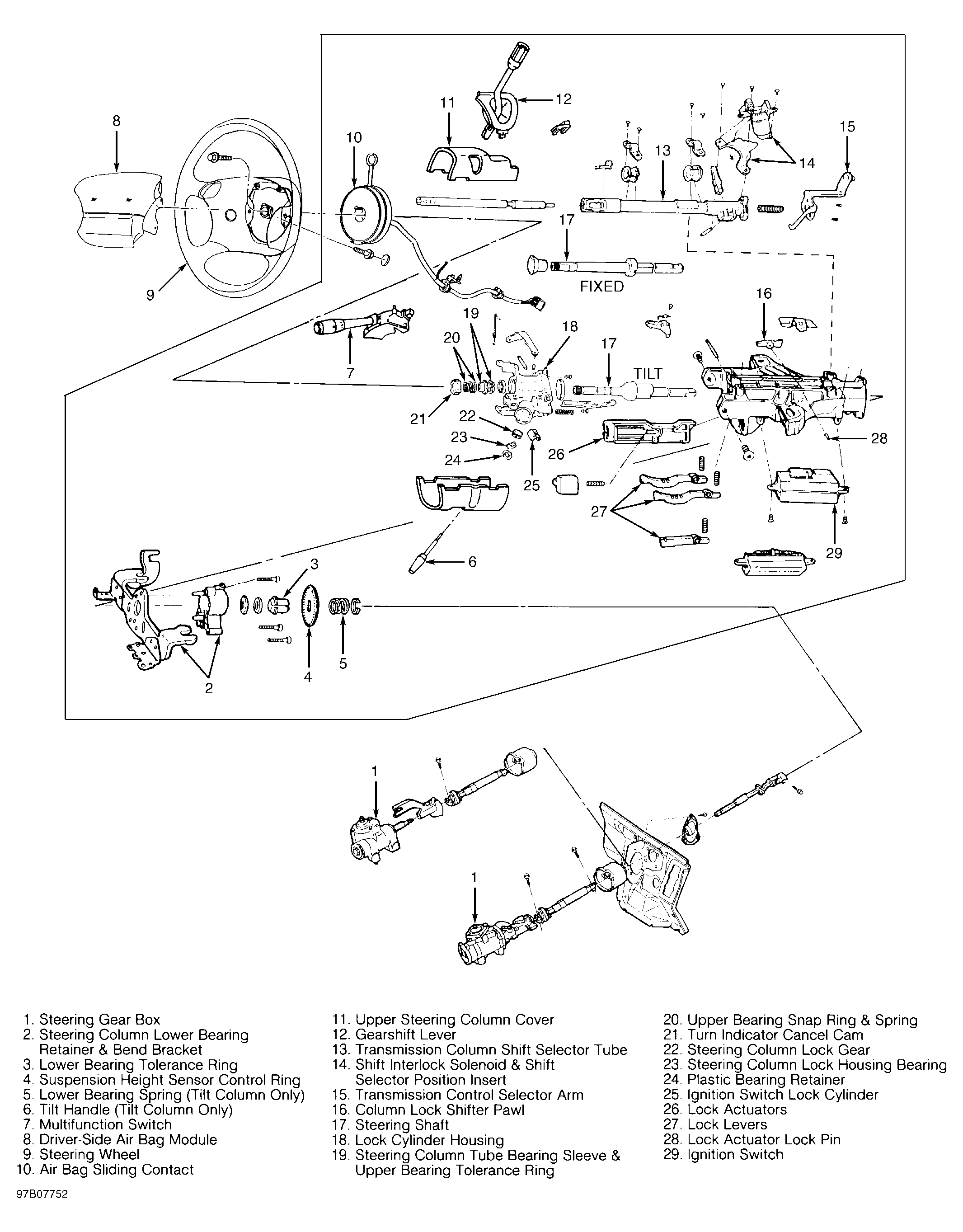

Fig 2: Exploded View Of Steering Column (1998)

Courtesy of MAZDA MOTORS CORP.
