Connector Identification
Harness connector terminal identification illustrations are generic and categorized by number of terminals. For terminal identification of connectors with 1 or 2 terminals, see WIRING DIAGRAMS article. All connector views are terminal side unless otherwise specified. For harness connector terminal identification, see HARNESS CONNECTOR IDENTIFICATION DIRECTORY .
HARNESS CONNECTOR IDENTIFICATION DIRECTORY
| Description | See Figure | ||
|---|---|---|---|
| Camshaft Position Sensor | Fig 5 | ||
| Crankshaft Position Sensor | Fig 1 | ||
| EGR Boost Sensor | Fig 5 | ||
| EGR Valve Position Sensor | Fig 1 | ||

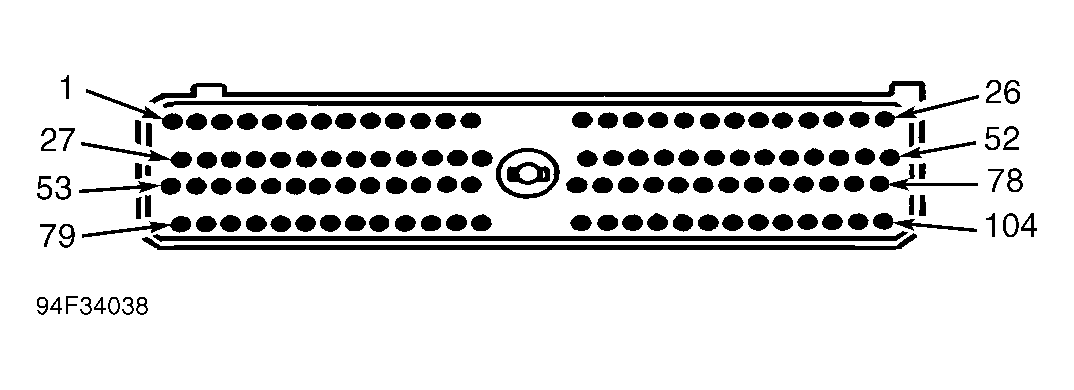

| Engine Control Module (1) | Fig 9 | ||
| Front Heated Oxygen Sensor | Fig 4 | ||
| Intake Air Temperature Sensor | Fig 6 | ||
| Mass Air Flow Sensor | Fig 6 | ||
| Rear Heated Oxygen Sensor | Fig 3 | ||
| Throttle Position Sensor | Fig 5 | ||
| Transmission Control Module | Fig 11 | ||
|
|||
