Main Switch

Disconnect main switch connector. Check for continuity between specified terminals of main switch with main switch button held in specified position. See Fig 1 or Fig 2 . If continuity is not as specified, replace main switch. See MAIN SWITCH CONTINUITY TEST (MX-6) or MAIN SWITCH CONTINUITY TEST (626) .

MAIN SWITCH CONTINUITY TEST (MX-6)

Switch Position ⁽¹⁾

Terminals

Driver

A & C; B & J

DOWN

A & J; B & C

One-Touch DOWN

A & J; B & C

Off (Neutral)

A, B & C

Passenger

C & I; H & J

DOWN

C & H; I & J

Off (Neutral)

C, H & I

⁽¹⁾	Ensure power cut switch is in ON position.

MAIN SWITCH CONTINUITY TEST (626)

Switch Position ⁽¹⁾

Terminals

Driver

H, J & L

DOWN

H, J & L

One-Touch DOWN

H, J & L

Off (Neutral)

H, J & L

Passenger

A & D; B & H

DOWN

A & B; D & H

Off (Neutral)

B, D & H

Left Rear

A & K; H & I

DOWN

A & I; H & K

Off (Neutral)

H, I & K

Right Rear

A & E; C & H

DOWN

A & C; E & H

Off (Neutral)

C, E & H

⁽¹⁾	Ensure power cut switch is in ON position.

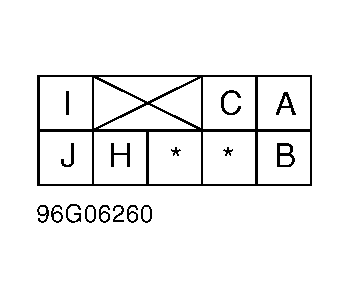

Fig 1: Identifying Main Switch Terminals (MX-6)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Main Switch Terminals (626)

Courtesy of MAZDA MOTORS CORP.
