Component Testing: Sub-Switch

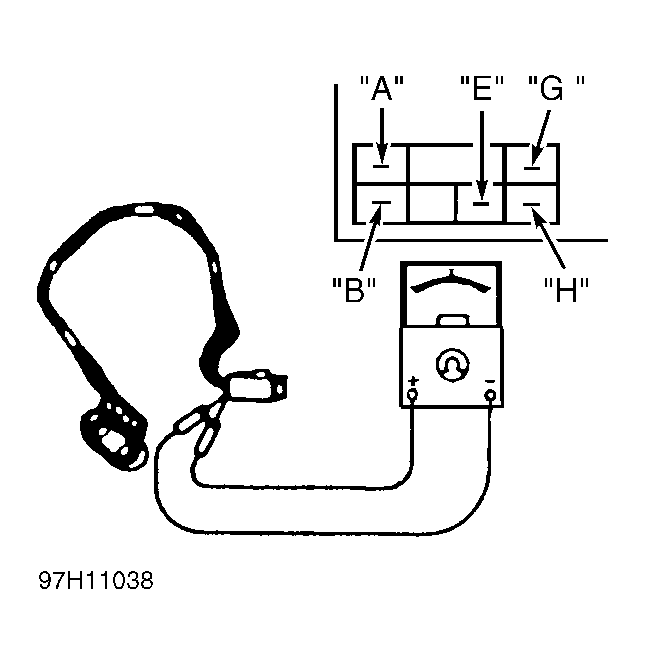

Disconnect sub-switch connector. Check for continuity between specified terminals of sub-switch with sub-switch button held in specified position. See SUB-SWITCH CONTINUITY TEST . SeeFig 1 . If continuity is not as specified, replace sub-switch.
SUB-SWITCH CONTINUITY TEST
| Switch Position | Terminals |
|---|---|
| UP | B & G; E & H |
| DOWN | A & B; G & H |
| Off (Neutral) | A & B; E & H |
