Circuit Open/Short Inspection: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the following wiring harnesses for open or short circuit (continuity check).

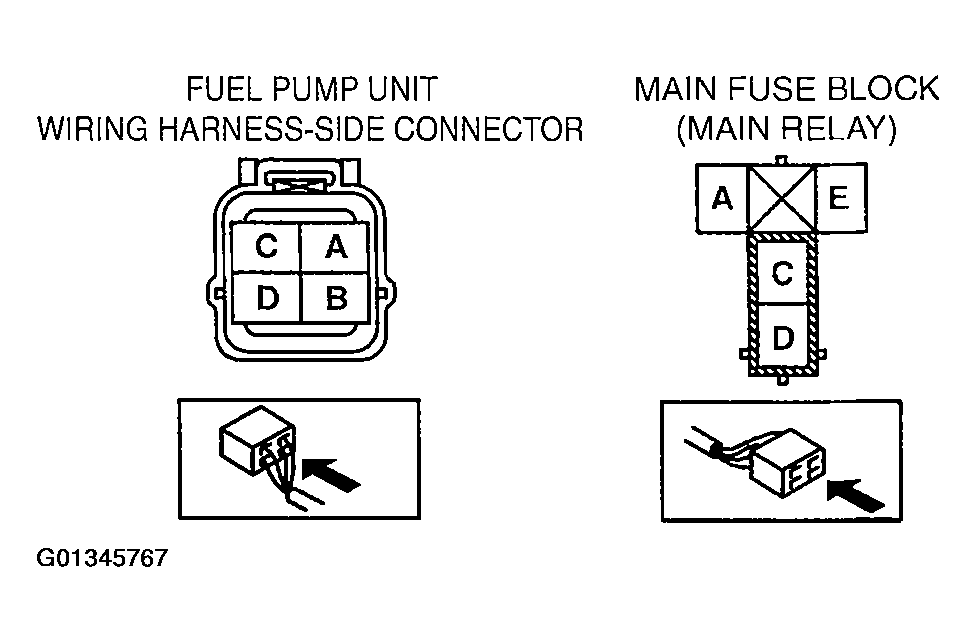

    Fig 1: Identifying Fuel Pump Unit & Main Relay Connector Terminals
    G01345767Courtesy of MAZDA MOTORS CORP.
