Fuel Pump Cap Removal Note
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

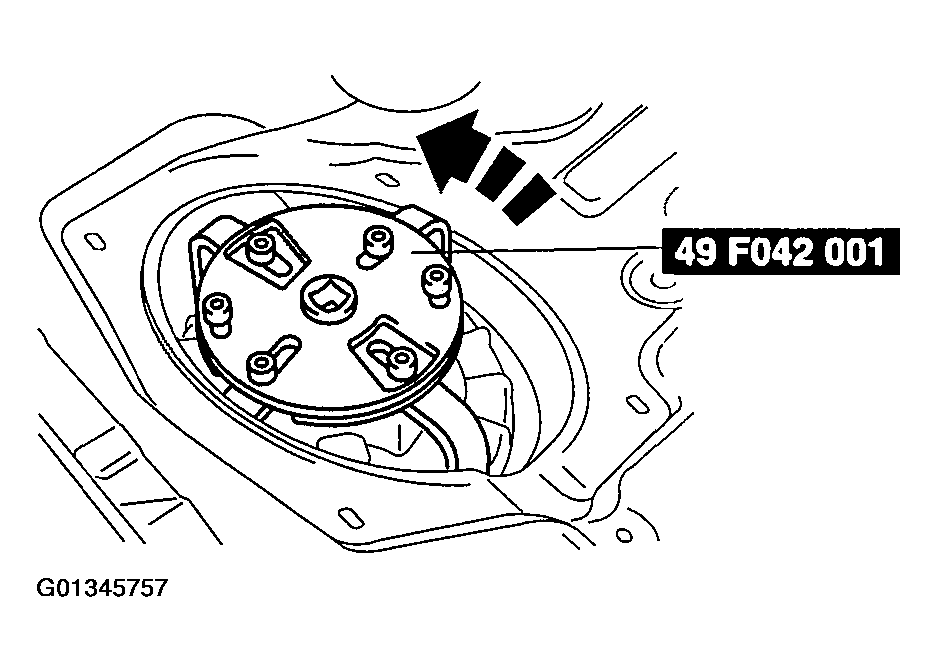

- The cap could be damaged if the SST is used with any play between the cap and the SST. Securely attach the SST so that there is no gap between the SST tabs and the side of the cap.
- Remove the fuel pump cap using the SST.
Courtesy of MAZDA MOTORS CORP.
