Joint Hose Installation Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

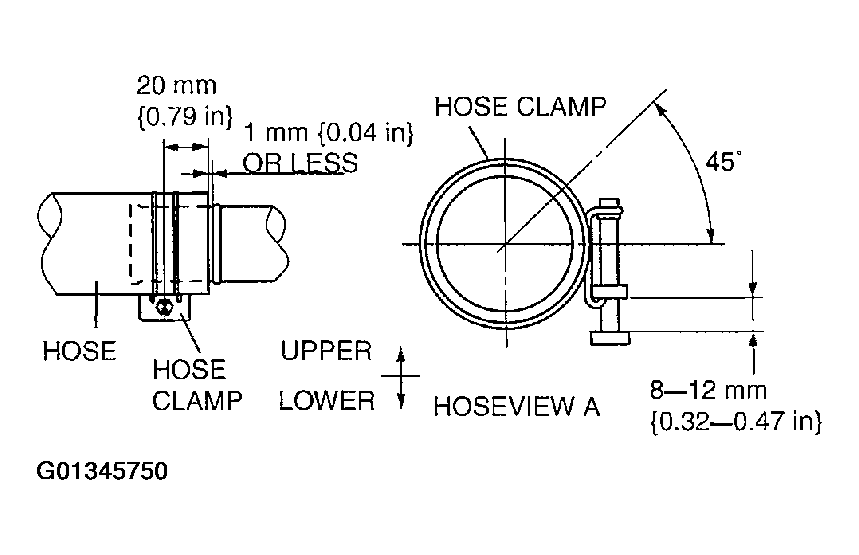

Install the joint hose and clamps as shown in the figure.

Fig 1: Installing Joint Hose & Clamps
Courtesy of MAZDA MOTORS CORP.
