By-Pass Air Control (BAC) Valve

Remove BAC valve from throttle body. Let valve cool. Using a blow drier, heat BAC valve. See Fig 1 . Plunger should move outward. Replace BAC valve as necessary

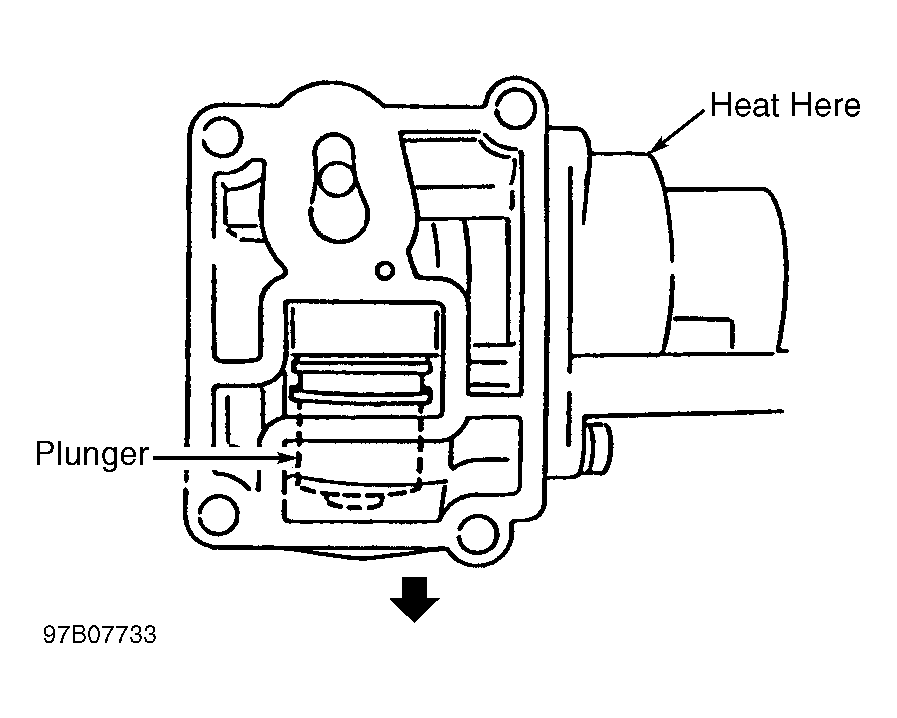

Fig 1: Identifying BAC Valve

Courtesy of MAZDA MOTORS CORP.
