Check Valve

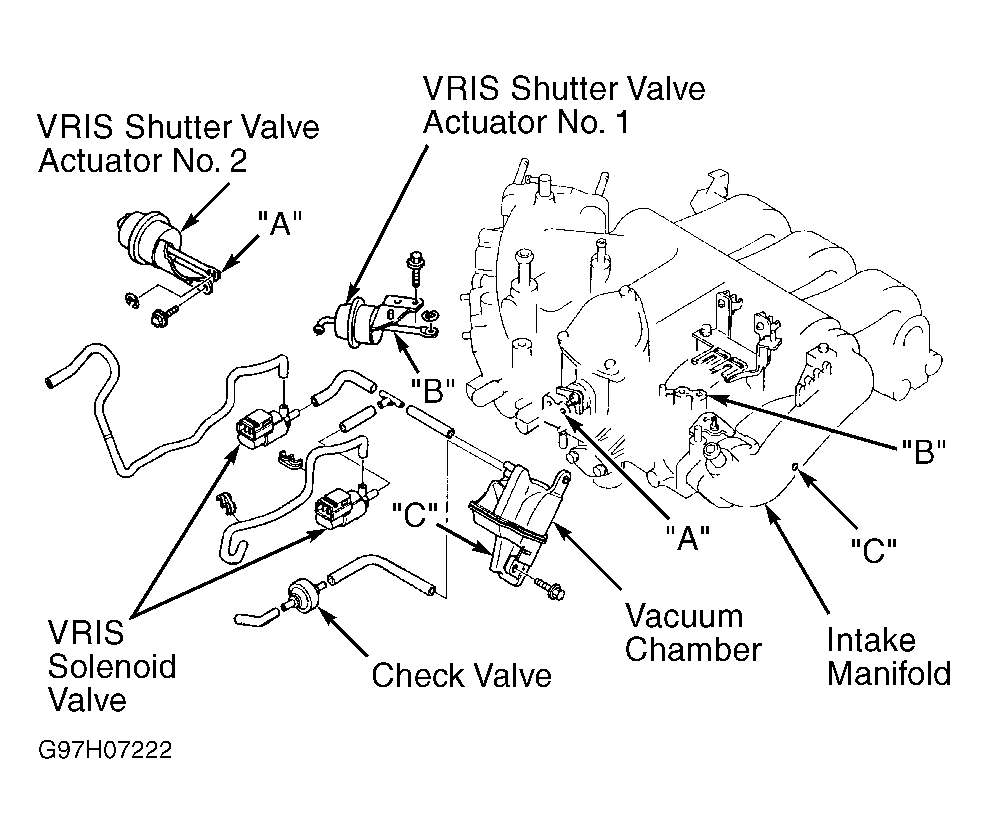

Remove check valve. See Figure . Apply air pressure to port "A" (White port) of check valve. Air should flow from port "B". Apply air pressure to port "B" (Green port) of check valve. Air should not flow from port "A". Replace check valve as necessary.
