Connector Identification

Harness connector terminal identification illustrations are generic and categorized by number of terminals. For terminal identification of connectors with 1 or 2 terminals, see WIRING DIAGRAMS article. All connector views are terminal side unless otherwise specified. For harness connector terminal identification, see HARNESS CONNECTOR IDENTIFICATION DIRECTORY.

HARNESS CONNECTOR IDENTIFICATION DIRECTORY

Description See
Millenia (2.3L)
Camshaft Position Sensor Fig 5
Crankshaft Position Sensor Fig 2
EGR Valve Position Sensor Fig 1
Fuel Gauge Sending Unit Fig 1
Fuel Tank Pressure Sensor Fig 1
Left Front Heated Oxygen Sensor Fig 1
Left Rear Heated Oxygen Sensor Fig 2
Intake Air Temperature Sensor Fig 6
Manifold Absolute Pressure Sensor Fig 1
Mass Air Flow Sensor Fig 1
Powertrain Control Module (1) Fig 10
Right Front Heated Oxygen Sensor Fig 2
Right Rear Heated Oxygen Sensor Fig 4
Throttle Position Sensor Fig 5
Transmission Control Module Fig 11
Millenia (2.5L)
Crankshaft Position Sensor Fig 2
Distributor Fig 6
EGR Boost Sensor Fig 2
EGR Valve Position Sensor Fig 1
Fuel Gauge Sending Unit Fig 1
Fuel Tank Pressure Sensor Fig 1
Left Front Heated Oxygen Sensor Fig 4
Mass Air Flow Sensor Fig 1
Middle Heated Oxygen Sensor Fig 3
Powertrain Control Module (1) Fig 10
Rear Heated Oxygen Sensor Fig 3
Right Front Heated Oxygen Sensor Fig 4
Throttle Position Sensor Fig 5
MPV
Distributor Fig 7
Front Heated Oxygen Sensor Fig 3
Fuel Gauge Sending Unit Fig 5
Fuel Tank Pressure Sensor Fig 1
Intake Air Temperature Sensor Fig 6
Mass Air Flow Sensor Fig 6
Powertrain Control Module (1) Fig 9
Rear Heated Oxygen Sensor Fig 3
Throttle Position Sensor Fig 5
Transmission Control Module Fig 11
Protege (1.5L)
Crankshaft Position Sensor Fig 2
Distributor (CA) Fig 6
Distributor (Fed) Fig 8
EGR Boost Sensor Fig 1
Fuel Tank Pressure Sensor Fig 1
Front Heated Oxygen Sensor Fig 2
Mass Air Flow Sensor Fig 1
Powertrain Control Module (1) Fig 9
Rear Heated Oxygen Sensor Fig 4
Throttle Position Sensor Fig 2
Protege (1.8L)
Crankshaft Position Sensor Fig 2
Distributor Fig 9
EGR Boost Sensor Fig 2
Fuel Tank Pressure Sensor Fig 2
Front Heated Oxygen Sensor Fig 5
Mass Air Flow Sensor Fig 7
Powertrain Control Module (1) Fig 10
Rear Heated Oxygen Sensor Fig 3
Throttle Position Sensor Fig 1
(1) Component connector view.
Fig 1: Identifying 3-Pin Harness Connector
G97A06610Courtesy of MAZDA MOTORS CORP.
Fig 2: Identifying 3-Pin Harness Connector
G97C06611Courtesy of MAZDA MOTORS CORP.
Fig 3: Identifying 4-Pin Harness Connector
G97E06612Courtesy of MAZDA MOTORS CORP.
Fig 4: Identifying 4-Pin Harness Connector
G97G06613Courtesy of MAZDA MOTORS CORP.
Fig 5: Identifying 4-Pin Harness Connector
G97I06614Courtesy of MAZDA MOTORS CORP.
Fig 6: Identifying 5-Pin Harness Connector
G97B06615Courtesy of MAZDA MOTORS CORP.

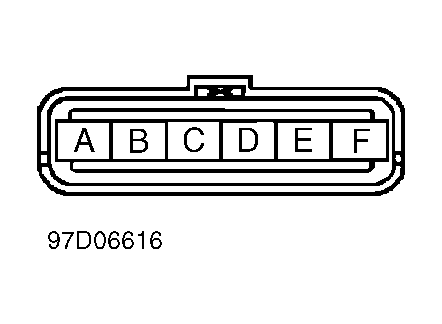

Fig 7: Identifying 6-Pin Harness Connector
G97D06616Courtesy of MAZDA MOTORS CORP.
Fig 8: Identifying 7-Pin Harness Connector
G97F06617Courtesy of MAZDA MOTORS CORP.

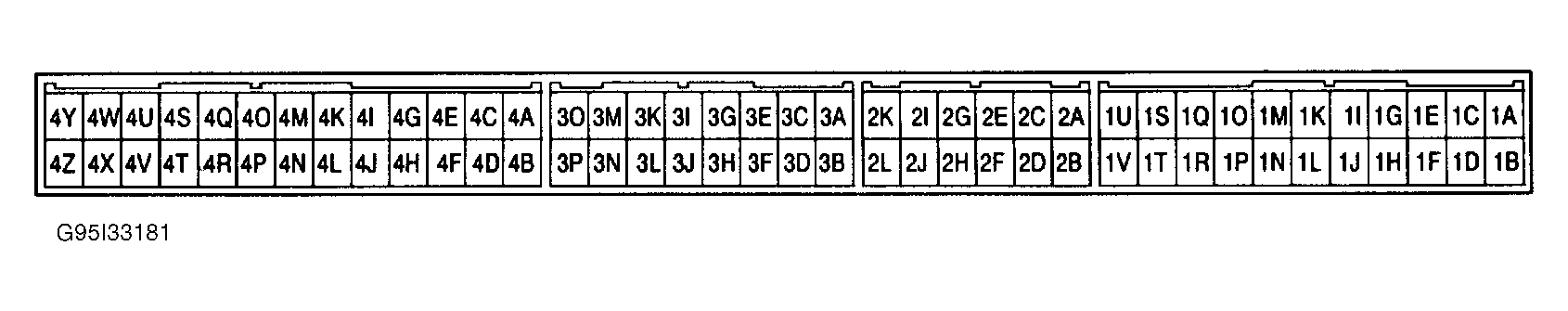

Fig 9: Identifying PCM Connector
G95I33181Courtesy of MAZDA MOTORS CORP.
Fig 10: Identifying PCM Connector
G95G33189Courtesy of MAZDA MOTORS CORP.

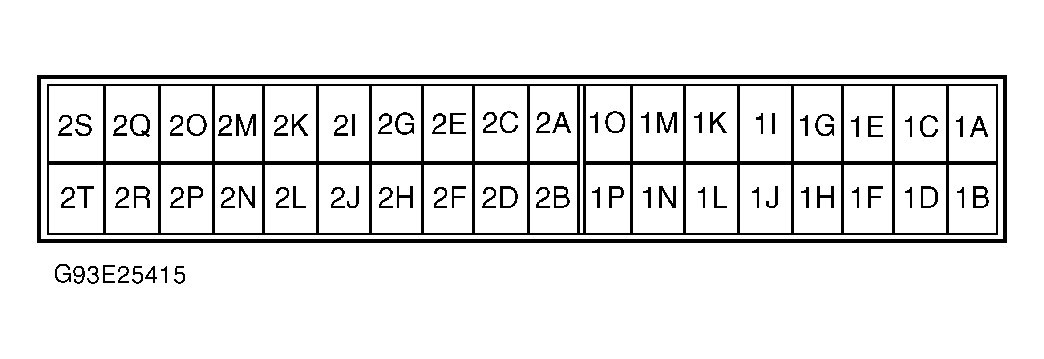

Fig 11: Identifying TCM Component Connector
G93E25415Courtesy of MAZDA MOTORS CORP.
