Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Air Bag Diagnostic Monitor | Behind right side of dash. |
| Anti-Slosh Module | Integral with instrument cluster. |
| Central Timer Module (CTM) | Behind center of dash. |
| DRL Module (2.5L) | Left side of lower radiator support. See Figure . |

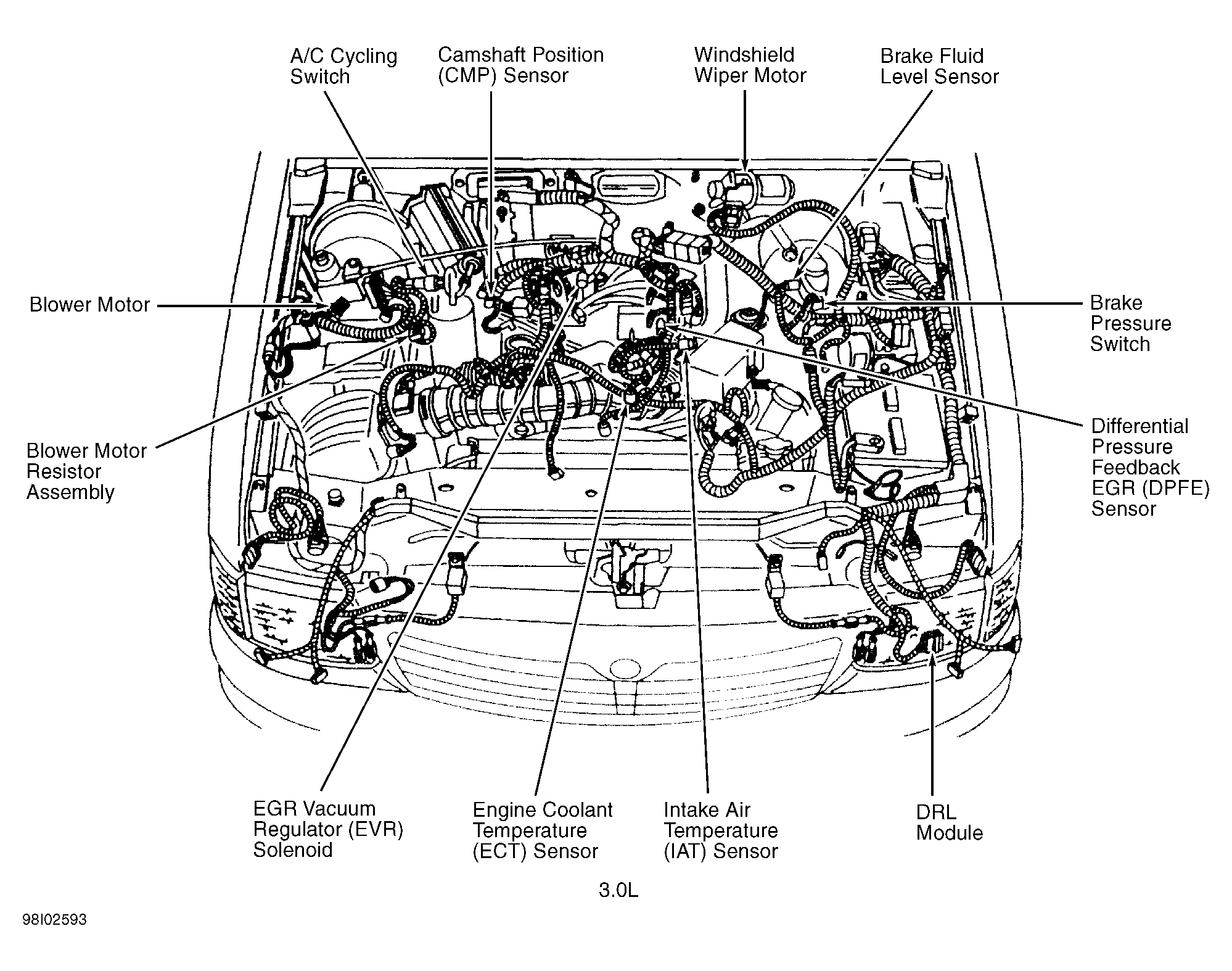

| DRL Module (3.0L) | Left side of lower radiator support. See Figure . |

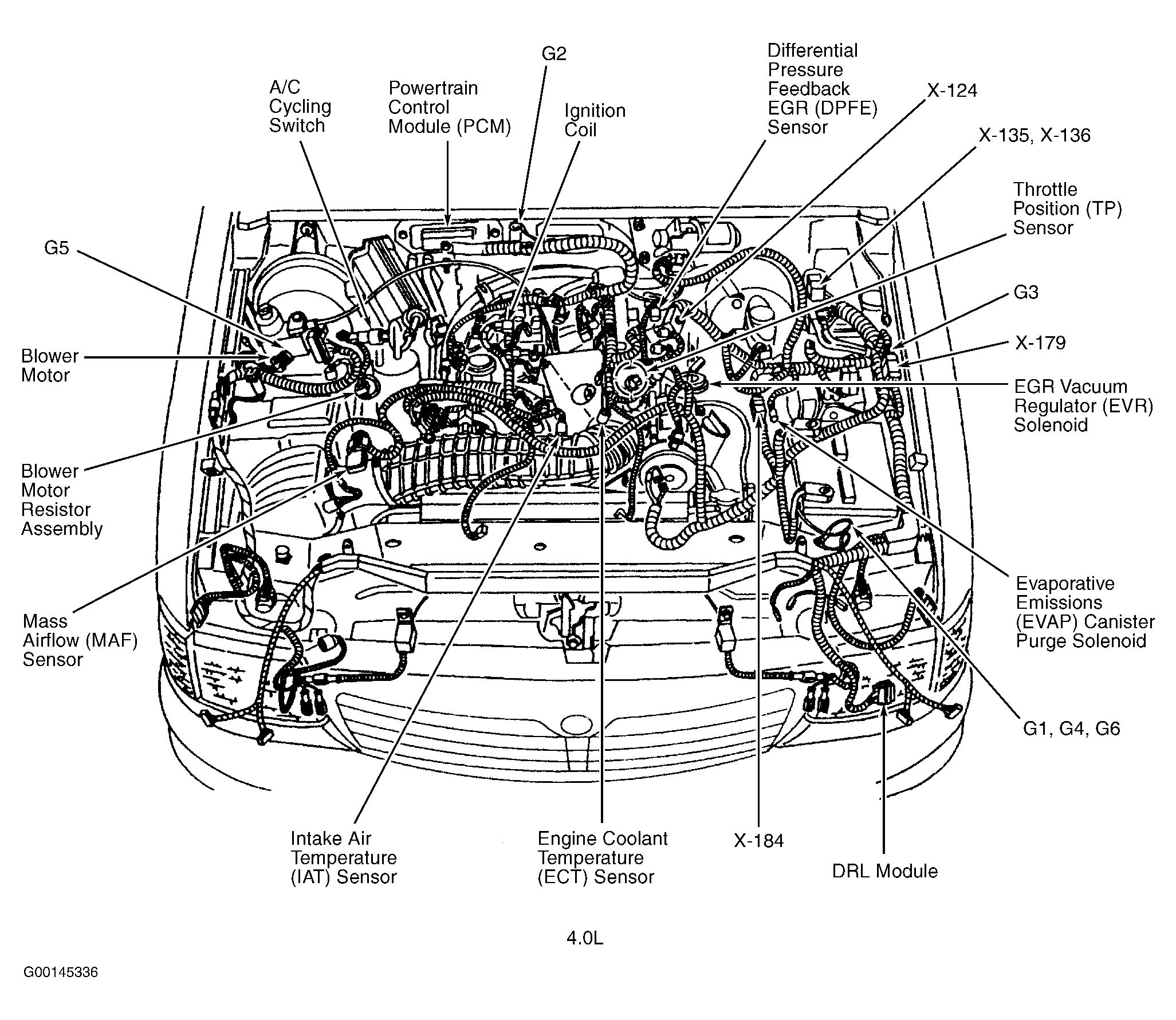

| DRL Module (4.0L) | Left side of lower radiator support. See Figure . |
| Electric Shift Control Module | Behind center of dash. |
| Generic Electronic Module (GEM) | Behind center of dash. |
| Instrument Illumination Dimming Module | Behind left side of dash. |
| Passive Anti-Theft System (PATS) Module | Behind center of dash. |
| Passive Anti-Theft System (PATS) Transceiver Module | Behind left side of dash. |
| Powertrain Control Module (PCM) (2.5L) | Right rear of engine compartment, through firewall. See Figure . |
| Powertrain Control Module (PCM) (3.0L) | Right rear of engine compartment, through firewall. See Figure . |
| Powertrain Control Module (PCM) (4.0L) | Right rear of engine compartment, through firewall. See Figure . |
| Rear Anti-Lock Brake System (RABS) Module | Behind lower center of dash. |
| Remote Anti-Theft Personality (RAP) Module | Behind right kick panel. |
| 4-Wheel Anti-Lock Brake System (4WABS) Module (2.5L) | On left front inner fender panel. See Figure . |
| 4-Wheel Anti-Lock Brake System (4WABS) Module (3.0L) | On left front inner fender panel. See Figure . |
| 4-Wheel Anti-Lock Brake System (4WABS) Module (4.0L) | On left front inner fender panel. See Figure . |
