Retrieving DTCs Procedure

NOTE:

Perform the necessary vehicle preparation and visual inspection. Hook-up the NGS Tester to the vehicle.
Move the cursor to VEHICLE AND ENGINE SELECTION .

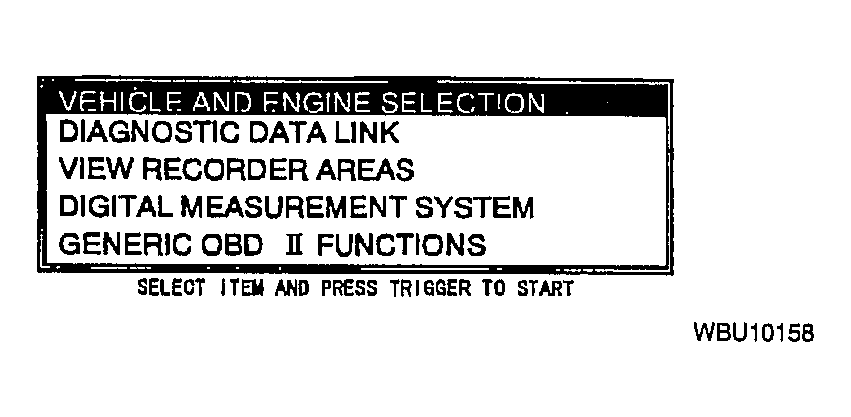

Fig 1: Identifying NGS Tester - Vehicle And Engine Selection
Courtesy of MAZDA MOTORS CORP.
Move the cursor to SELECT NEW VEHICLE YEAR & MODEL . Press the trigger key to enter this selection.

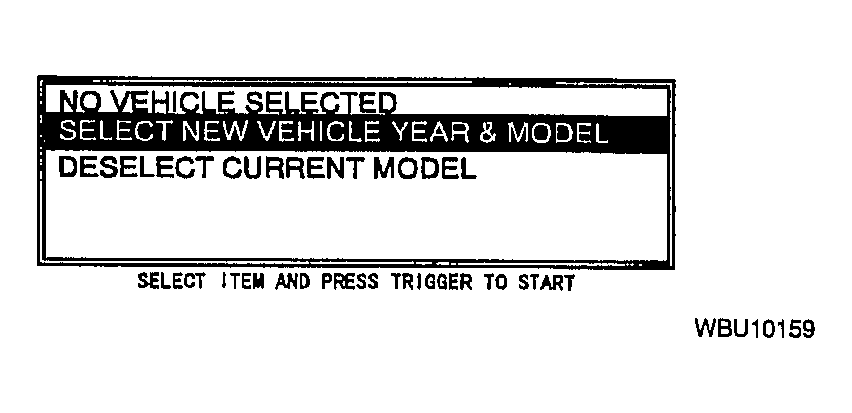

Fig 2: Identifying NGS Tester - Select New Vehicle Year And Model
Courtesy of MAZDA MOTORS CORP.
Move the cursor to 2000 - VIN #10:Y . Press the trigger key enter this selection.
Move the cursor to the appropriate model. Press the trigger key enter this selection.
The vehicle selection screen showing the selected vehicle will be displayed. Move the cursor to the vehicle selected. Press the trigger key.
Move the cursor to DIAGNOSTIC DATA LINK in the main menu screen. Press the trigger key to enter into menu system diagnostics.

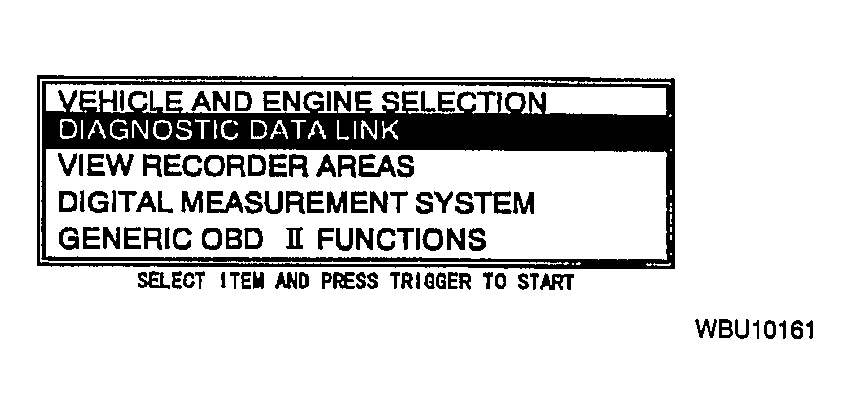

Fig 3: Identifying NGS Tester - Diagnostic Data Link
Courtesy of MAZDA MOTORS CORP.
Move the cursor to PCM . Press the trigger.

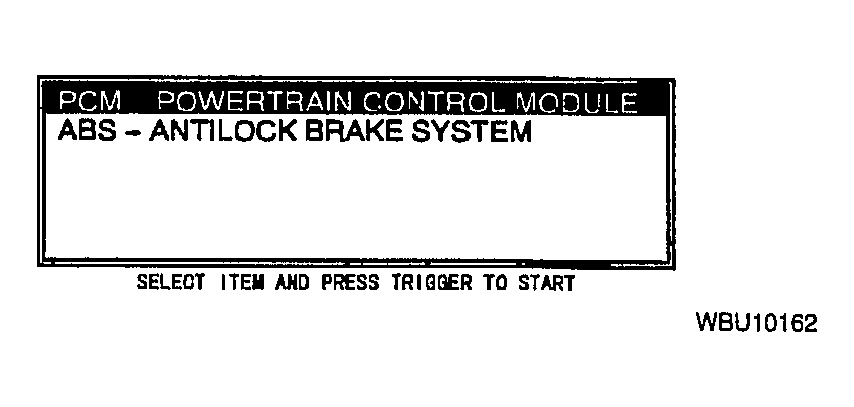

Fig 4: Identifying NGS Tester - PCM
Courtesy of MAZDA MOTORS CORP.
Move the cursor to DIAGNOSTIC TEST MODES. Press the trigger key to enter this selection.

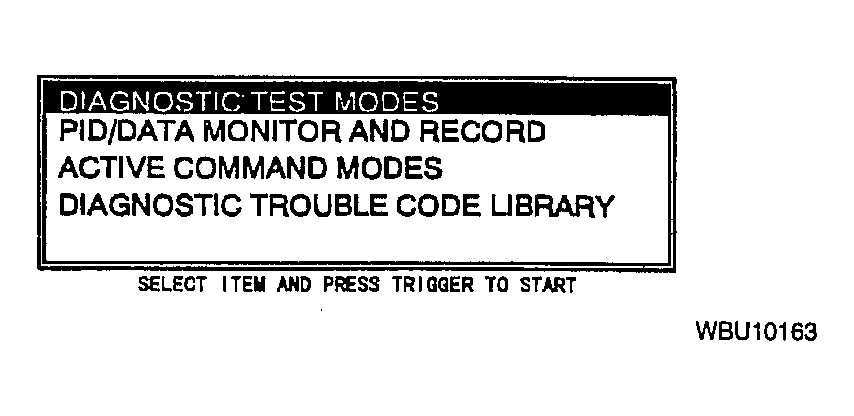

Fig 5: Identifying NGS Tester - Diagnostic Test Modes
Courtesy of MAZDA MOTORS CORP.
Retrieve DTCs as follows:
1. Continuous DTCs
2. KOEO DTCs
3. KOER DTCs

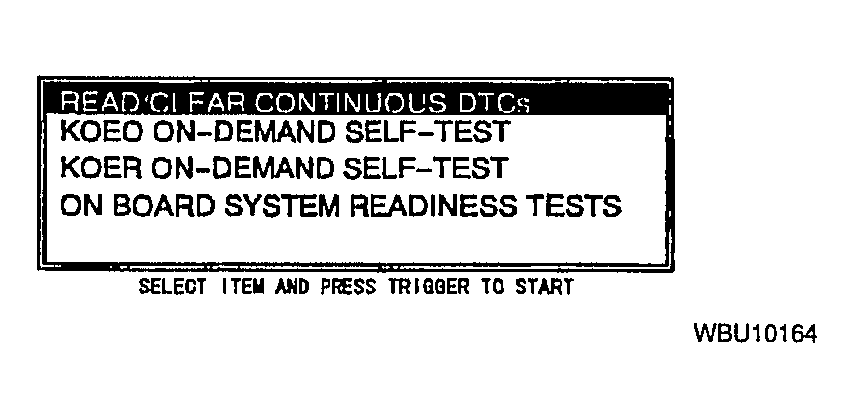

Fig 6: Identifying NGS Tester - Continuous DTCS
