Description & Operation

Power window system is controlled by Generic Electronic Module (GEM). See Fig 1 and Fig 2 . Main switch (master switch) controls all windows. Sub-switch, on passenger's door, controls passenger's window only. On vehicles with "one-touch" function, driver's window opens fully when switch button is pressed firmly and released. To stop window during one-touch operation, press window switch again. One-touch function is part of main switch.

Vehicles are equipped with an accessory delay relay which allows power windows to be operated for up to 10 minutes after ignition switch is turned to LOCK position or until a door is opened.

Fig 1: Locating Power Window Components

Courtesy of MAZDA MOTORS CORP.

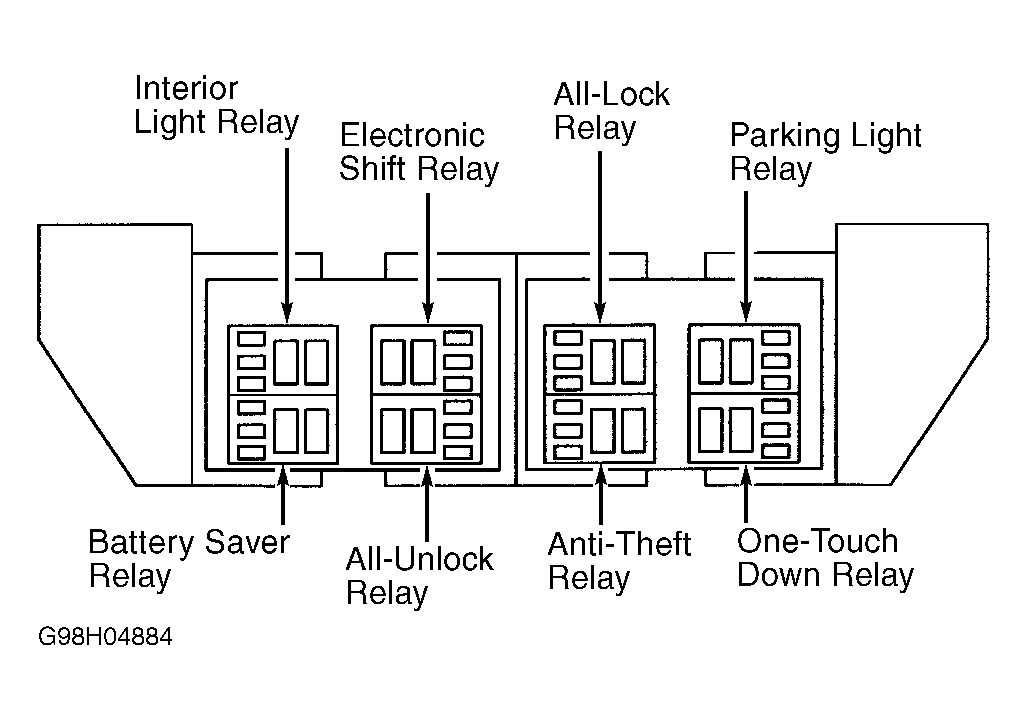

Fig 2: Identifying Relays In Relay Box

Courtesy of MAZDA MOTORS CORP.
