MAZDA Introduction

2000 MODEL COVERAGE

MODEL ENGINE (1) ENGINE ID (2) FUEL SYSTEM IGNITION SYSTEM
B2500 2.5L 4-Cyl. (8-Valve) C SFI EDIS (3)
B3000 3.0L V6 (12-Valve) U SFI EDIS (3)
B4000 4.0L V6 (12-Valve) X SFI EDIS (3)
Miata 1.8L 4-Cyl. (16-Valve) 3 SFI EDIS (3)
Millenia S 2.3L V6 (24-Valve) 2 SFI DIS (4)
Millenia 2.5L V6 (24-Valve) 1 SFI Hall Effect
MPV 2.5L V6 (24-Valve) G SFI DIS (4)
Protege 1.6L 4-Cyl. (16-Valve) 2 Or 4 SFI Hall Effect
1.8L 4-Cyl. (16-Valve) 1 Or 3 SFI Hall Effect
626 2.0L 4-Cyl. (16-Valve) C SFI Hall Effect
2.5L V6 (24-Valve) D SFI Hall Effect
(1) Engine may be identified by 8th character of Vehicle Identification Number (VIN).
(2) For location, see ENGINE CODE LOCATION .
(3) Electronic Distributorless Ignition System (EDIS).
(4) Distributorless Ignition System (DIS).

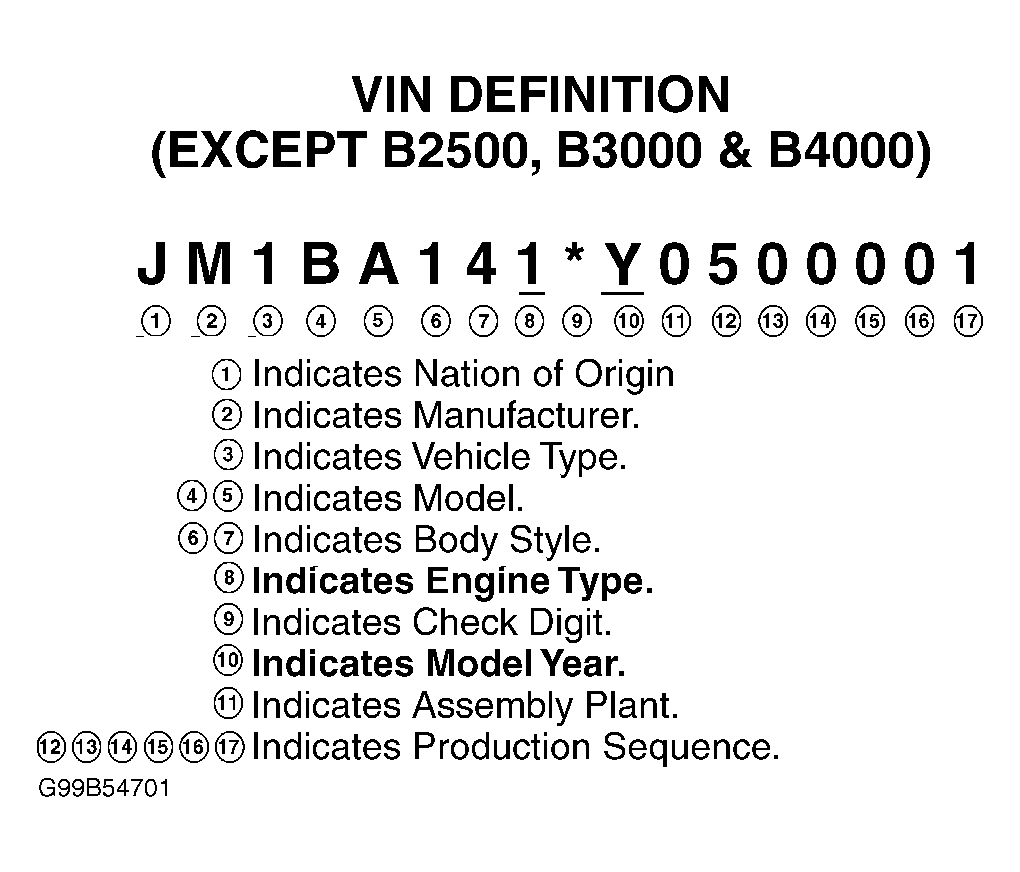

Fig 1: VIN Definition (Except B2500, B3000 & B4000)
G99B54701

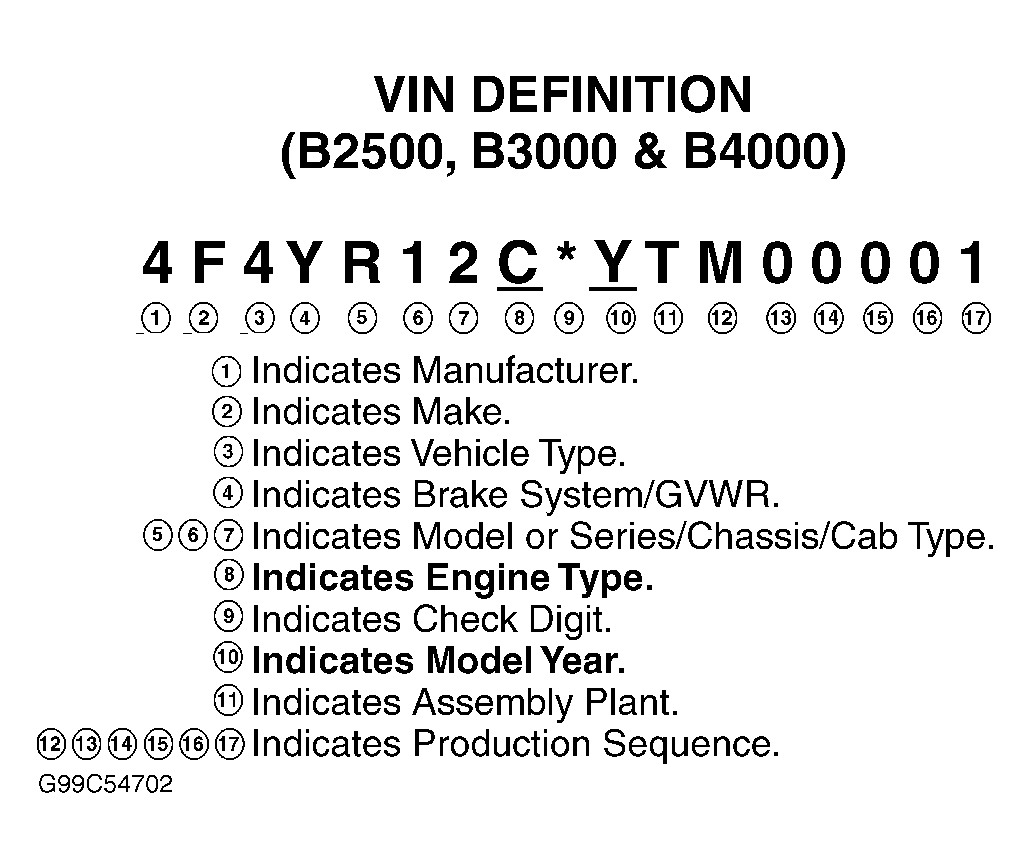

Fig 2: VIN Definition (B2500, B3000 & B4000)
G99C54702
