Output Test Mode Procedure
- Perform the "New Generation Star (NGS) Tester Hook-Up Procedure".
- Perform step 1 through step 9 from the "Retrieving DTCs Procedure".
- Turn key on.

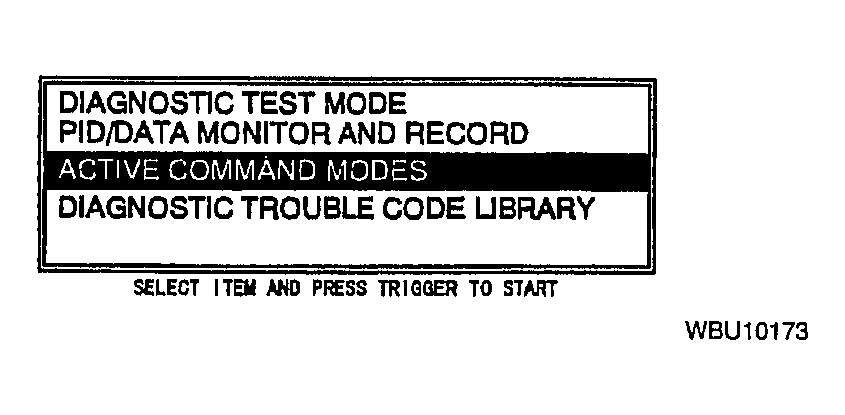

- Move the cursor to ACTIVE COMMAND MODES
. Press the trigger key to enter this selection.
Courtesy of MAZDA MOTORS CORP.
- Move the cursor to OUTPUT TEST MODE
. Press the trigger key to enter this selection.
- Press MODE
(Key #3) repeatedly to change the mode from ALL ON
to LOW FAN, HIGH FAN
, and ALL OFF
. Return the mode to ALL ON
.
- Press START
(Key #4) to run the fuel pump. Press STOP
(Key #4) to turn off the fuel pump.
- To open and close certain actuators in the emission system, press PIDS
(Key #7).
- Press CLEAR
(Key #5) to clear previous selected PIDs.
NOTE:
- To select desired PIDs, place the shaded bar over the item(s) and press trigger. A star symbol appears next to the item when it's selected. Press START
(Key #7). The selected PID(s) and values appear.
- You can select 30 PIDs at a time.
- Press START
(Key #4) to turn on the fuel pump. Observe the values change from OFF
to ON
or from 0% to 100%. Press STOP
(Key #4) to turn off the fuel pump.
- Press CANCEL
.
