Abs Control Module

Turn ignition switch to OFF position. Test ABS CM using DVOM and Adapter Harness (49-L066-001 ) connected to ABS CM connector. Measure voltage between applicable terminal and terminal "A" (ground) of ABS CM connector. See Figure . If voltage, continuity or resistance is not as specified, replace ABS CM. See Fig 1 .

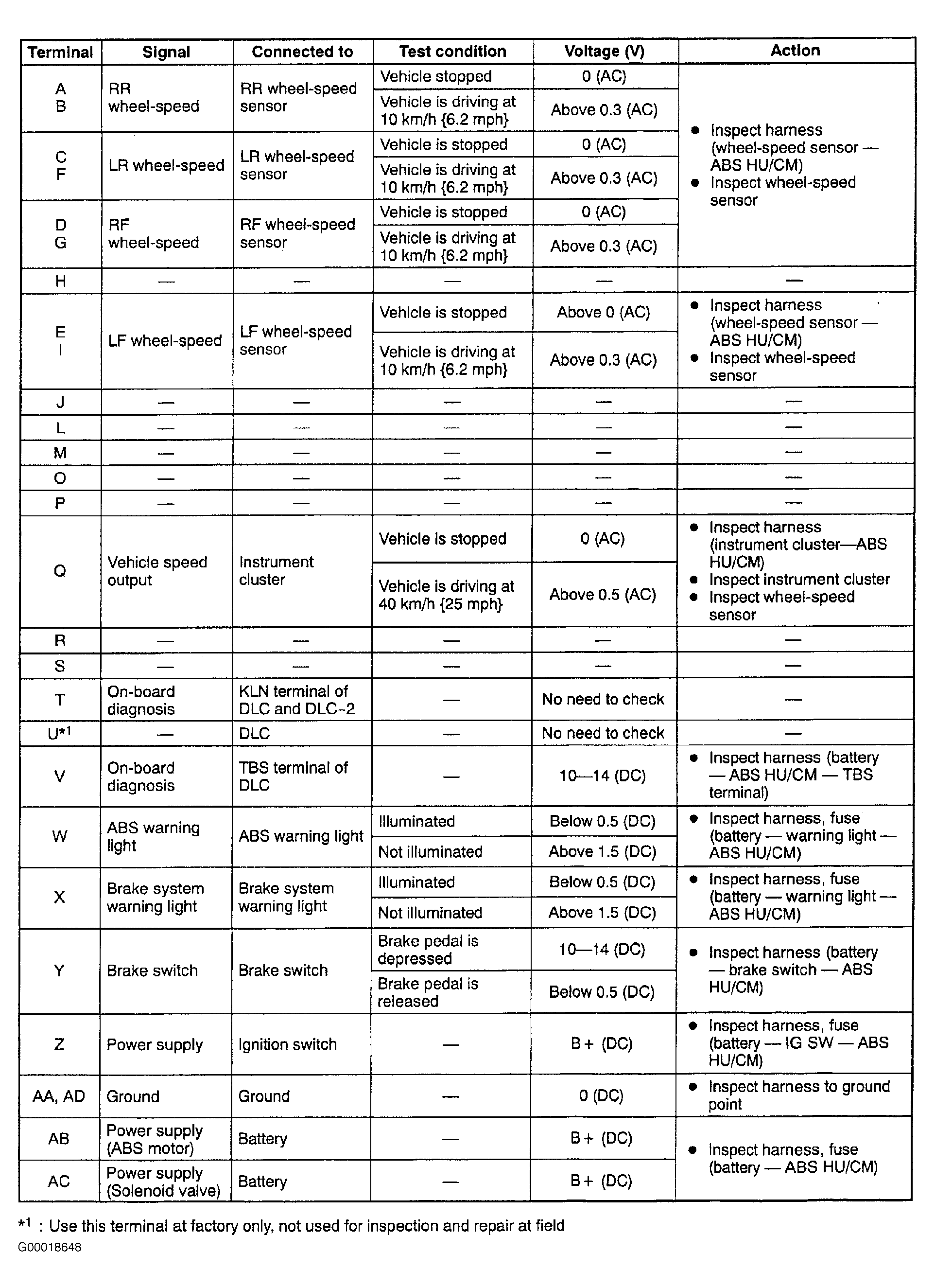

Fig 1: Testing ABS Control Module

Courtesy of MAZDA MOTORS CORP.
