Power Mirror Motor

Disconnect power mirror motor harness connector (remove door trim panel if necessary). See POWER MIRROR ASSEMBLY  under REMOVAL & INSTALLATION. Apply battery voltage and ground to specified terminals of power mirror motor connector. See Fig 1 through Fig 5 . If mirror does not move as specified, replace power mirror assembly.

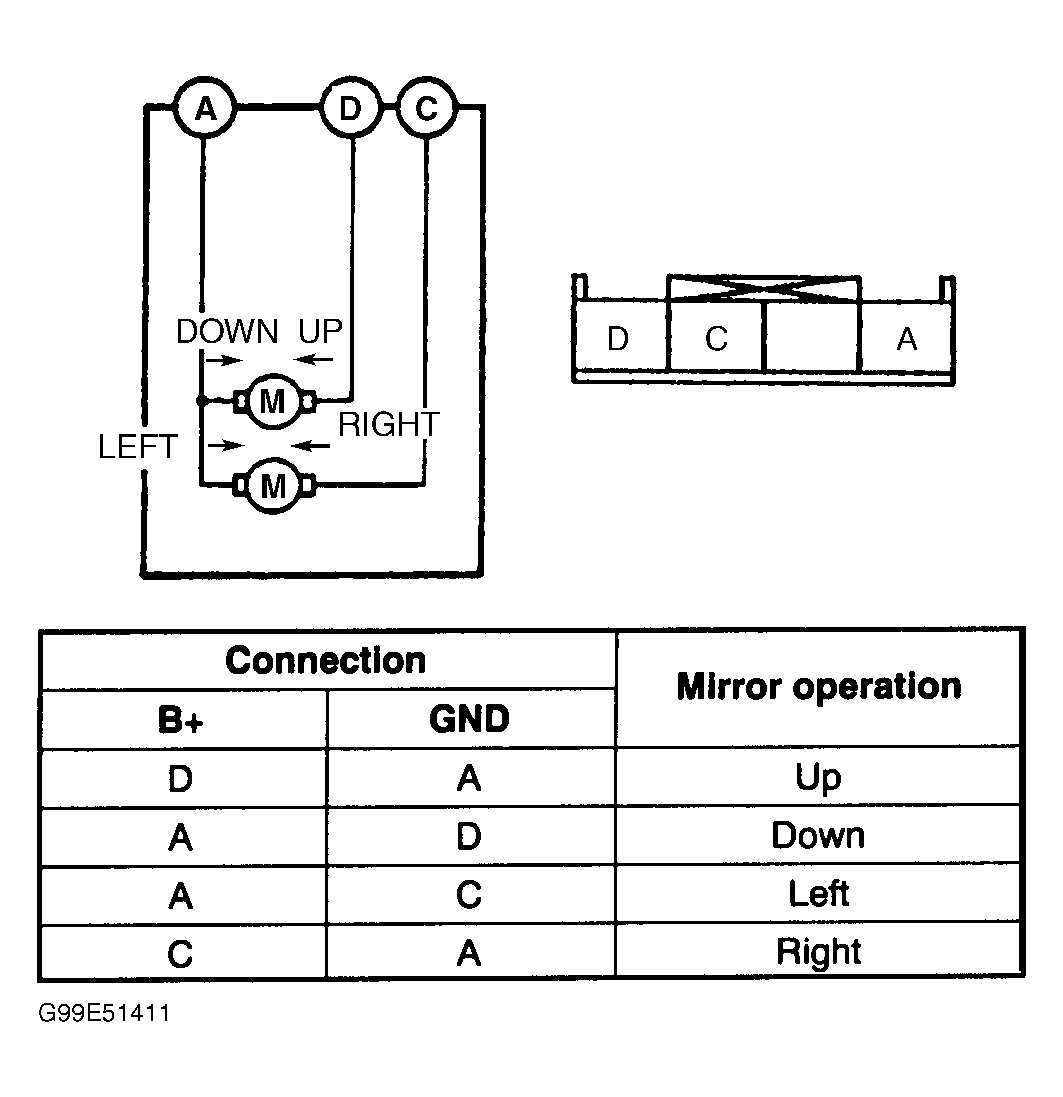

Fig 1: Testing Power Mirror Motor (Millenia)

Courtesy of MAZDA MOTORS CORP.

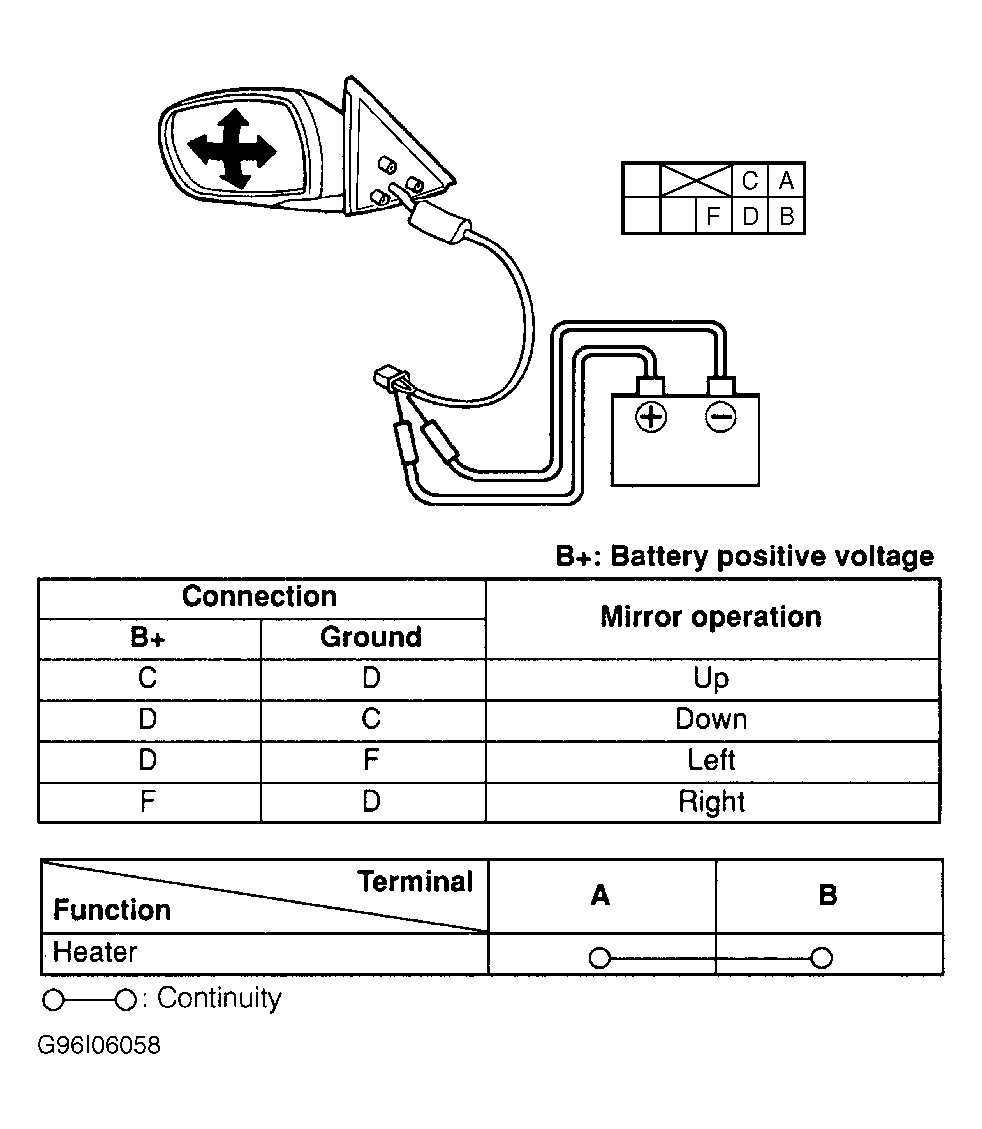

Fig 2: Testing Power Mirror Motor (MPV)

Courtesy of MAZDA MOTORS CORP.

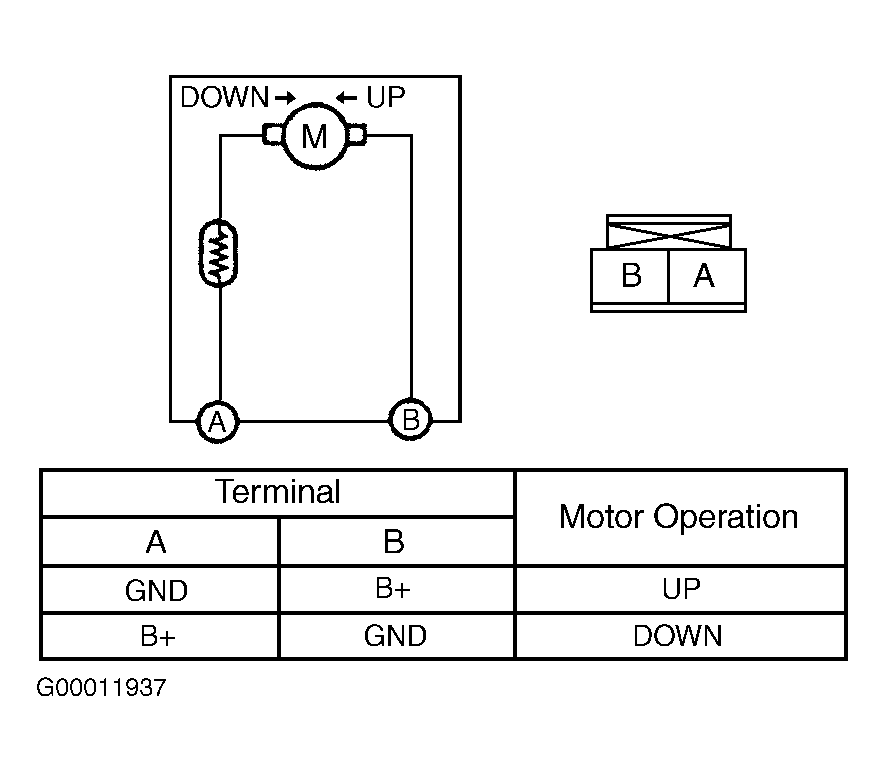

Fig 3: Testing Power Mirror Motor (MX-5 Miata)

Courtesy of MAZDA MOTORS CORP.

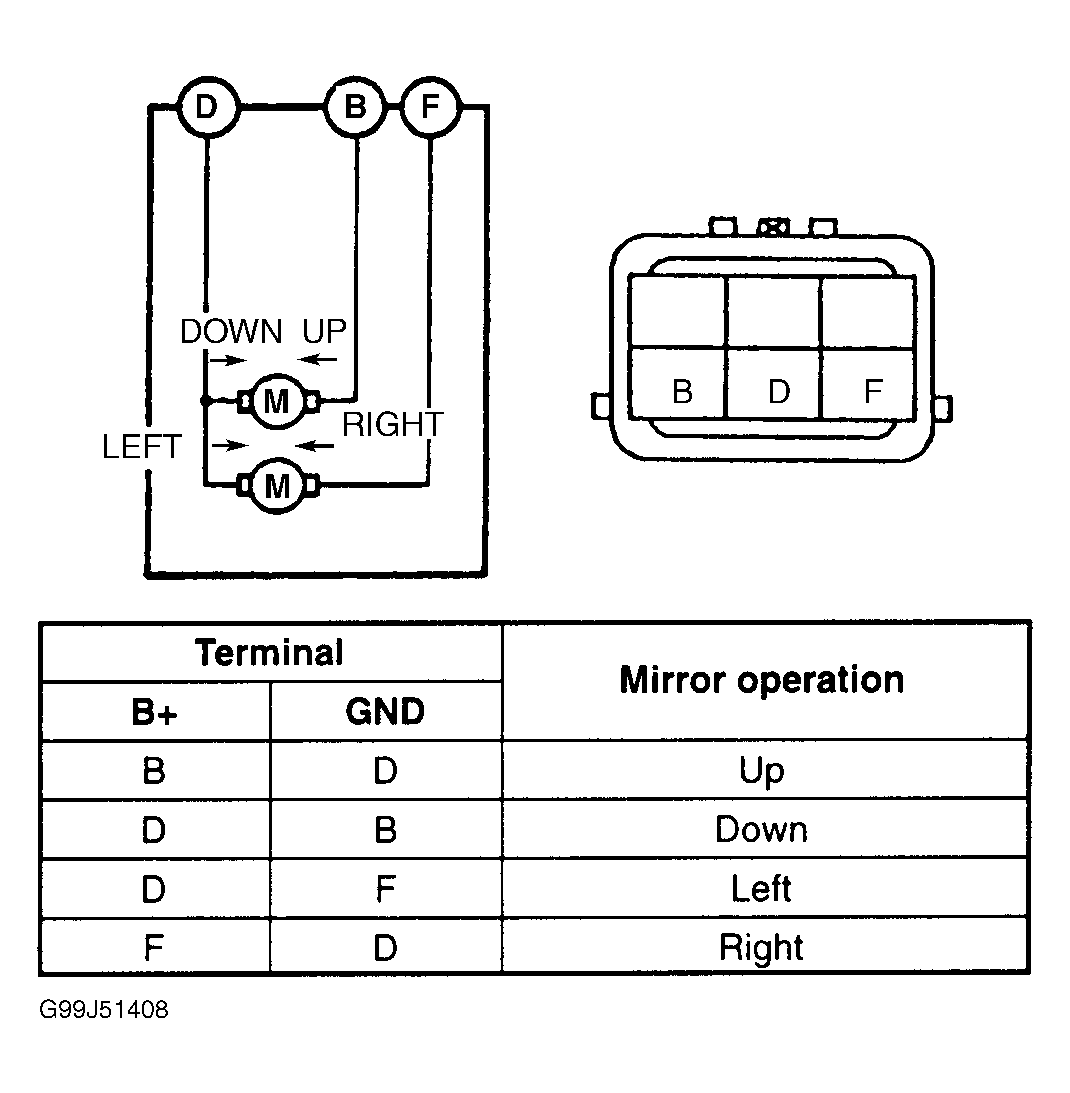

Fig 4: Testing Power Mirror Motor (Protege)

Courtesy of MAZDA MOTORS CORP.

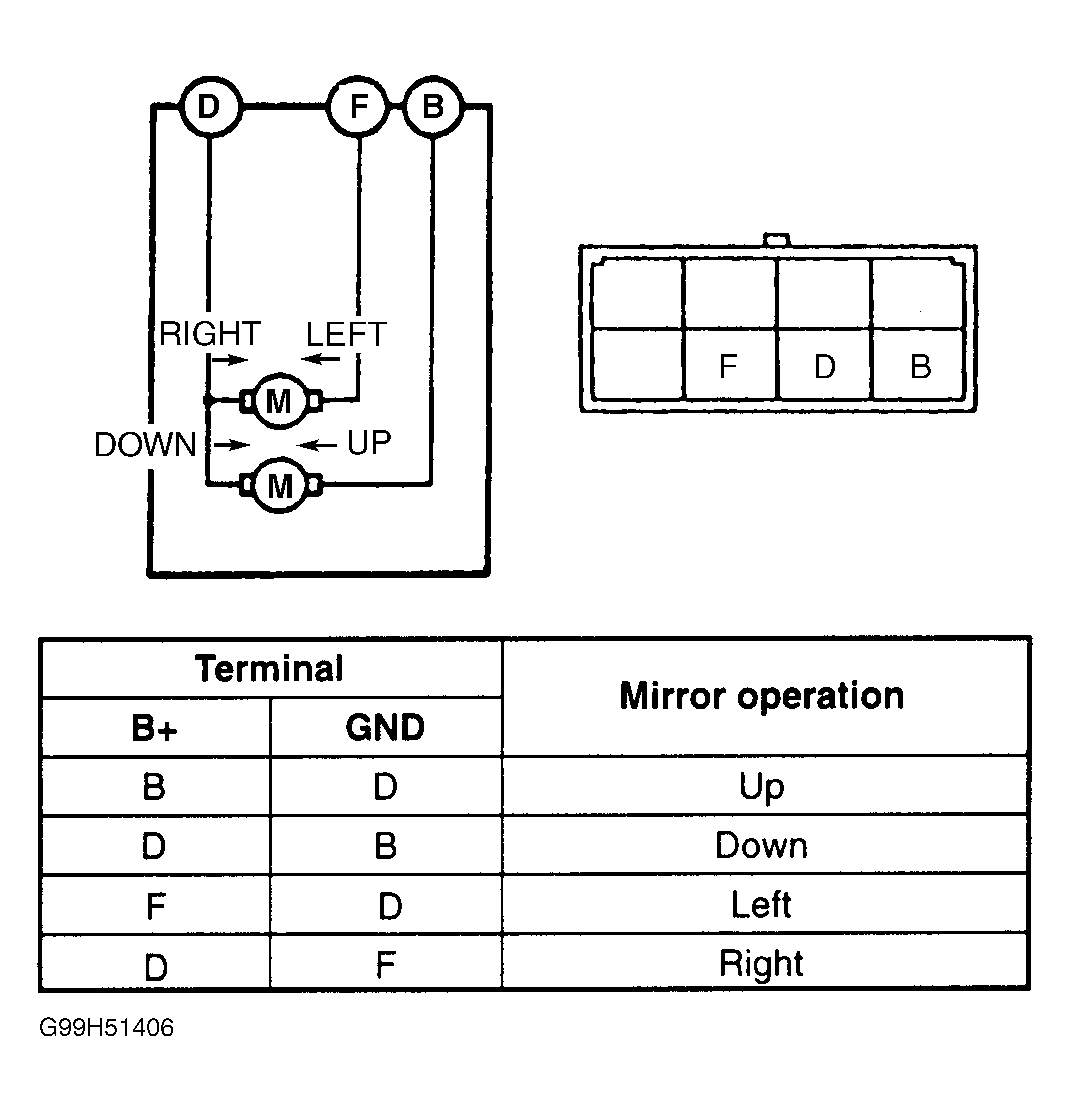

Fig 5: Testing Power Mirror Motor (626)

Courtesy of MAZDA MOTORS CORP.
