Generators & Regulators: Overhaul

NOTE: See Fig 1 for overhaul.

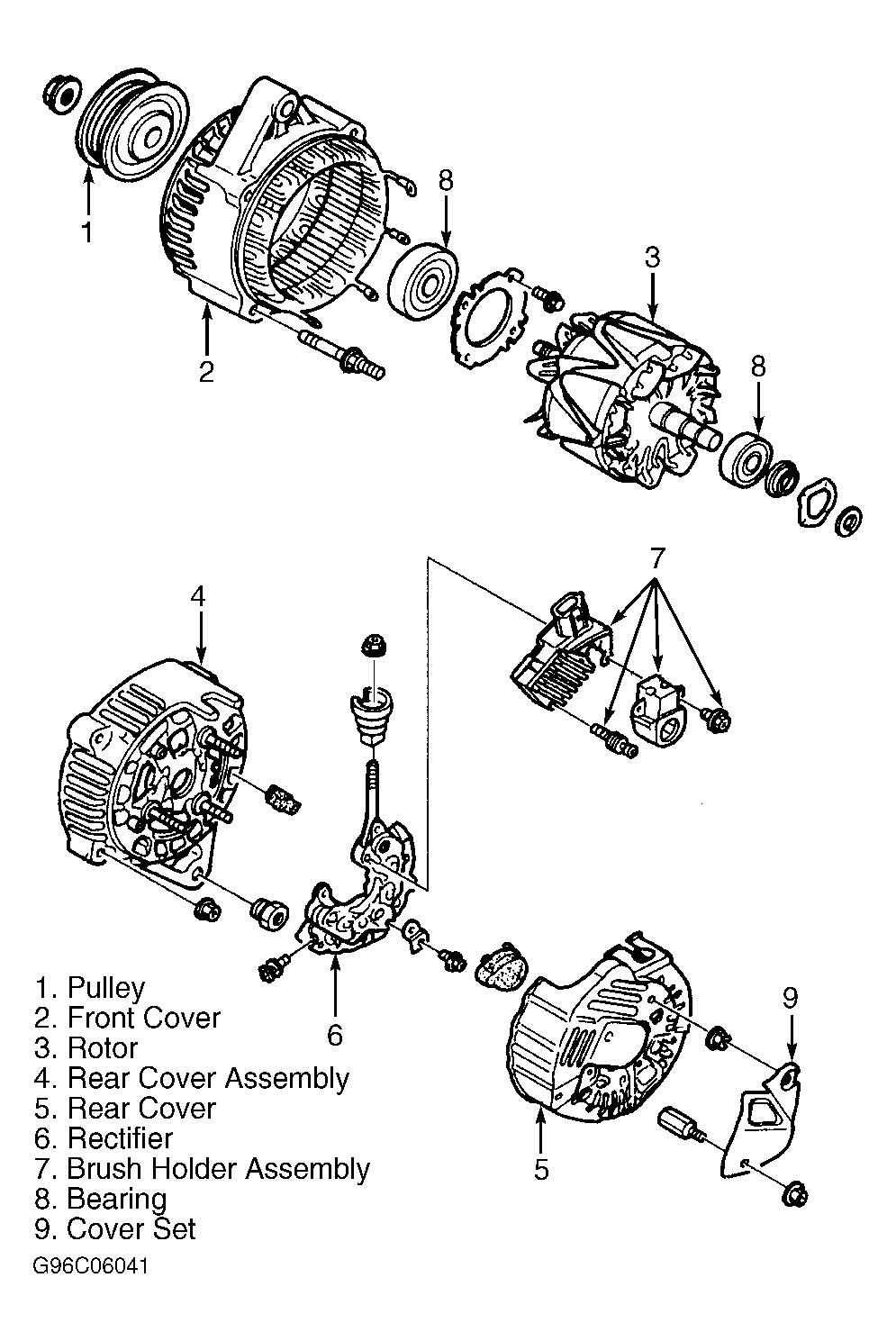

Fig 1: Exploded View Of Generator (Millenia)
G96C06041Courtesy of MAZDA MOTORS CORP.
