Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Joint Box At left kick panel. See Figure .

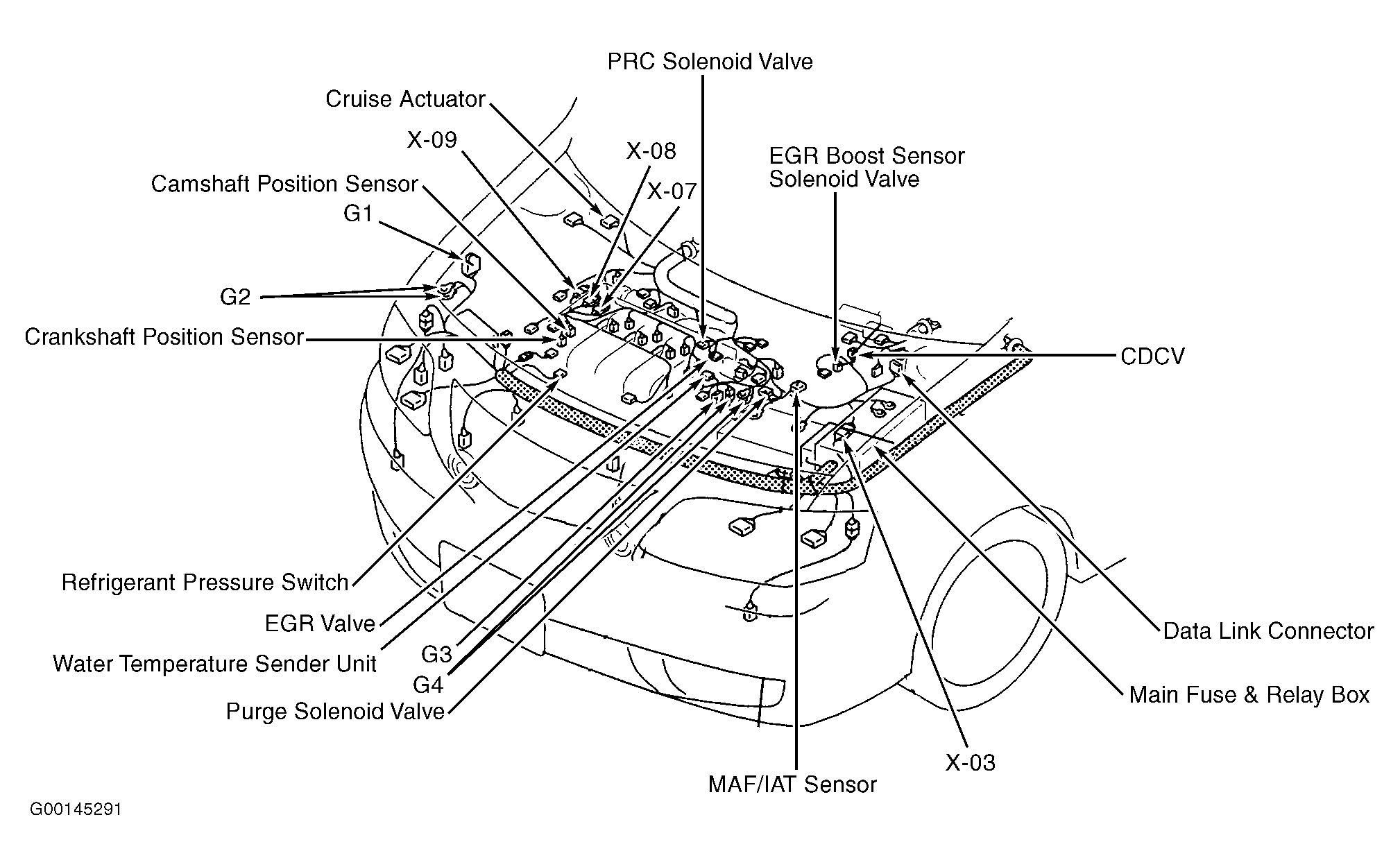

Main Fuse & Relay Box At left side of engine compartment. See Figure .

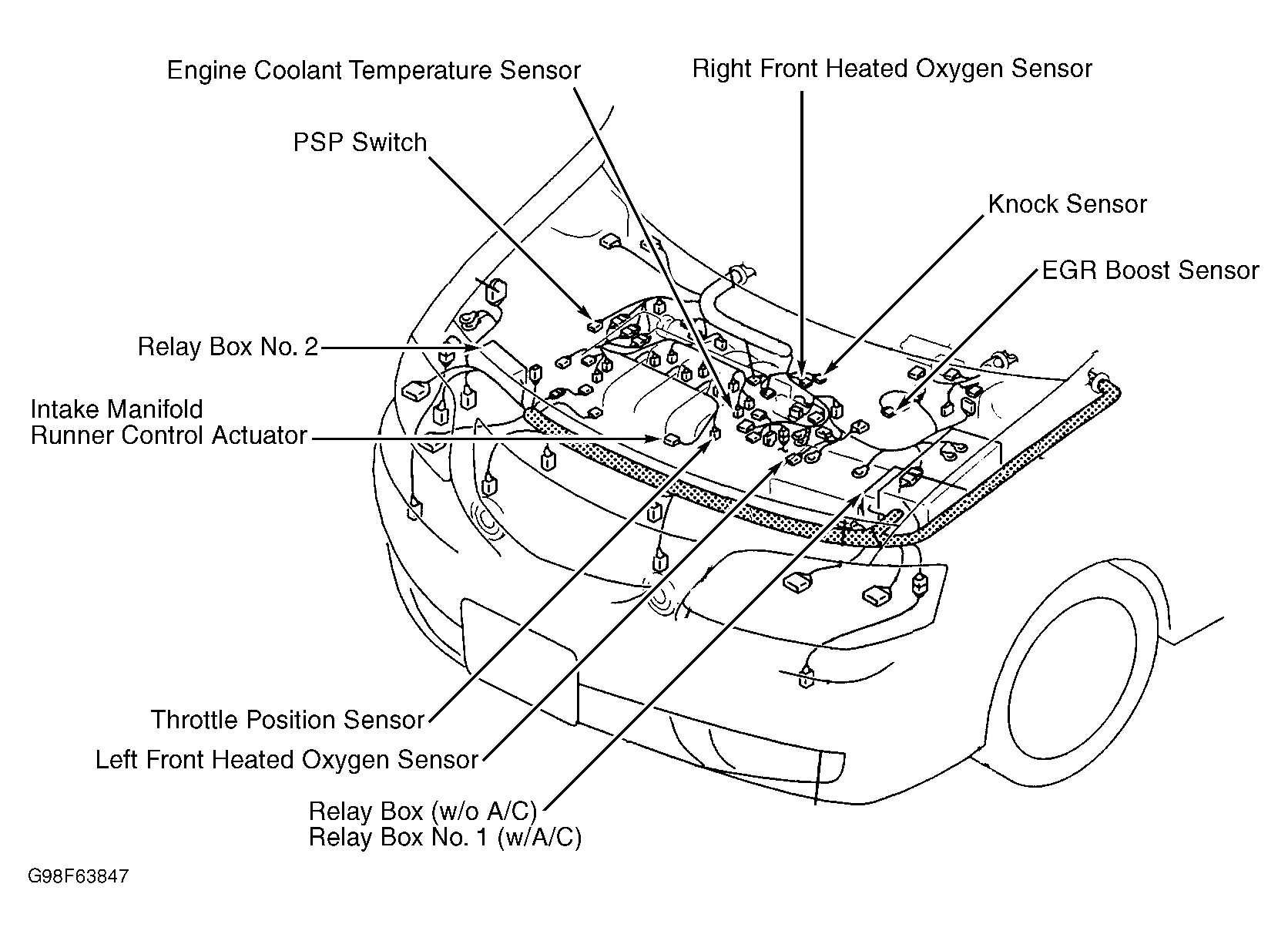

Relay Box (W/O A/C) At left front corner of engine compartment. See Figure .
Relay Box No. 1 (W/ A/C) At left front corner of engine compartment. See Figure .
Relay Box No. 2 At right front corner of engine compartment. See Figure .
