Pinpoint Test 1: Unable To Configure The New Module
WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

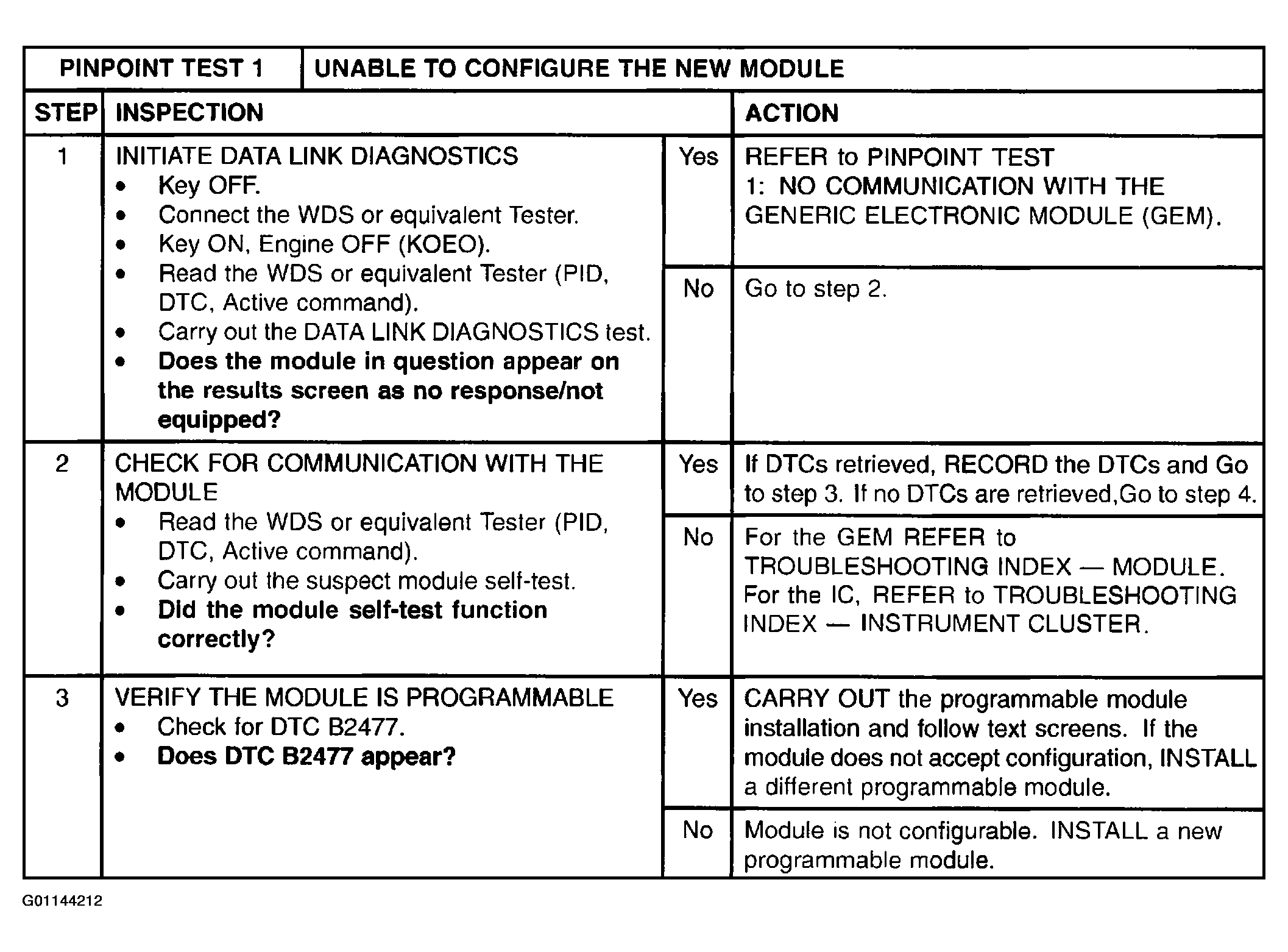

Fig 1: Pinpoint Test 1: Unable To Configure The New Module (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

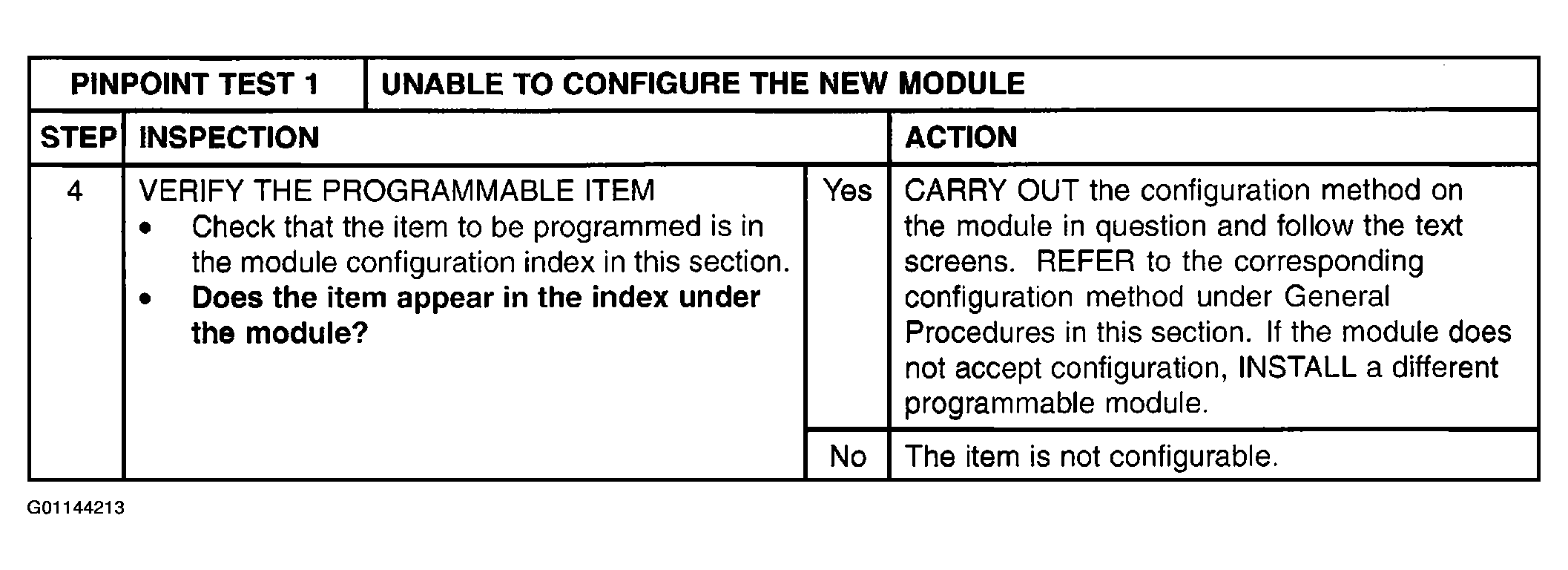

Fig 2: Pinpoint Test 1: Unable To Configure The New Module (Step 4)
