Component Locations
COMPONENT LOCATIONS
| Component | Location | |||||
|---|---|---|---|---|---|---|
| Engine Coolant Temperature Sensor | On Engine, Next To Coolant Filler Cap | |||||
| Powertrain Control Module | Mounted To Inner Firewall, Behind Glove Box & Air Duct | |||||

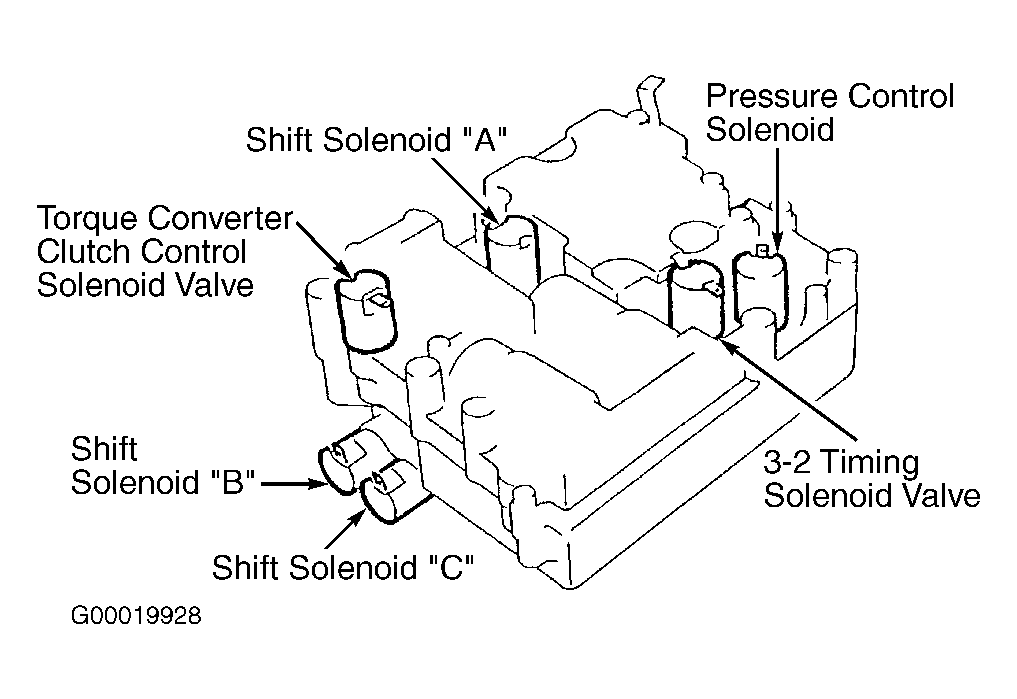

| Pressure Control Solenoid | (1) | |||||
| Shift Solenoids "A", "B" & "C" | (1) | |||||
| Torque Converter Clutch Control Solenoid | (1) | |||||
| 3-2 Timing Solenoid | (1) | |||||
| Input/Turbine Speed Sensor | On Top End Of Transaxle | |||||
| Vehicle Speed Sensor | ||||||
| With Anti-Lock Brake System | (2) | |||||
| Without Anti-Lock Brake System | Mounted On Transaxle, Near Differential. | |||||
|
||||||
