Park Position Switch: MPV

Disconnect negative battery cable. Remove steering column cover. Disconnect park position switch/shift lock solenoid connector. Check for continuity between terminals "A" and "B". See Fig 1 . Continuity should exist with selector lever in any position except "P". Replace as needed.

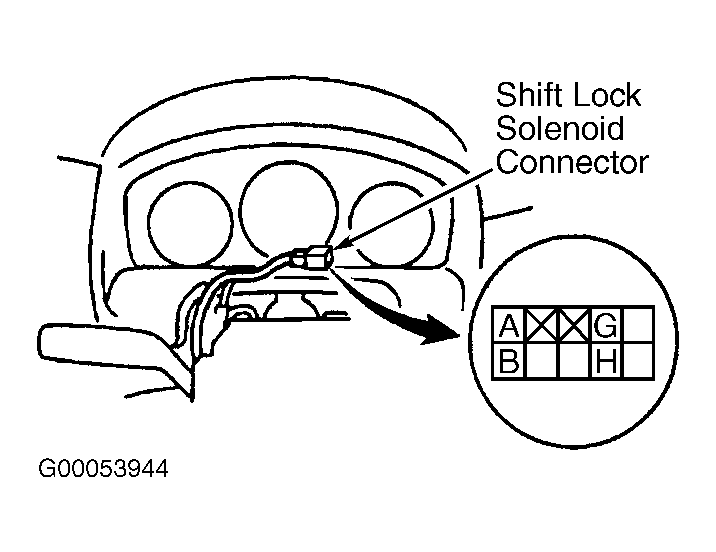

Fig 1: Identifying Shift Lock Solenoid Connector Terminals

Courtesy of MAZDA MOTORS CORP.
