When Customer Has Only One Valid Key (Code Word Is Required)

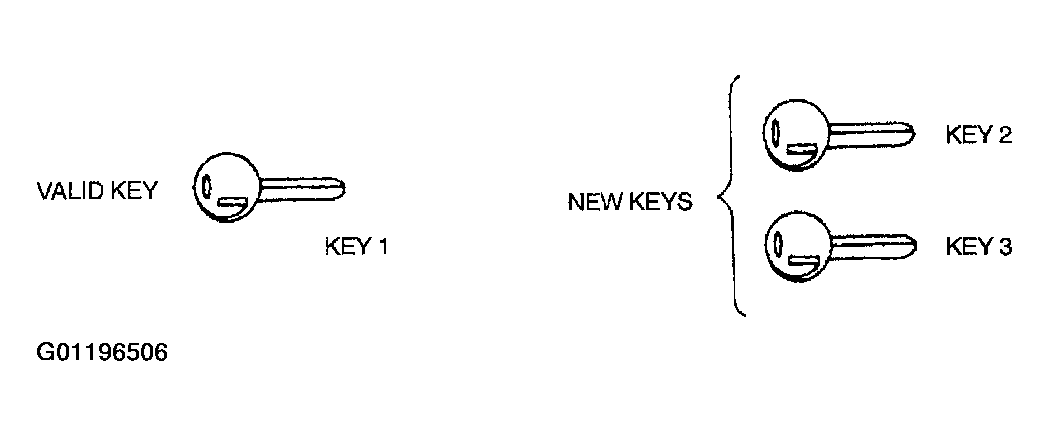

Fig 1: Illustration Of Keys

NOTE:

• If no specific time interval is given, each step should be performed within 30 seconds of the previous step.

1. Cut new transponder equipped key(s) if necessary.
2. Replace PCM. See PCM  .
3. Using key 1, turn ignition switch to ON position. Observe that security light illuminates (for 1-2 seconds  ) in instrument cluster.
   1. Turn key 1 to LOCK position and remove from steering lock.
4. Using key 2, turn ignition switch to ON position then back to LOCK position six times  . The key should not remain at ON position or LOCK position for more than 1 second  . It is particularly important to ensure that the 6th turn is done within 1 second.
   1. Observe flashing of security light (300 ms  ON-300 ms  OFF) in instrument cluster.
   2. Wait for 5 minutes  until security light decreases in flashing frequency to 1.2 seconds.
   3. Input code word. See CODE WORD INPUT PROCEDURE  .
   4. Observe the security light stops flashing and illuminates.
   5. Turn key 2 to ON position. Observe that security light illuminates (for 1-2 seconds  ).
   6. Turn key 2 to LOCK position and remove from steering lock.
5. Using key 3, start engine. Observe that security light illuminates (for 1-2 seconds  ) and engine continues to run.
   1. Turn key 3 to LOCK position and remove from steering lock.
6. Repeat Step  5 with key 1.
7. If there are 4-8 keys (valid and/or new keys), repeat Step  5 .
8. Wait for 30 seconds  to quit reprogram mode.
9. After reprogramming, clear DTC of PCM with WDS or equivalent.
