Power Mirror Switch

Disconnect power mirror switch harness connector (remove power mirror switch if necessary). See POWER MIRROR SWITCH  under REMOVAL & INSTALLATION. With power mirror switch in specified position, check continuity between specified terminals of switch connector. See Fig 1 through Fig 4 . If continuity is not as specified, replace power mirror switch.

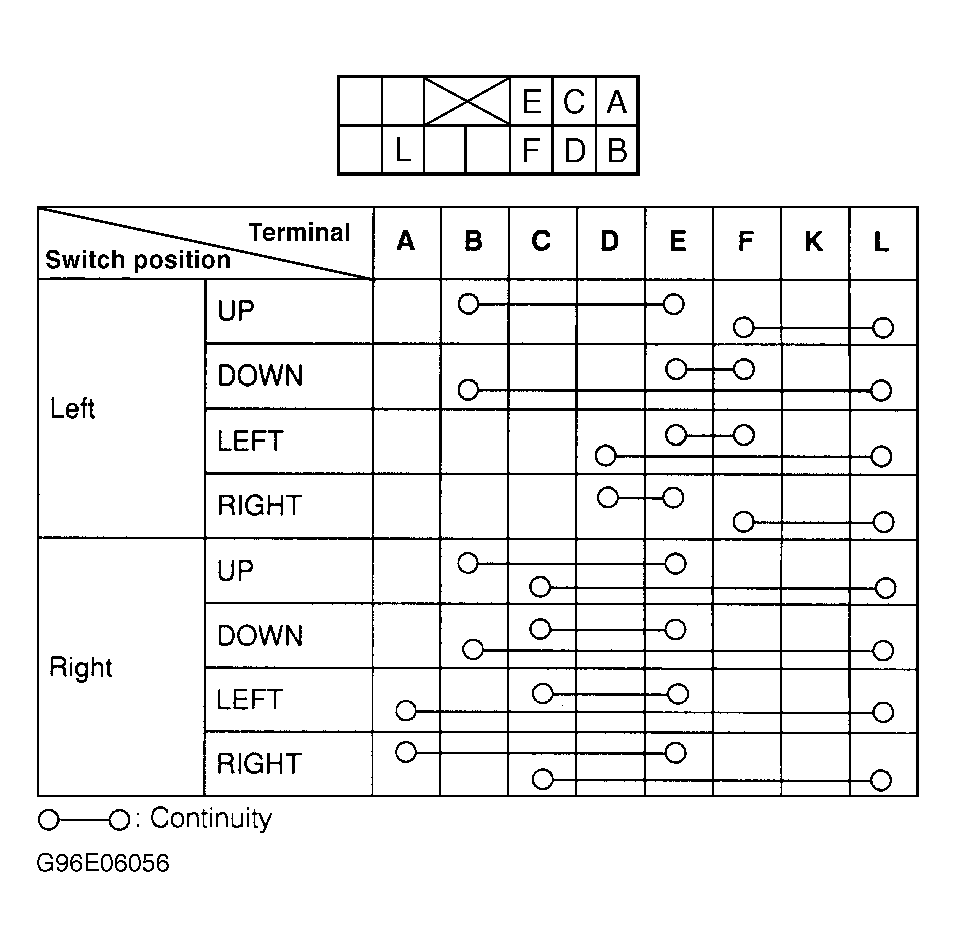

Fig 1: Testing Power Mirror Switch (Millenia)

Courtesy of MAZDA MOTORS CORP.

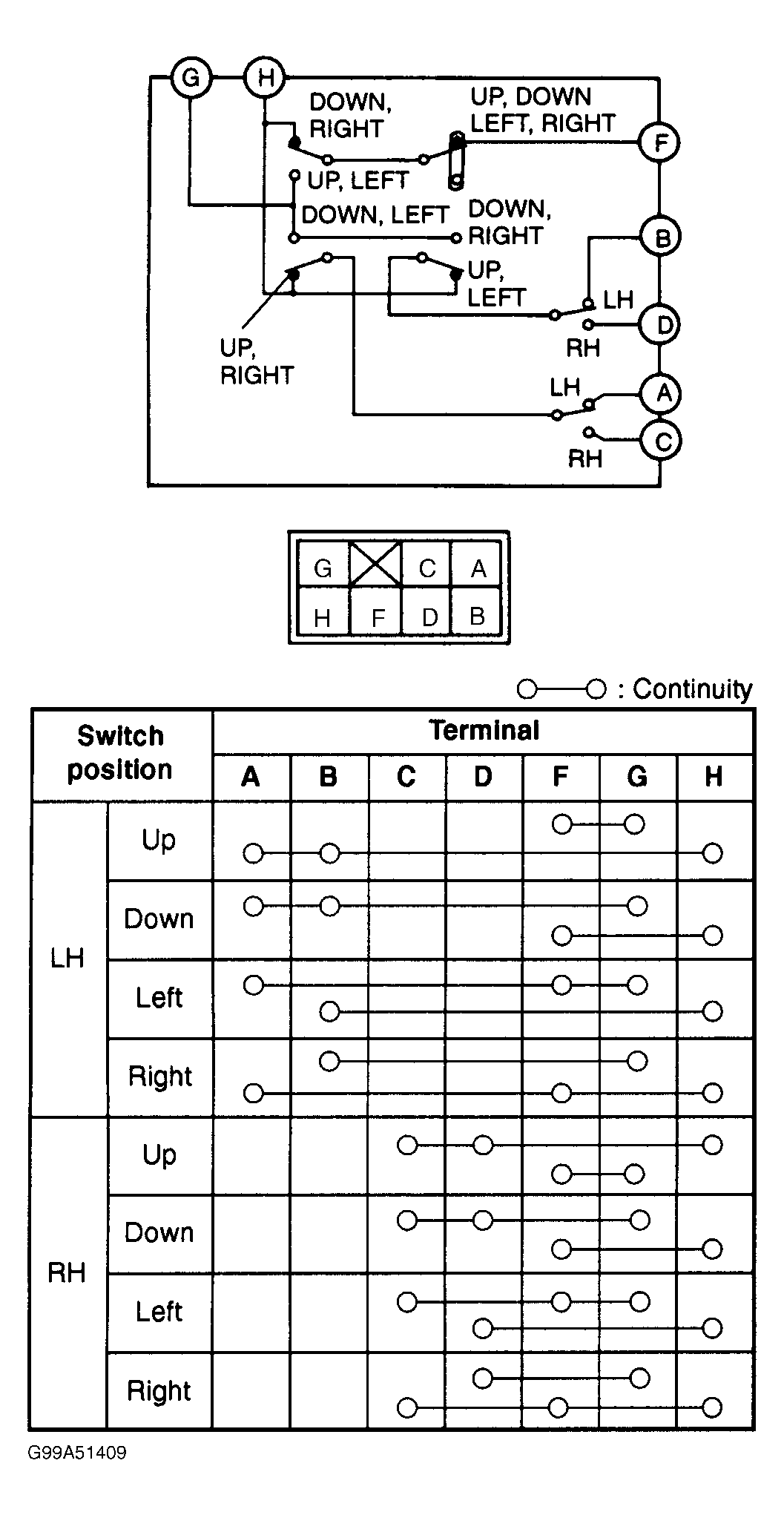

Fig 2: Testing Power Mirror Switch (MX-5 Miata)

Courtesy of MAZDA MOTORS CORP.

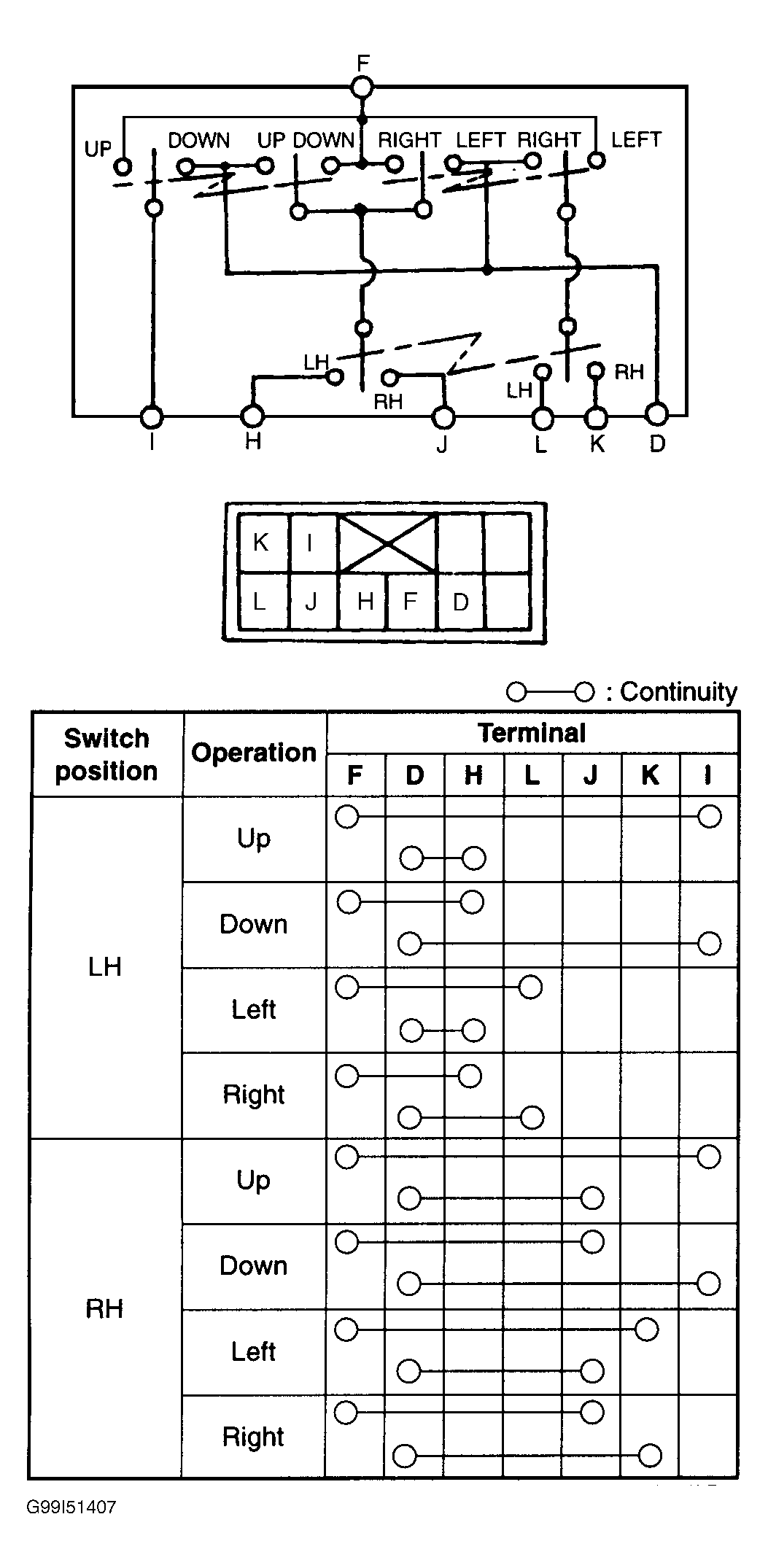

Fig 3: Testing Power Mirror Switch (MPV & Protege)

Courtesy of MAZDA MOTORS CORP.

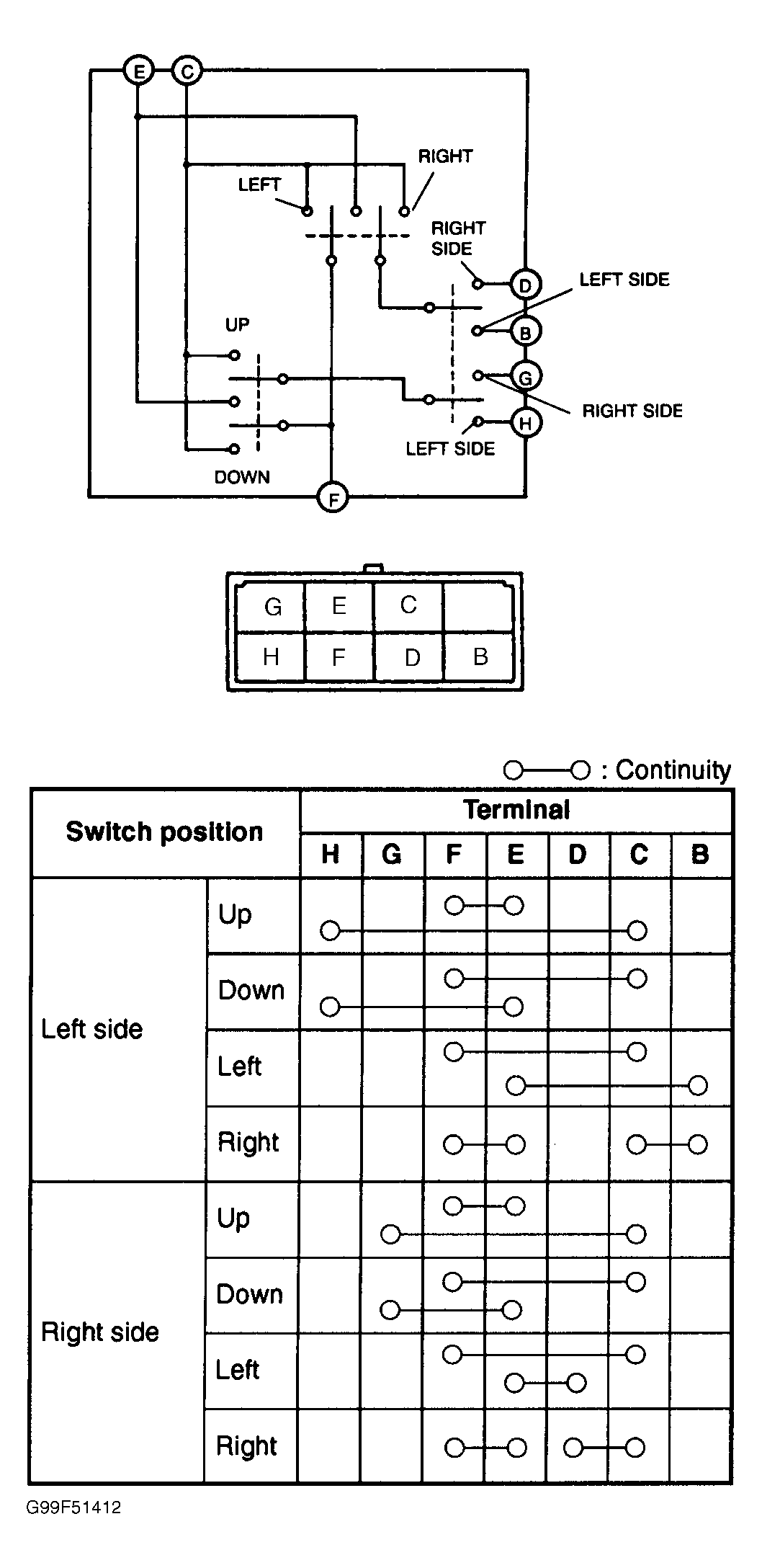

Fig 4: Testing Power Mirror Switch (626)

Courtesy of MAZDA MOTORS CORP.
