Crankshaft Position Sensor Resistance

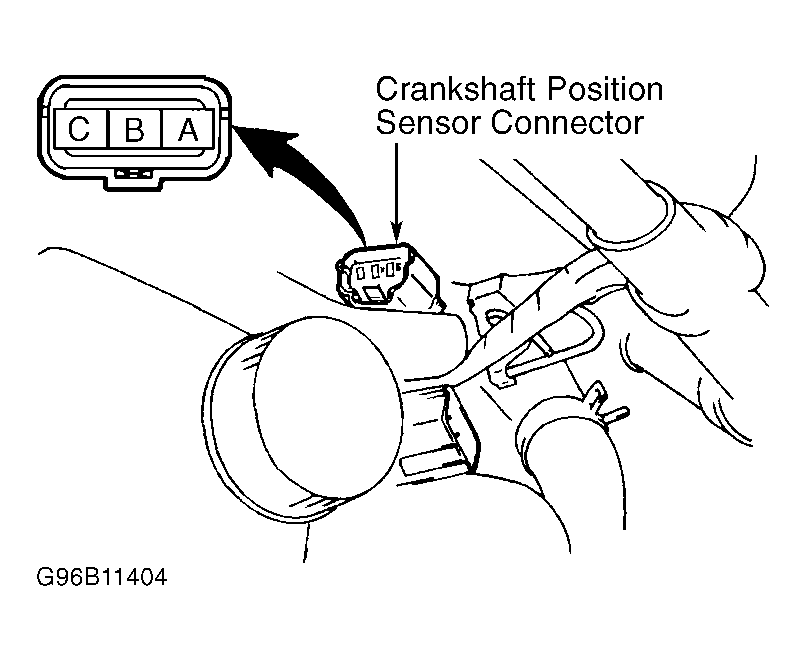

Disconnect crankshaft position sensor connector. Using ohmmeter, measure resistance between terminals "A" and "B". See Fig 1 . Resistance should be as specified. See CRANKSHAFT POSITION SENSOR RESISTANCE table. If resistance is not as specified, replace crankshaft position sensor.
CRANKSHAFT POSITION SENSOR RESISTANCE
| Application | Ohms @ 68°F (20°C) | |||
|---|---|---|---|---|
| Miata | (1) | |||
| Millenia | ||||
| 2.3L | 950-1250 | |||
| 2.5L | 520-580 | |||
| Protege | 500-600 | |||
| 626 | 520-580 | |||
|
||||
