Pinpoint Test 1: No Module/Network Communication - SCP Link
WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

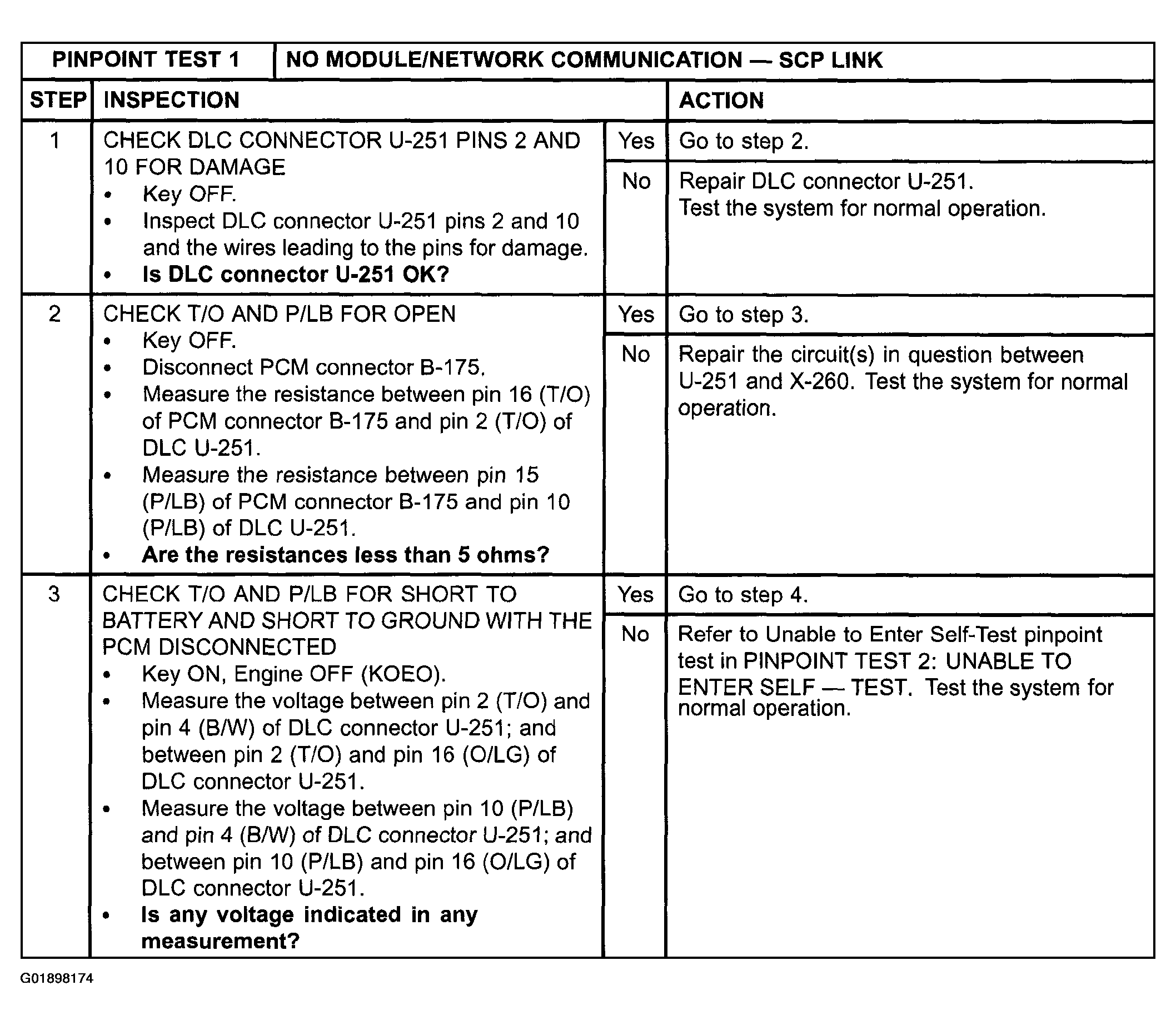

Fig 1: Pinpoint Test 1: No Module/Network Communication - SCP Link (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

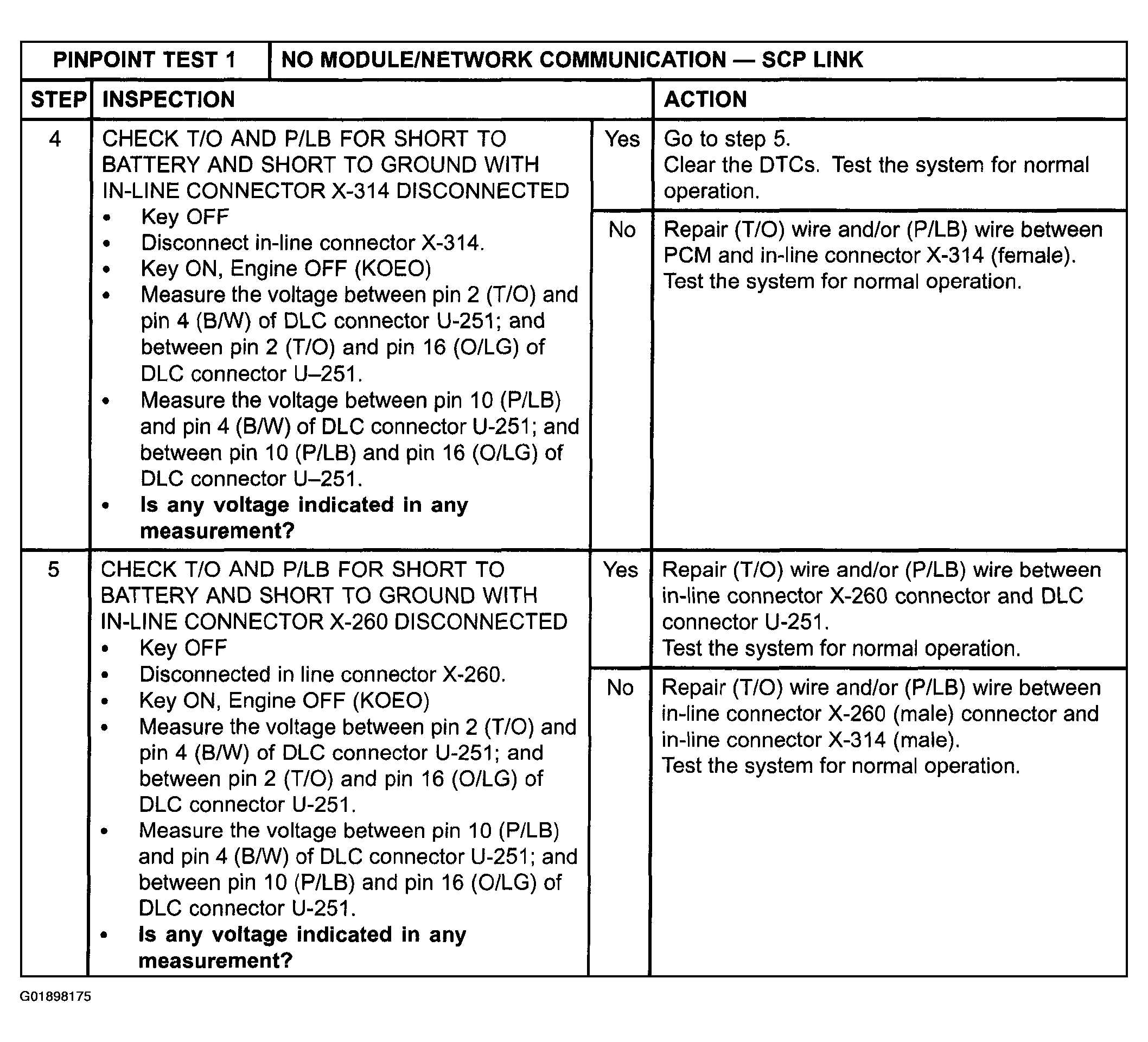

Fig 2: Pinpoint Test 1: No Module/Network Communication - SCP Link (Steps 4-5)
