Anti-Lock Brake Control Module Diagnostic Trouble Code (DTC) Index

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

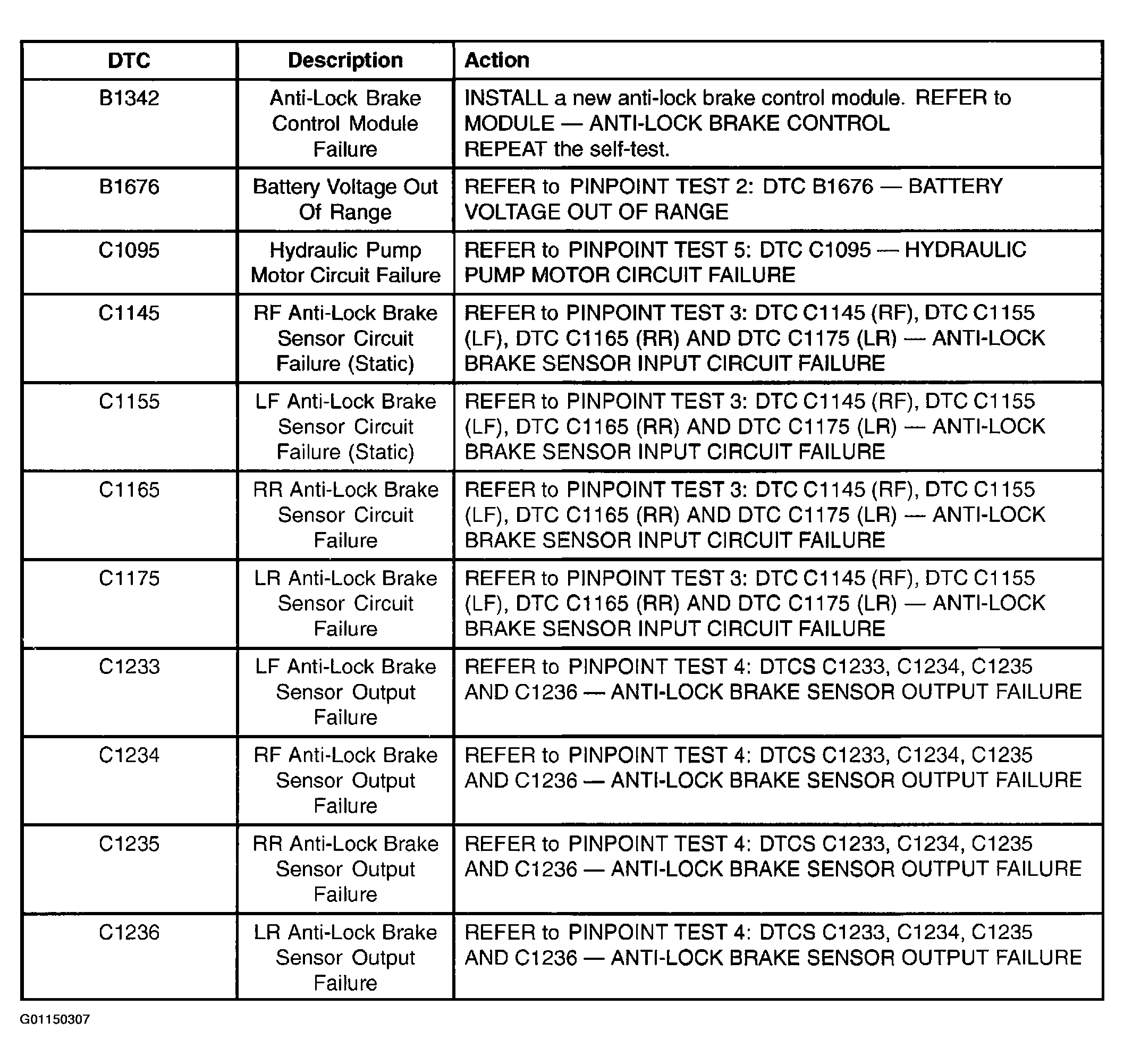

Fig 1: ABS DTC Index (B1342, B1676, C1095, C1145, C1155, C1165, C1175, C1233, C1234, C1235 & C1236)

Courtesy of MAZDA MOTORS CORP.

DIAGNOSTIC TROUBLE CODES (DTC) LIST

DTC	Description	Pinpoint Test
NO COMMUNICATION	NO COMMUNICATION WITH THE MODULE - ANTI-LOCK BRAKE CONTROL MODULE	Pinpoint Test 1
B1676	BATTERY VOLTAGE OUT OF RANGE	Pinpoint Test 2
C1145, C1155, C1165, C1175	ANTI-LOCK BRAKE SENSOR INPUT CIRCUIT FAILURE	Pinpoint Test 3
C1233, C1234, C1235, C1236	ANTI-LOCK BRAKE SENSOR OUTPUT FAILURE	Pinpoint Test 4
C1095	HYDRAULIC PUMP MOTOR CIRCUIT FAILURE	Pinpoint Test 5
NO DTCS	YELLOW ABS LIGHT ALWAYS ON	Pinpoint Test 6
