Camber Adjustment
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

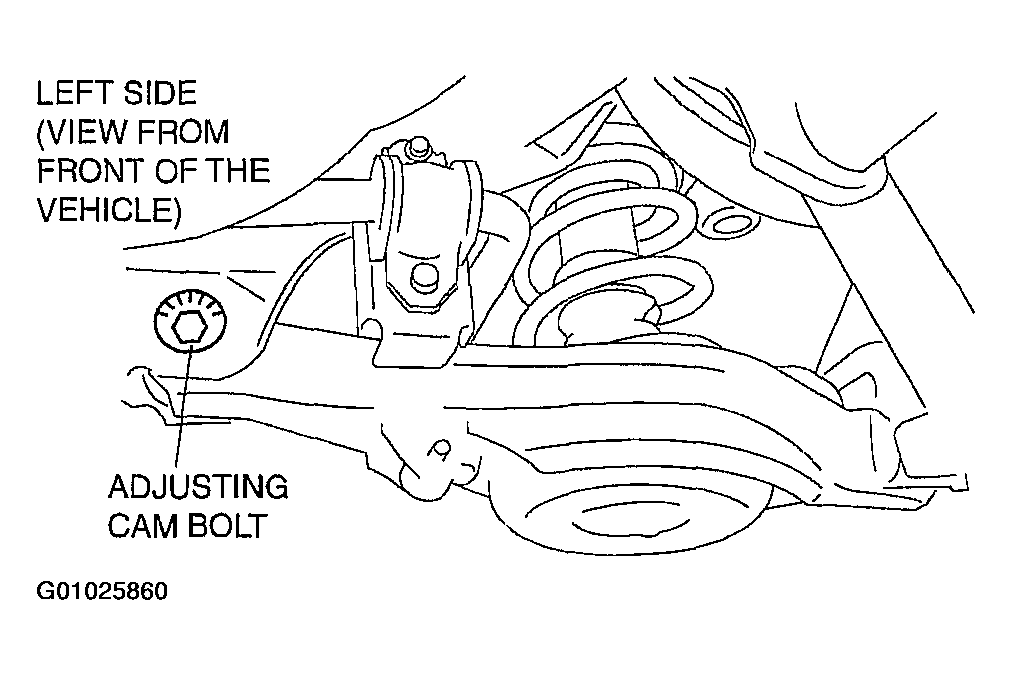

- Loosen the cam nut on the lower arm.
- Turn the adjusting cam bolt to provide the correct camber angles as indicated.
- Tighten the cam nut.
Tightening torque
86.2-116.6 N.m {8.79-11.88 kgf.m, 63.58-85.99 ft.lbf}
