Section 488 (Dynamic Stability Control System)
>>
Dynamic Stability Control Location Index
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Dynamic Stability Control Location Index
WARNING:
This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

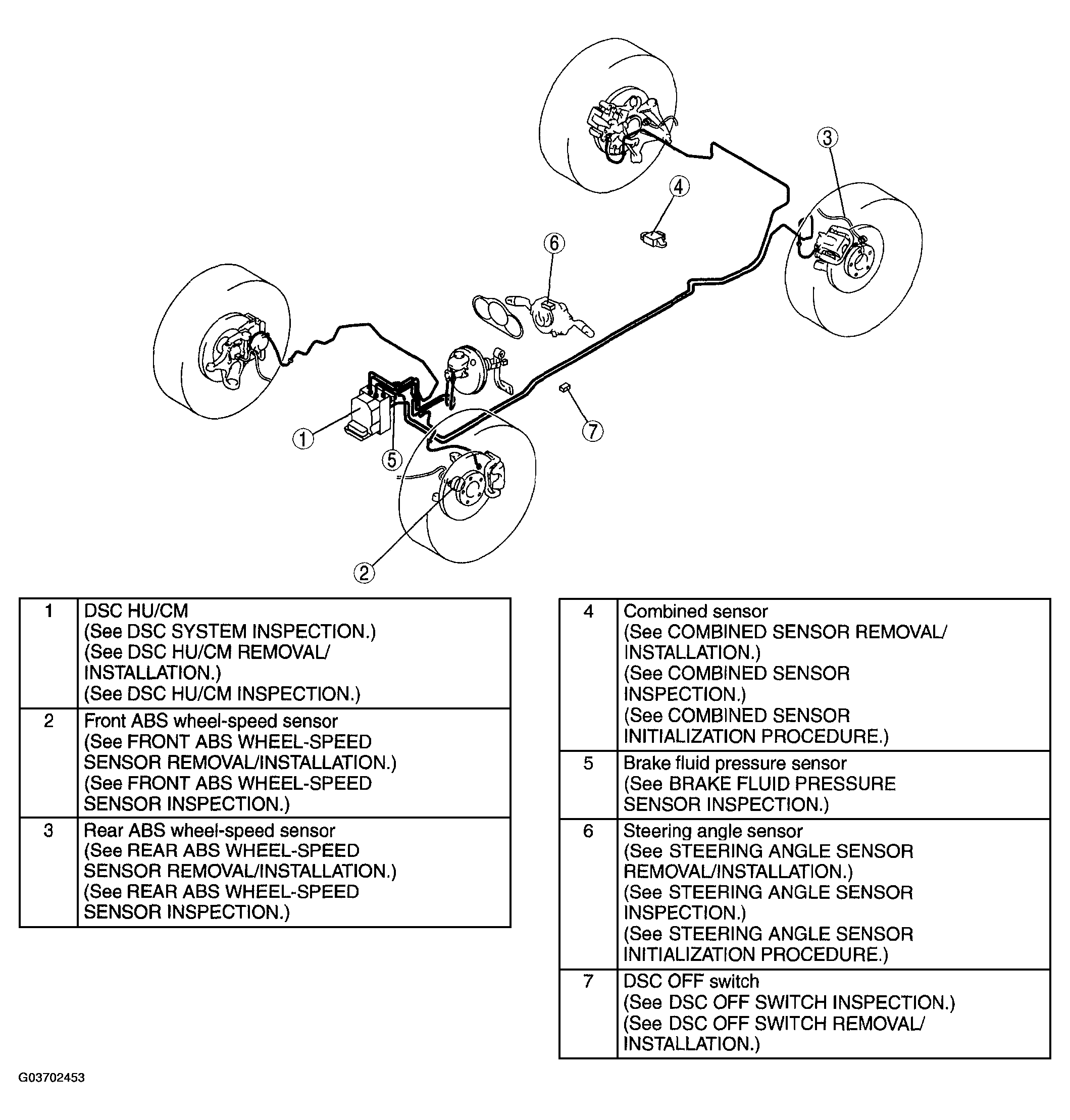

Fig 1: Identifying Dynamic Stability Control Location Index
Courtesy of MAZDA MOTORS CORP.
