Camber Adjustment (Front): MPV

Raise and support front of vehicle. Replace existing upper strut-to-knuckle bolt with camber adjuster bolt. See Fig 1 . Adjust camber by turning adjuster bolt to specification. See WHEEL ALIGNMENT SPECIFICATIONS  table.

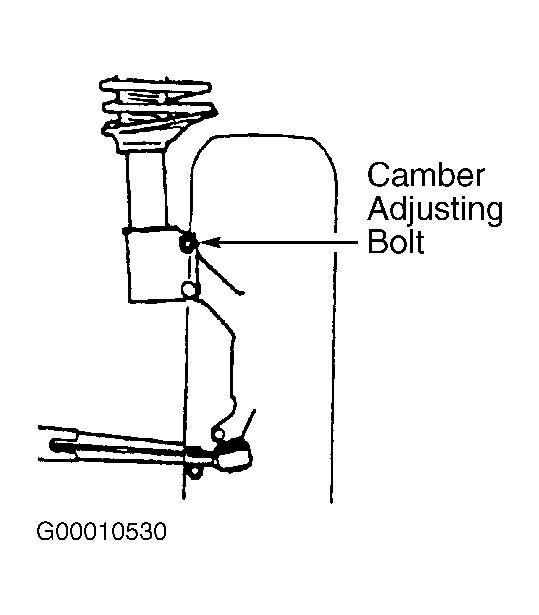

Fig 1: Adjusting Camber (MPV)

Courtesy of MAZDA MOTORS CORP.
