Caster Adjustment: MPV

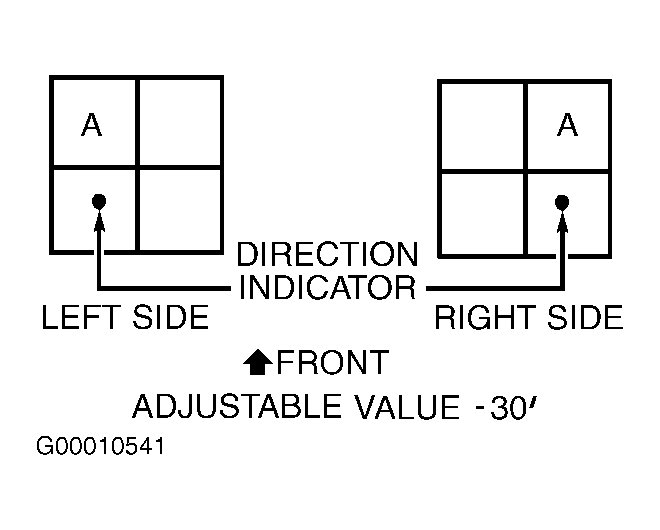

Raise and support front of vehicle. Remove upper strut-to-body nuts. Push strut mounting block downward, and turn to position "A". See Fig 1 . DO NOT turn to any other position or caster and camber will be out of specification. Reinstall and tighten nuts to specification. See TORQUE SPECIFICATIONS .
