Transaxle Range Switch

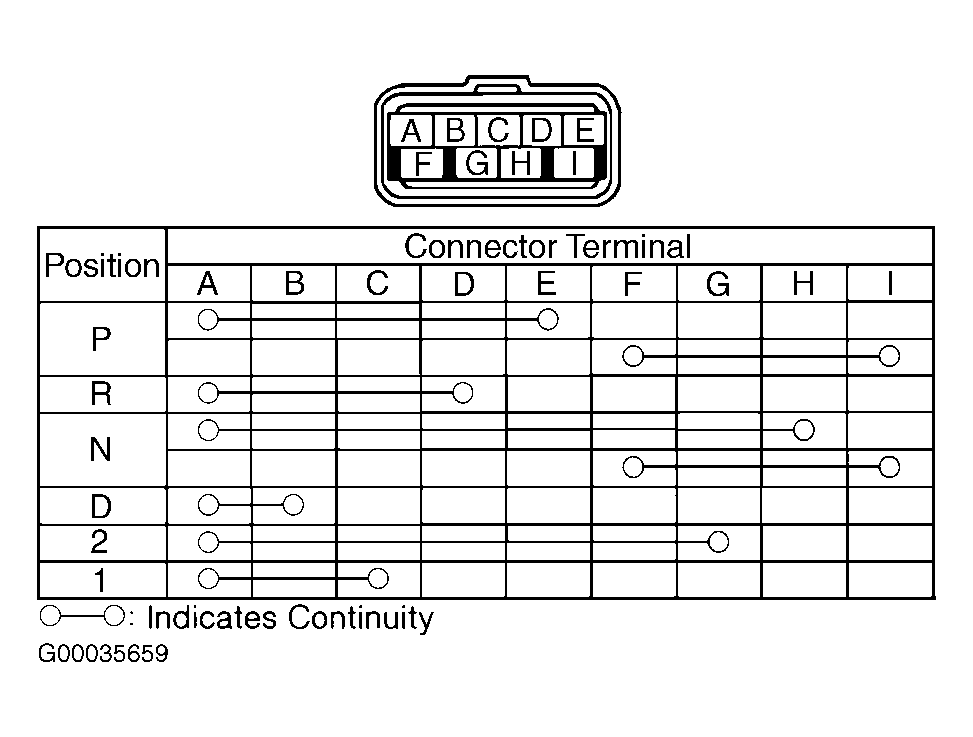

Check for starter operation with ignition switch in START position and selector lever in "P" and "N" position only. Ensure back-up lights illuminate with ignition in ON position and selector lever in "R" position. If any problems are found, disconnect TR switch connector and check for continuity between specified terminals. See Fig 1. If continuity is not as specified, replace TR switch.
