Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Hydraulic Unit/Control Module (ABS HU/CM) | At left rear corner of engine compartment. |

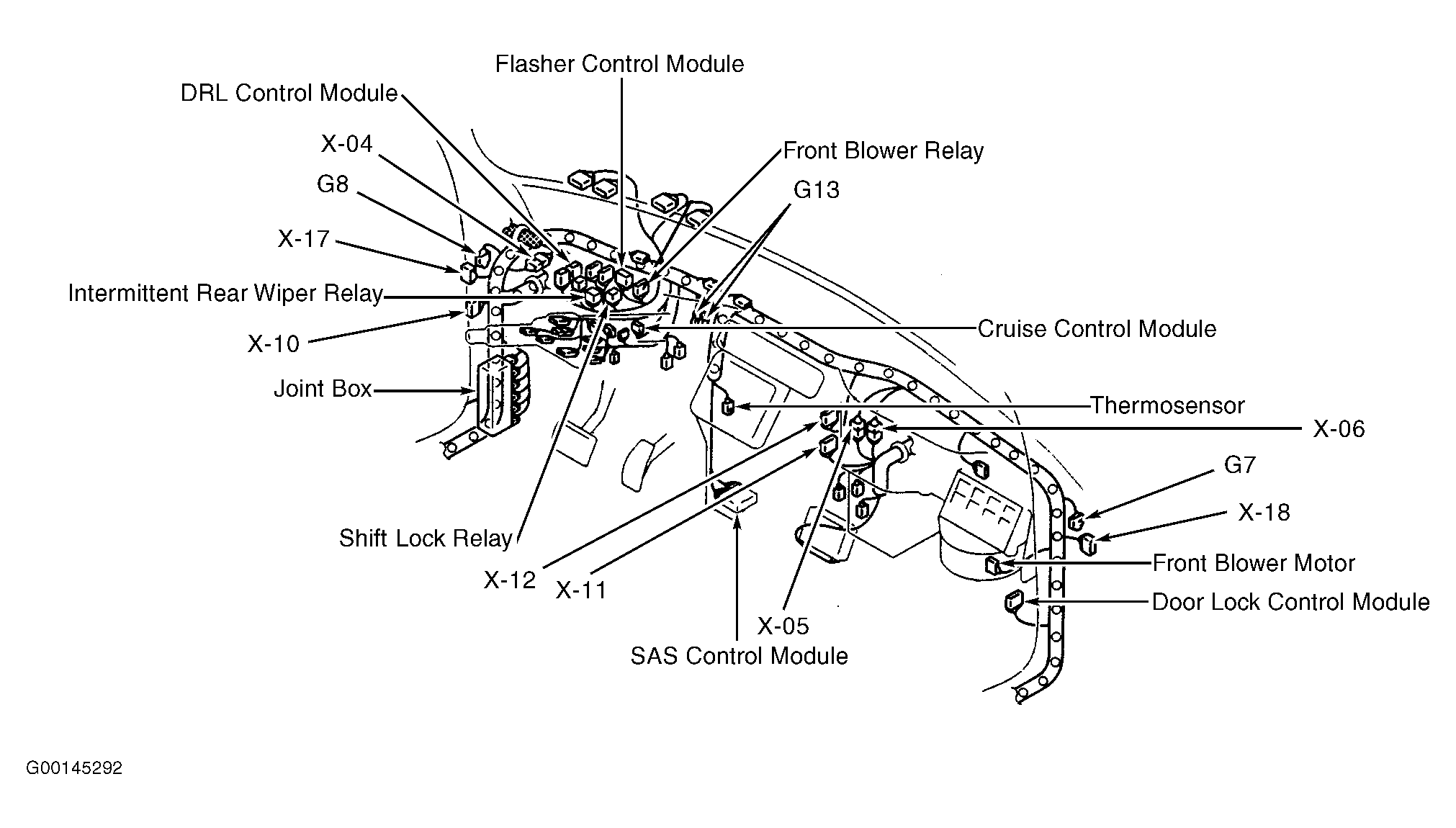

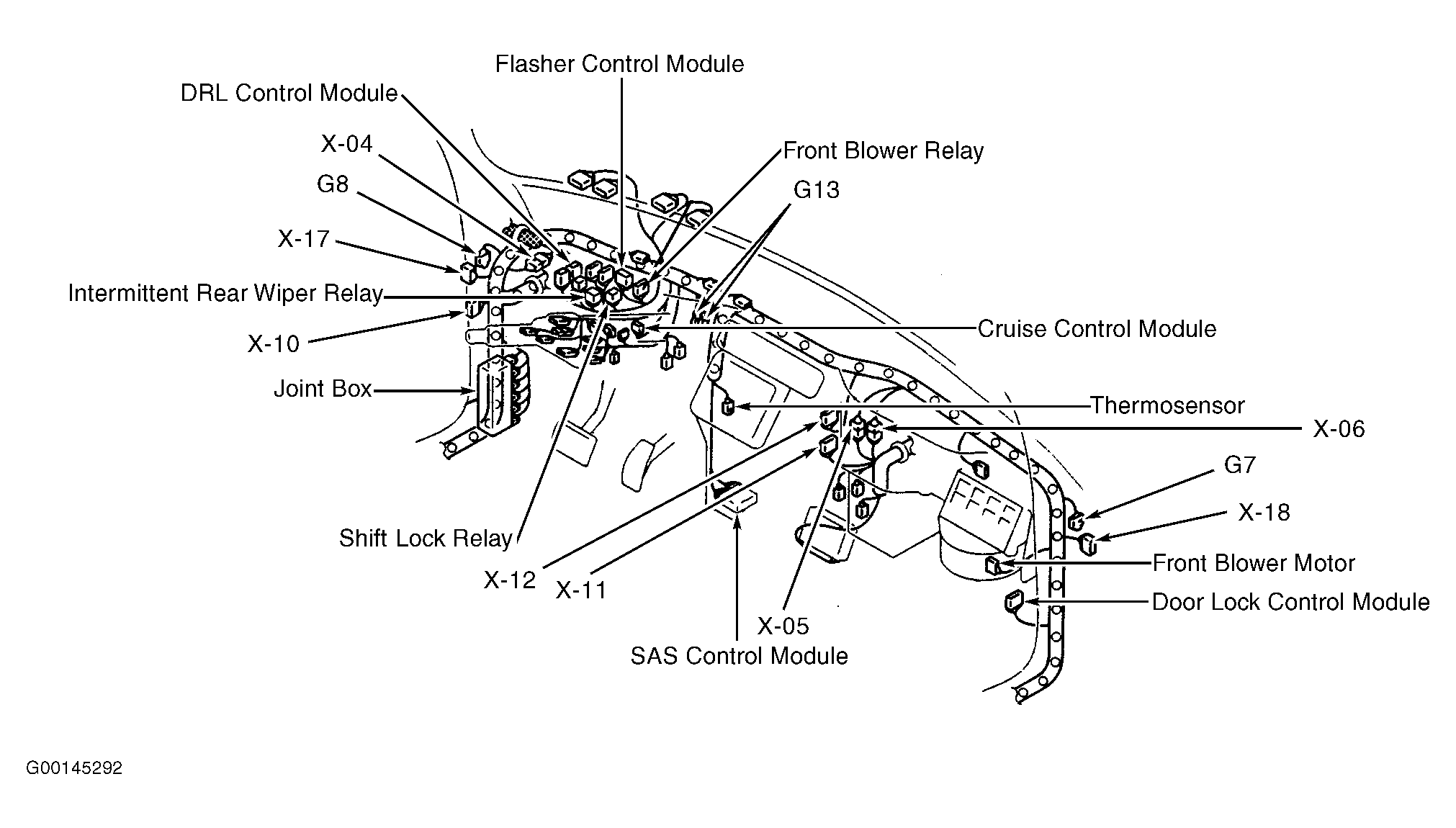

| Cruise Control Module | Behind left side of dash. See Figure . |
| Door Lock Control Module | Behind right side of dash. See Figure . |
| DRL Control Module | Behind left side of dash. See Figure . |
| Immobilizer Unit | Behind left side of dash. |

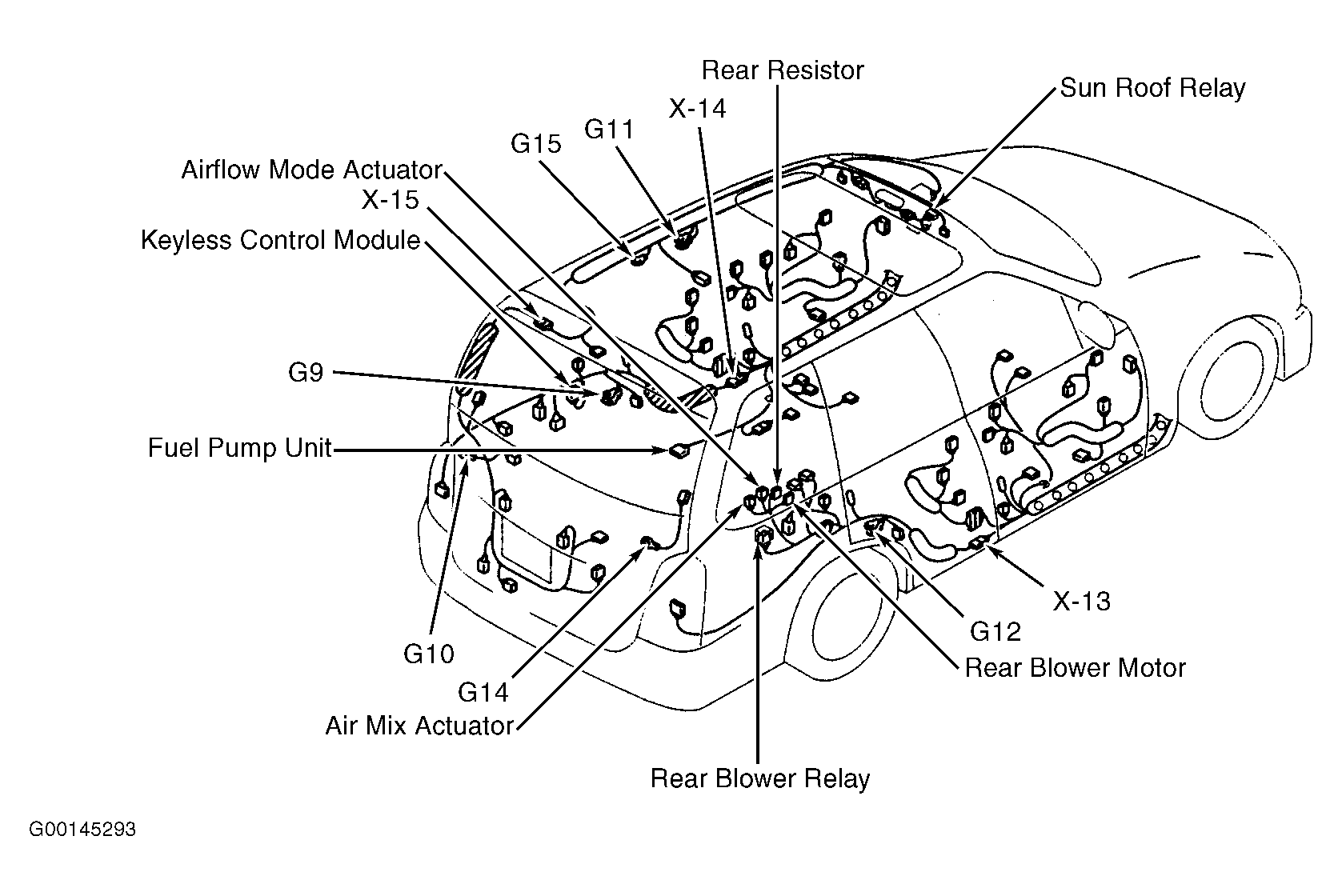

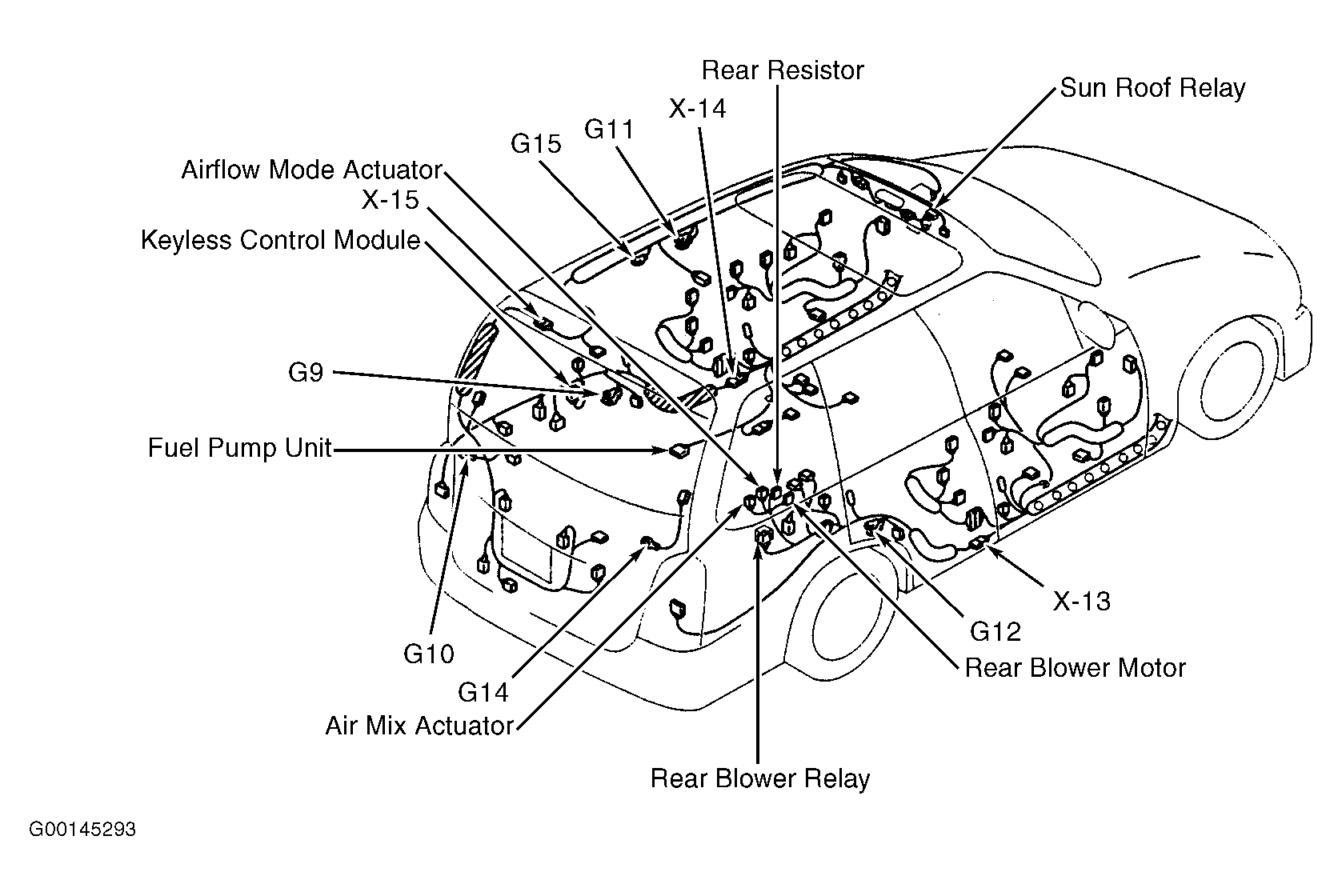

| Keyless Control Module | At left rear side of vehicle. See Figure . |
| Powertrain Control Module | Below center of dash. |
| SAS Control Module | At lower center of dash. See Figure . |
| Theft Deterrent Control Module | Behind left side of dash. |
