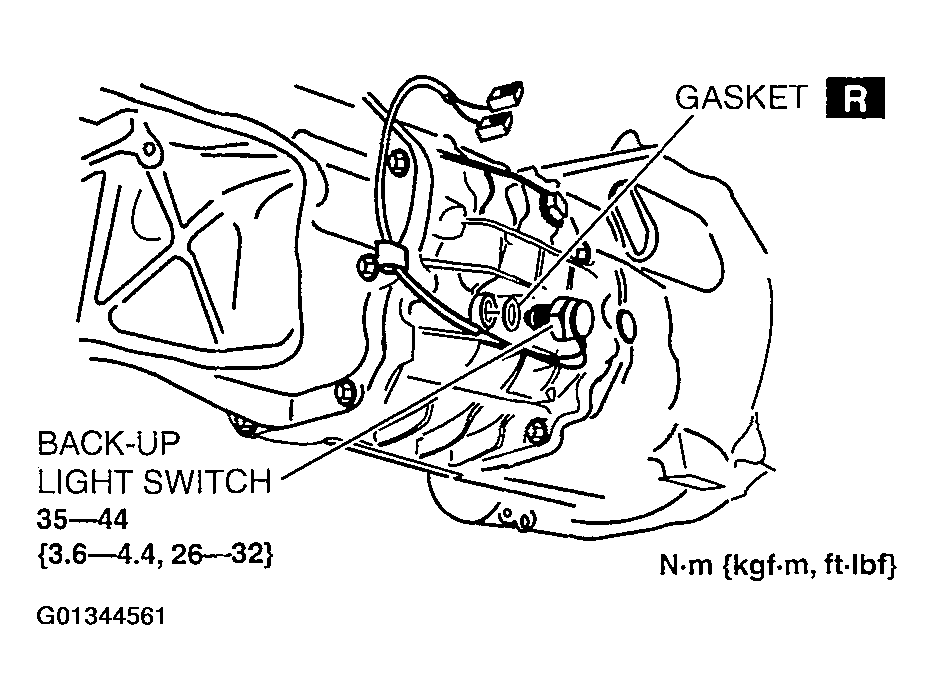

Back-Up Light Switch Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Disconnect the back-up light switch connector and remove the back-up light switch.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
