Headlight Leveling Switch Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the headlight leveling switch. (See HEADLIGHT LEVELING SWITCH REMOVAL NOTE .)
  3. Disconnect the connector.
  4. Install in the reverse order of removal.

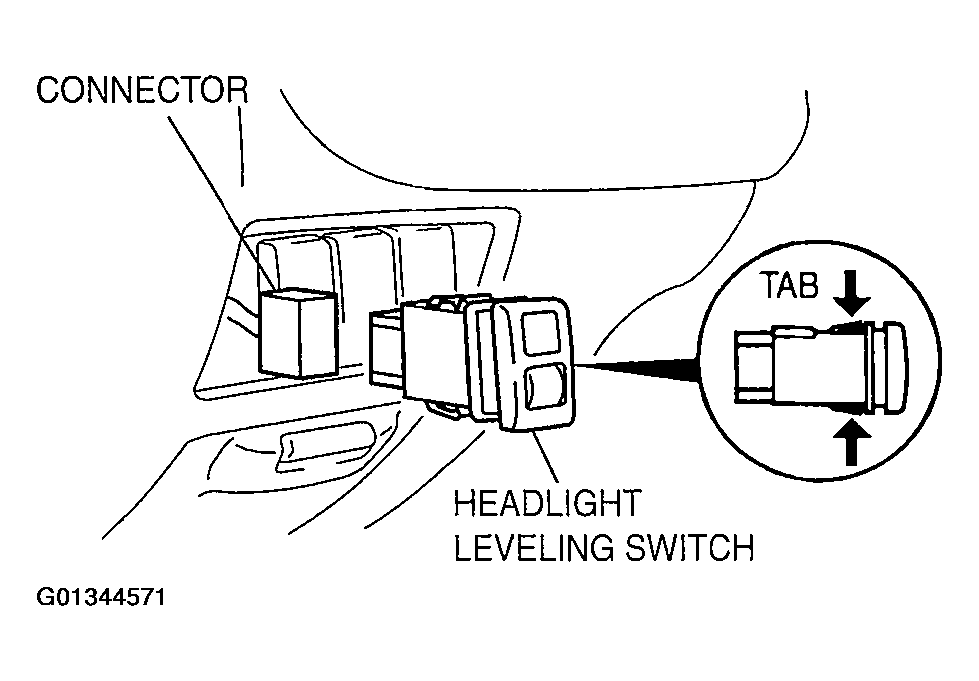

    Fig 1: Removing/Installing Headlight Leveling Switch
    G01344571Courtesy of MAZDA MOTORS CORP.
