Light Switch Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
- Remove the ignition key illumination (See IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION .)
- Disconnect the connector.

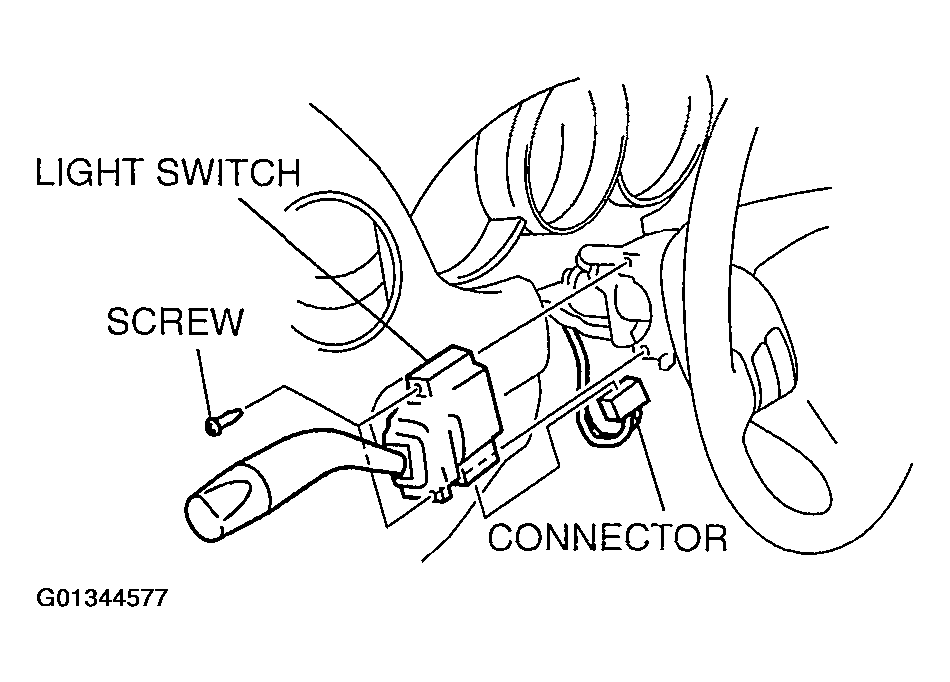

- Remove the screws and then remove the light switch.
- Install in the reverse order of removal.
