Map Light Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION .)
Verify that the continuity between the map light terminals is as indicated in the figure. See Fig 1.
- If not as indicated, replace the map light.

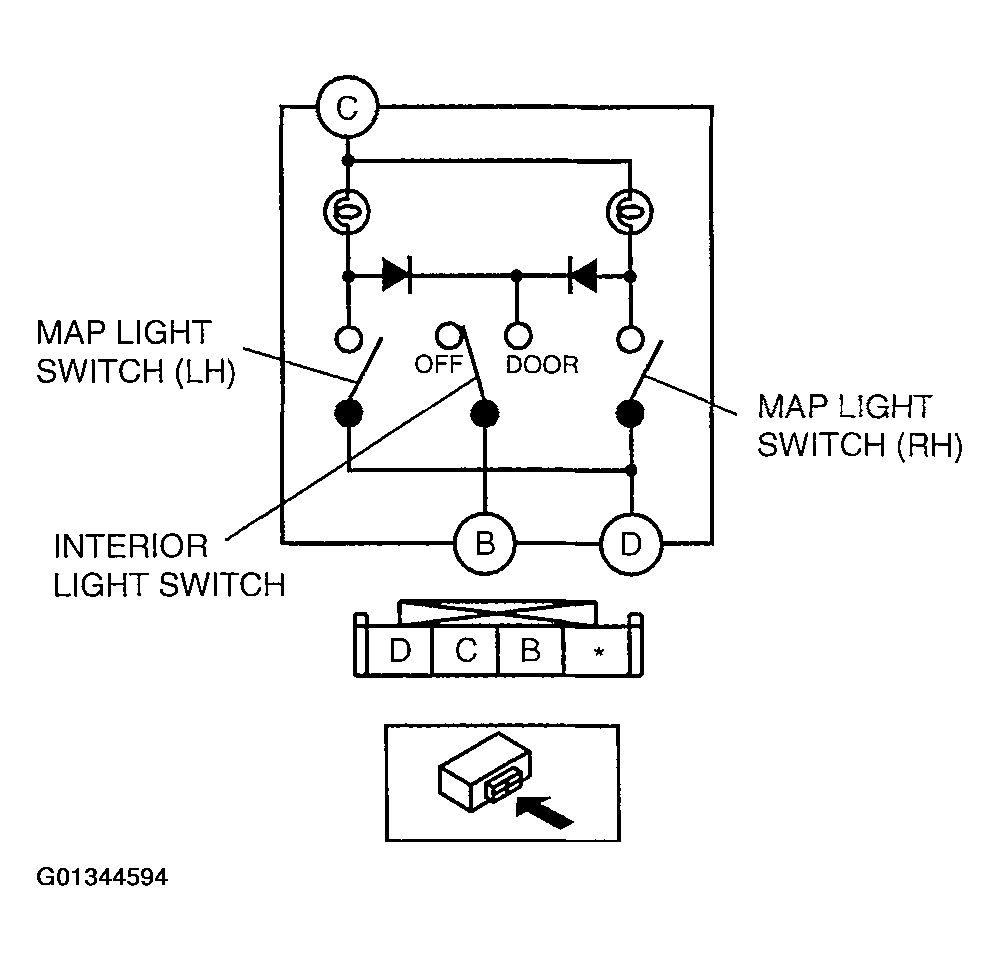

Fig 1: Inspecting Map Light Switch Continuity
Courtesy of MAZDA MOTORS CORP.

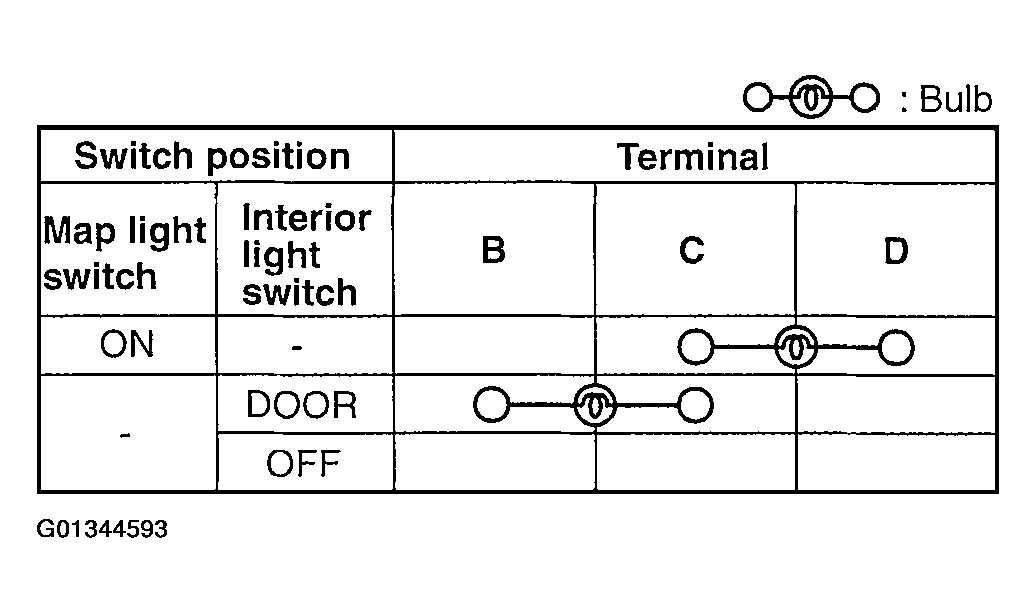

Fig 2: Identifying Map Light Switch Terminals
Courtesy of MAZDA MOTORS CORP.
